EK3 Ergonomic Testing Kit

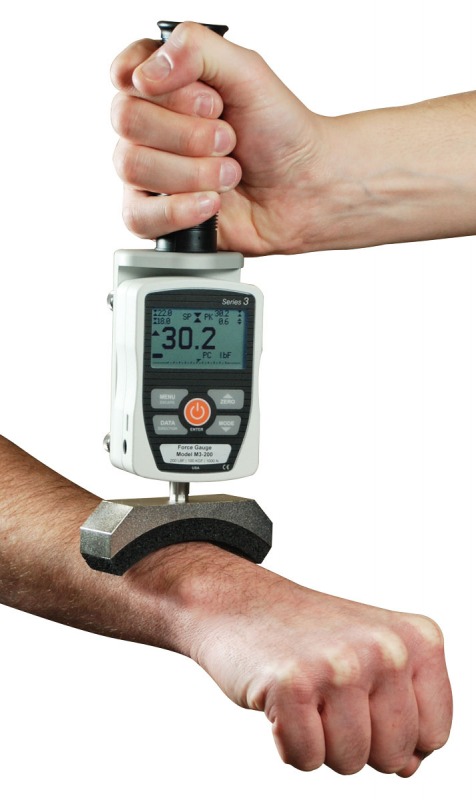

Made in the USAThe series EK3 ergonomics kits are developed for a wide range of applications such as work place design, ergonomic studies and medical applications like physical therapy.
For example to test the force needed to open a fire safety door, open or close a drawer and the force needed to lift or push something.

The kit is based on the compact Series 3 Digital Force Gauge and comes in a 500, 1000 and 2500 N force range version.
The device is equipped with a rechargeable battery, a large backlit display and comes with MESUR® Lite data acquisition software with USB cable.

In the kit you can find a number of attachments that can be used for a variety of compression or tension tests.

Mark-10 Digital Force Gauges are versatile instruments, in general they are combined with additional equipment to a purposely build system to perform the required tasks.

We are happy to assist you in finding the most suitable configuration for your needs. Please contact us for more information.


Features
  • High-speed 2,000 Hz sampling rate
  • USB data output of continuous or individual data points
  • Ultra compact size
  • Large backlit graphic display
  • Programmable set points with pass/fail indicators
  • Peak readings and set points always displayed
  • 3 selectable units of measurement
  • Configurable audio alarms and key tones
  • Complete kit with attachments
  • Includes NIST Traceable Calibration Cert
  • 3 Year Warranty

Force Ranges - Capacity / Resolution
ModelLBKGN
EK3-100100 / 0.150 / 0,05500 / 0,5
EK3-200200 / 0.2100 / 0,11000 / 1
EK3-500500 / 0.5250 / 0,22500 / 2

Display

Display


Complete Kit

The EK3 ergonomic testing kit is sold as a complete kit including:

  • M3-100 Force gauge, 500 N (EK3-100)
  • M3-200 Force gauge, 1000 N (EK3-200)
  • M3-500 Force gauge, 2500 N (EK3-500)
  • 08-1022 AC adapter body with US, EU, UK, or AUS prong
  • AC1118 Battery (inside the gauge)
  • AC1111 USB cable, type micro B to A
  • 4x 10-1023 Thumb screw, #6-32 X ½
  • 10-1021 Hex jam nut, #10-32 (EK3-100)
  • 10-1108 Hex jam nut, 5/16-18 (EK3-200/500)
  • AC1003 Double handle grip for Series 3/2
  • AC1003-1 Single handle grip for Series 3/2
  • G1019 Padded attachment, square
  • G1020 Padded attachment, rectangular
  • G1021 Padded attachment, curved
  • G1029 Flat attachment, #10-32F (EK3-100)
  • G1036 Flat attachment, 5/16-18F (EK3-200/500)
  • G1112 Padded attachment, circular
  • 12-1032 Carrying case, large
  • NIST-Traceable calibration certificate


Accessories

Mesurgauge / Mesurgauge plus Load & Travel Analysis Software


  • Sends data from a force or torque gauge and travel display to a PC for further analysis

More details

Mesurgauge / Mesurgauge plus Load & Travel Analysis Software 126514

Cic-Force Calibration Force Gauge


  • Easy planning of calibration
  • Short turnaround
  • Exclusively in accordance with Deutscher Kalibrierdienst (DKD) working standards, class F1; calibration-no: 19026 - 07

More details

Cic-Force Calibration Force Gauge 127037

Video


Specifications
Accuracy±0,3% of full scale ±1 digit
Sampling rate2.000 Hz
PowerAC or rechargeable battery.
Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery LifeBacklight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement unitslbF, kgF, N
USB OutputConfigurable up to 115.200 baud.
Configurable SettingsDigital filters, USB output settings, backlight, automatic shutoff, key tones, audio alarms, default settings, calibration
Safe overload200% of full scale (display shows “OVER” at 110% and above)
Weight force gaugeM3-100: 0,3 kg [0,7 lb]
M3-200 – M3-500: 0,4 kg [0,9 lb]
Environmental requirements:0 - 40°C [40 – 100°F], max. 96% humidity, non-condensing
Warranty3 years

Related Products

Series E Series E - ergonomic force gauge for compression and traction


  • Data memory for 5000 measured values - measured values can be stored manually or continuously with up to 7000 Hz
  • Measures compressive and tensile force peak values
  • Statistical functions for stored measured values

More details

Series E Series E - ergonomic force gauge for compression and traction

Series EKM5 Myometer kit


  • 1,000 N force capacity
  • Measures real time, average, and peak pull and push forces
  • Accuracy of ±0.1% of full scale

More details

Series EKM5 Myometer kit

Downloads

Ergonomics Force Gauges Comparison Chart
 EK3 kit (Series-3)EKE kit (Series E)EKM5 Myometer (Series-5)
Accuracy±0.3%±0.2% ±0.1%
Sampling rate2000 Hz7000 Hz7000 Hz
Units of measurementlbF, kgF, NlbF, ozF, kgF, N, kNlbF, ozF, kgF, N, kN
Data outputsUSBUSBUSB, RS-232, Mitutoyo, analog
Averaging mode-YesYes
On-board data memory & statistics-Yes up to 5000 readingsYes 1.000 readings, with output
Continuous data capture-YesYes
Accessory mountingTraditional mounting threadsClick-LockTM TechnologyTraditional mounting threads
Password protection-YesYes
Available accessories:---
- Single handle gripYesYes (in professional kit)Option
- Double handle gripYesYes (both kits)Option
- Padded attachment, curvedYesYes (both kits)Option
- Padded attachment, flatYesYes (both kits)Option
- Padded attachment, squareYesYes (in professional kit)Option
- Padded attachment, circular-Yes (in professional kit)-
- Hook-Yes (both kits)-
- Chain / hook assembly-Yes (in professional kit)-
- Pistol grip-Yes (in professional kit)Option
Myometer kit-OptionYes
MESUR-Lite software includedYesYesYes
