RX-DD-MS Digital Multi-Scale Durometer Test Kit


Made in the USACheckline Europe introduces the RD-DD-MS Digital Multi-Scale Durometer Test Kit.

The RD-MS1-DD3 is ideal for the technician that must perform hardness tests on a variety of non-metallic materials.

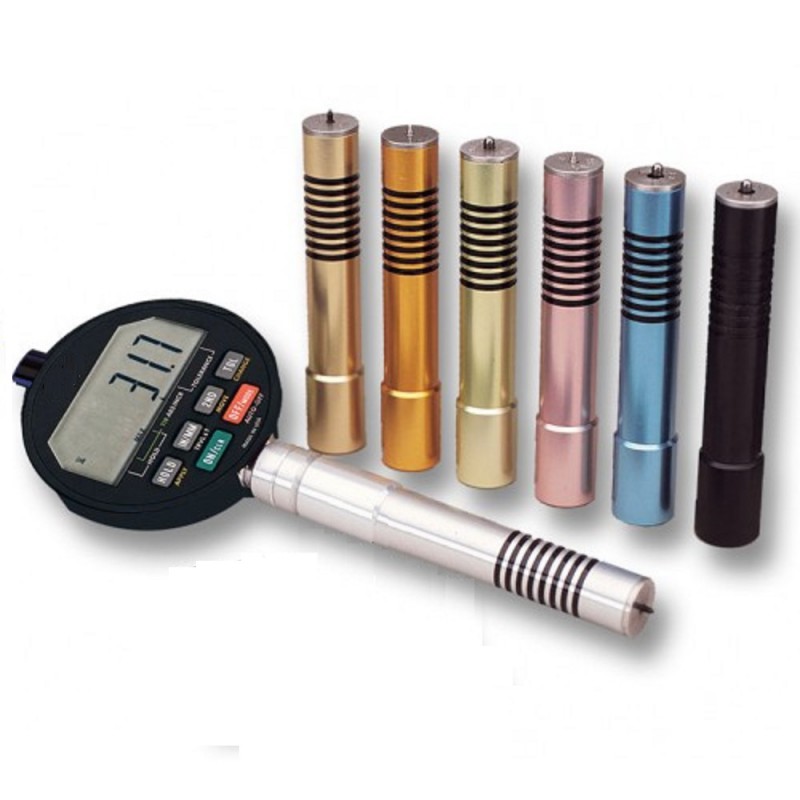

The Multi-Scale base kit consists of a RD-DD3-A (shore A) durometer, and your choice of one or more color-coded barrel adapters.
Available are:

  • type B barrel addapter
  • type C barrel adapter
  • type D barrel adapter
  • type DO barrel adapter
  • type OO barrel adapter
  • type OOO barrel adapter


Changing scales is accomplished by unscrewing one barrel and replacing it with another - no supplementary calibration or adjustments are necessary.

A test block, calibrated to the selected scale is also included. The block allows the user to perform quick functional checks on the instrument.

The indicator and barrels are calibrated to the ASTM-D2240 and DIN 53505 standard for durometer hardness testers.

All RX-DD-MS models are supplied with a NIST traceable calibration certificate.



Features
  • Includes NIST-Traceable Calibration Certificate
  • For the technician that must perform hardness tests on various types of non-metallic materials
  • Conforms to ASTM D 2240 and DIN 53505
  • The Multi-Scale base kit consists of a Model RD-DD3 type A scale durometer.
  • Color-coded barrel adapters for D, B, C, DO, O, OO, OOO or E scales are sold separately

Related Products

RX-TBK-A Type A Durometer Test Block Kit


  • Enables the user to perform a quick check for proper durometer operation

More details

RX-TBK-A Type A Durometer Test Block Kit

RX-BF 'Big Foot' Durometer Foot Adapter


  • The Big Foot increases the diameter of the foot from 1/2" to 1 3/8" diameter

More details

RX-BF 'Big Foot' Durometer Foot Adapter

RX-DD Digital Durometer


  • Includes NIST-Traceable Calibration Certificate
  • One year warranty
  • Optional Removable Stainless Steel Barrel for Medical and Food Applications

More details

RX-DD Digital Durometer

RX-MS Multi-Scale Durometer


  • NIST Calibration Certificate - Optional

More details

RX-MS Multi-Scale Durometer

RX-SWC -2 Durometer Software


  • Provides a running log of all measurements along with a chart of the data as well as statistical information
  • Includes USB-Cable

More details

RX-SWC -2 Durometer Software

Cic-Duro Durometer Calibration


  • Exclusively NIST-certified testing equipment
  • Possibility to adjust and repair

More details

Cic-Duro Durometer Calibration

Complete Kit
The RD-MS1-DD3 can be delivered as a complete kit including the Multi-Scale Durometer Type A and all barrel adapters (except type OOO).

It is also possible to compose your own kit. The Multi-Scale Durometer Type A has to be included in this kit and a selection of the barrel adapters can be made.

The kit will also be delivered with a test block.

Optional:
- NIST traceable certificates

- RX-DIN-FA adapter



Accessories

RX-DIN-FA ASTM to DIN 53505 Adapter for RX durometers


  • Special attachment gives you two gauges in one model.
    With attached, the gauge confirms to DIN 55305 norm.
    When taken off, the gauge is conform ASTM D2240.

More details

RX-DIN-FA ASTM to DIN 53505 Adapter for RX durometers 126159

Durometer Test Stands

durometer test stands We offer a complete line of durometer test stands. The stand, when used in conjunction with a Durometer, eliminates operator error sometimes associated with hand-held durometer testing. Our stands feature a load weight for the proper testing pressure as noted in ASTM D2240, and a quick-lock column for easy adjustment. Click here for more info on Durometer Test Stands.

Specifications
Measuring Range
0 - 100 units
Accuracy*
±1 durometer unit (A,B,C,D,E,O,DO)
±2 durometer units (OO,OOO)
±4 durometer units (M)
Dimensions
2.25" x 6.125"H
* Note
per ASTM D 2240-05, Sect 9.3: It is accepted that durometer readings below 20 or above 90 are not considered reliable. It is suggested that readings in these ranges be omitted.

Buy Now
Products

Product name
Price
Quantity
RX-DD-MS-A-D-OO Multi-Scale Durometer Kit, with Type A,D,OO Barrels
€ 2.254,00
RX-DD-MS-KIT Multi-Scale Durometer Kit, with Type A,B,C,D,DO,O,OO,OOO Barrels
€ 5.210,00

Accessories

Product name
Price
Quantity
RX-ADAPTER - 220VAC Power Adapter for RX-DD-Series (600mA)
€ 25,00
RX-DIN-FA - ASTM to DIN 53505 foot adapter
€ 131,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
