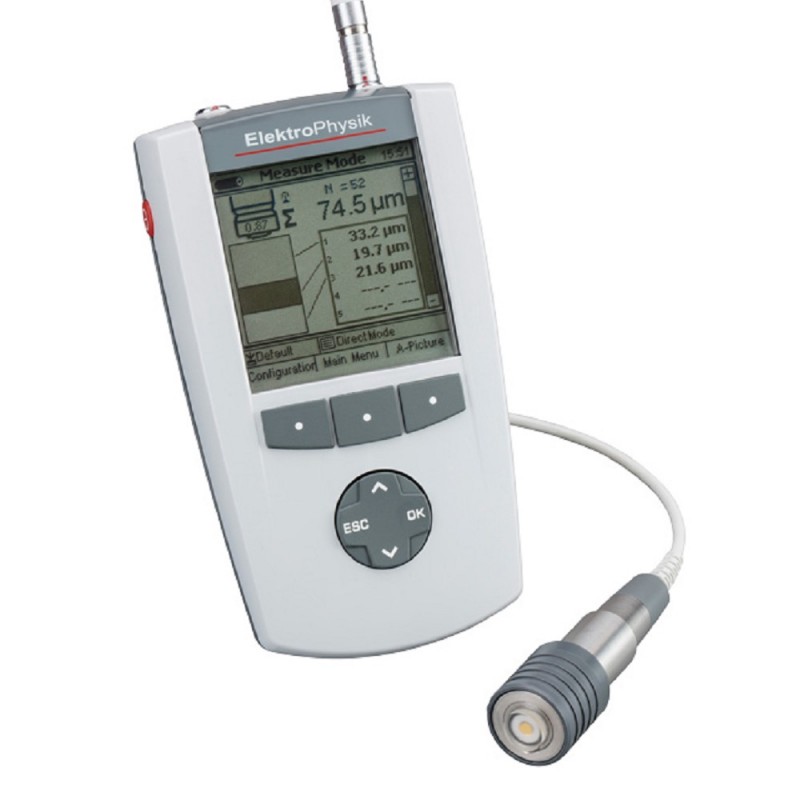

QuintSonic-T Coating Thickness Gauge
Important Note:
The QuintSonic Thickness Gauge has been discontinued and replaced by the QuintSonic-T. All specifications and pricing shown below refer to the current model.
The QuintSonic-T is an advanced ultrasonic coating thickness gauge designed for precise, non-destructive measurement of single and multi-layer coating systems. It is capable of measuring up to eight individual coating layers in a single operation, making it suitable for complex coating structures in laboratory and industrial inspection environments.
The instrument supports measurement of polymer coatings such as paints, varnishes and synthetic materials, as well as glass, ceramic and metallic coatings on a wide range of substrates. In addition to coating measurement, the QuintSonic-T can also be used for wall thickness measurement.
Key Features:
- Multi-layer ultrasonic measurement: Measures up to eight coating layers in a single measurement cycle
- Ultrasonic A-scan visualisation: Displays the ultrasonic signal and measurement parameters simultaneously on screen
- Sensor-integrated signal processing: 32-bit digital signal processing (SIDSP®) integrated directly in the sensor
- Touch-screen operation: Intuitive user interface on an industrial tablet for fast parameter adjustment
- Integrated data handling: Structured measurement data with on-device report generation(PDF) and export to Excel
Key Benefits:
- Accurate measurement of complex coating systems: Enables reliable analysis of multi-layer coatings without damaging the sample
- High inspection efficiency: Fast measurement cycle and immediate signal evaluation reduce inspection time
- Clear result interpretation: Simultaneous display of A-scan and parameters improves measurement confidence
- Suitable for harsh environments: Rugged design for industrial and field use
Contact us for technical advice, availability, or pricing. Our specialists will help you select the most suitable coating thickness solution for your application.
Features
- Measurement principle: Ultrasonic reflection method in accordance with DIN EN ISO 2808, method 10.
- Layer capability: Measurement of up to eight individual coating layers in one operation.
- Signal processing: Sensor-integrated 32-bit digital signal processing (SIDSP®).
- Display and control: Industrial touch-screen tablet with A-scan visualisation.
- Environmental protection: IP67 protection and MIL-STD-810G compliance.
- Data interfaces: Bluetooth, WiFi and SD card.
The QuintSonic-T ultrasonic coating thickness gauge is provided as a complete kit, which includes:
- QuintSonic SIDSP® sensor
- SIDSP® sensor cable
- Industrial tablet with evaluation software
- Tablet stand
- Operating manual (German / English)
- Coupling gel, 100 ml
- Distilled water (couplant), 100 ml
- Single-layer reference standard for gauge verification
- Plastic carrying case
Positector 200 Coating Thickness Gauge
- USB/Serial/IR Ports for downloading to a PC, printer or data collector
- Solvent, acid, oil, water and dust resistant - meets or exceeds IP5X
More details
Specifications
| Measuring principle: | Ultrasonic pulse run-time method (DIN EN ISO 2808, method 10). |
| Measurement range, resolution and accuracy: | Layer 1: Range up to 356 µm, resolution 0.25 µm, accuracy ±0.25 µm. Layer 2: Range up to 890 µm, resolution 0.5 µm, accuracy ±0.5 µm. Layer 3: Range up to 1,900 µm, resolution 1 µm, accuracy ±1 µm. Layer 4: Range up to 3,900 µm, resolution 2 µm, accuracy ±2 µm. Layer 5: Range up to 7,500 µm, resolution 4 µm, accuracy ±4 µm. (Values calculated at an ultrasonic velocity of 2,375 m/s.) |
| Minimum layer thickness: | Approx. 10 µm, depending on ultrasonic velocity. |
| Number of layers: | Up to 8 layers in a single operation. |
| Measurement and evaluation time: | Approx. 3 seconds. |
| Measuring area: | Ø 5 mm. |
| Contact area: | Ø 11 mm. |
| Minimum curvature radius: | Convex: ≥ 50 mm Concave: Not applicable. |
| Measurement Units: | µm, mm, mils. |
| Calibration: | Sound velocity calibration for up to 8 layers. |
| Statistical functions: | Number of values, minimum, maximum, mean, standard deviation, coefficient of variation, block statistics, histogram and trend diagram. |
| Interfaces: | Bluetooth, WiFi, SD card. |
| Power Supply: | Integrated rechargeable battery, 12,000 mAh. |
| Operating Temperature: | +5 to +50 °C. |
| Storage Temperature: | −10 a +50 °C. |
| Display: | Industrial tablet with large-format touch screen and A-scan visualisation. |
| Weight: | Approx. 1.1 kg |
