Shimpo Attachments




FG-M10TEN7 Heavy-Duty Tensile Grip

FG-M10TEN7 Heavy-Duty Tensile Grip
  • Heavy-Duty Tensile Grip
  • Manually tightened jaw faces can accept samples 1.25” (31.75 mm) wide and .25” (6.35 mm) thick. Contact faces are serrated hardened tool steel.

FG-M6FPG Grips fine and medium gauge wire, ribbon, tapes

FG-M6FPG Grips fine and medium gauge wire, ribbon, tapes
  • Perfect for testing fine and medium gauge wire, ribbon, tape and paper. Two jaw widths and load capacities are available; both can handle material thickness up to .04" (1 mm)

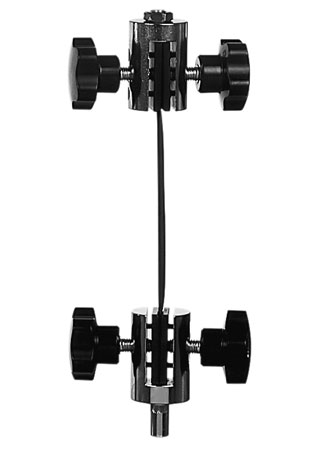

FG-M6PIN Grips fine wires and filaments

FG-M6PIN Grips fine wires and filaments
  • Perfect for testing fine and medium gauge wire, ribbon, tape and paper. Two jaw widths and load capacities are available; both can handle material thickness up to .04" (1 mm)

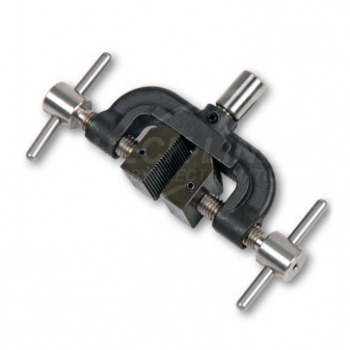

FG-M6FTG20U Fat Chuck Tensile Grip

FG-M6FTG20U Fat Chuck Tensile Grip
  • Each serrated gripping face is .79" (20 mm) square and can accept samples up to .79" (20 mm) thick.
  • Capacity: 100 lb / 50 Kg / 500 N

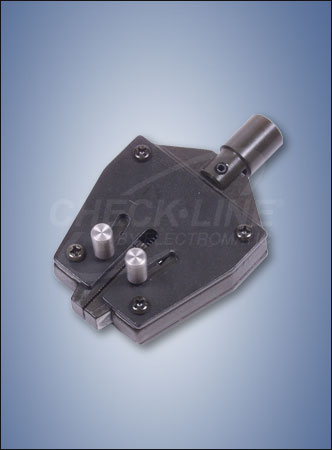

FG-M6WTER100 Wire Terminal Test Fixture

FG-M6WTER100 Wire Terminal Test Fixture
  • Wire Terminal Test Fixture
  • Capacity:100 lb / 50 Kg / 500 N
  • Designed specifically to test the strength of wire/terminal connections. The upper grip consists of a self-aligning wheel with nine equally spaced slots of various terminal shank sizes; an eccentrically mounted, self-tightening bottom grip secures the wire on the other end.

G Series Thread Adapters & Couplings

G Series Thread Adapters & Couplings
  • Thread Adapters & Couplings
  • Adapters, Male - Female, Male - Male, different threads available
  • Capacity: 500 N / 1000 N / 2500 N / 5000 N

FG-COMP Compression Plate

FG-COMP Compression Plate
  • Compression Plates
  • 50 and 100MM steel compression plates for top load testing, large sample compression or crush testing, with polished finish. 50mm & 100mm plates available in M6 or M10 threading.

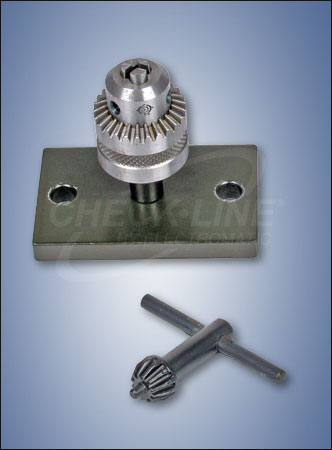

FG-M6JAC5U Jacob’s Chuck Grip

FG-M6JAC5U Jacob’s Chuck Grip
  • Jacob’s Chuck Grip
  • Designed for testing low gauge wire and rigid rods; accepts material diameters from .02" (.05 mm) to .20" (5 mm).

FG-CLV Clevis Grip

FG-CLV Clevis Grip
  • Clevis Grip
  • Odd shaped parts, punched samples or tension springs are easily secured and tested. Concave shape to pins assures centering under load. Throat clearance with pin is .5" (12.7 mm) and can easily accept samples up to .375" (9.65 mm) wide.

FG-FLM Film Grip

FG-FLM Film Grip
  • Film Grip
  • These heavy-duty, spring-loaded grips have serrated jaws for handling samples up to .39" (100 mm) thick and .79"(20 mm) or 1.97" (50 mm) wide.

FG-SP Spool Grip

FG-SP Spool Grip
  • Spool Grip
  • Ideal for hard-to-hold items like thread, filaments, etc. The sample is wrapped around the spool, anchored by friction.

FG-TAP Tape Grip

FG-TAP Tape Grip
  • Tape Grip
  • Self tightening lever action makes this fixture perfect for testing rubber, tape and paper.

FG-TWN Cord and Twine Grip

FG-TWN Cord and Twine Grip
  • Cord and Twine Grip
  • A unique figure 8 wrap of specimen assures a center break and non-locking pins permit quick installation and release. Throat and pin clearance is .375" (9.65 mm) wide with the throat width being .5" (1.7 mm)

FG-WDG Wedge Grip

FG-WDG Wedge Grip
  • Wedge Grip
  • Two capacities for lighter and heavier loads; spring-loaded jaws automatically close on the specimen and tighten as tension is applied. Ideal for testing wires, strip material and plastic tape or films.

FG-FAB Fabric Grip

FG-FAB Fabric Grip
  • Fabric Grip
  • Eccentrically mounted, serrated roller grip allow for self tightening of specimens up to 3" (76.20 mm) wide and .25" (6.4 mm) thick.

FG-M6PUNCTUREST Puncture Attachment

FG-M6PUNCTUREST Puncture Attachment
  • Puncture Test Attachment
  • For testing of Construction materials
  • Ripeness of fruit & vegetables

FG-GRM6FLM12 Film Grip

FG-GRM6FLM12 Film Grip
  • Film Style Grip
  • Capacity 50 Kg
