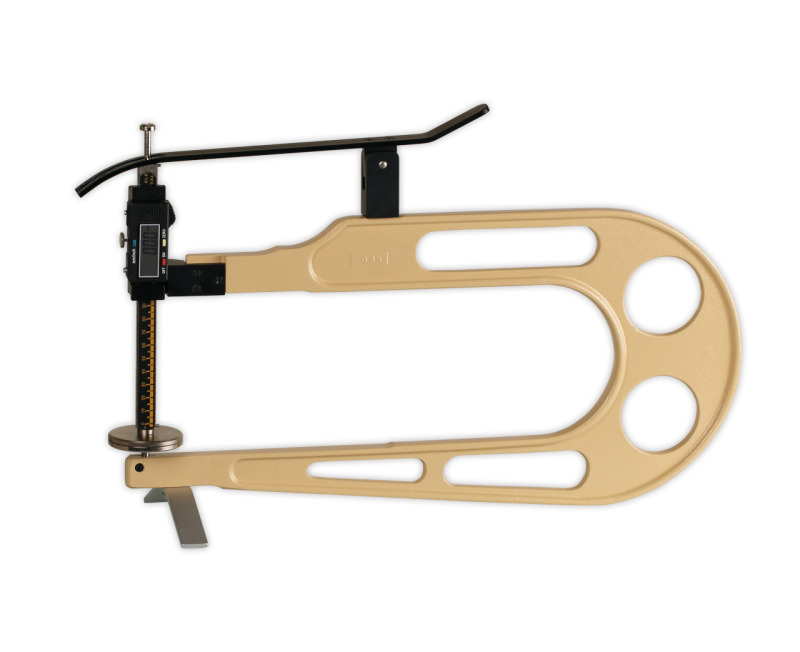

TG-75-350 Digital Thickness Gauge
The TG-75-350 digital thickness gauge is engineered for applications requiring greater measuring capacity and deeper sample access. Suitable for leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood and plastics, it delivers a stable 0.01 mm resolution across the full 0–75 mm range. Its extended 350 mm jaw depth allows precise measurement of large or wide-format materials while maintaining consistent accuracy.
Key Features:
- RS-232 Output: Enables direct data transfer to PCs, printers or quality-control systems.
- Spring-Force Measurement (2 N): Uniform measuring pressure ideal for sensitive or flexible materials.
- Zero Setting Button: Fast calibration before each measurement cycle.
- Selectable Units: Display readings in millimetres or inches.
Key Benefits:
- Designed for Thicker Materials: Extended 0–75 mm range covers applications beyond standard gauges.
- Deep Jaw Access: 350 mm reach allows measurement of large, wide or difficult-to-access samples.
- High Accuracy & Repeatability: Self-closing mechanism ensures stable, consistent readings.
- Industrial Versatility: Suitable for QC labs, production environments and incoming-goods inspection.
Contact us for assistance selecting the right configuration or to request a quotation.
Features
- Lever-Operated Opening: Easy sample handling with automatic closing for consistent pressure.
- Calibration Certificate Included: The gauge is delivered verified and ready for use.
| Model | Range | Resolution | Jaw Depth |
|---|---|---|---|
| TG-50-200 | 0 - 50 mm | 0.01 mm | 200 mm |
| TG-50-300 | 0 - 50 mm | 0.01 mm | 300 mm |
| TG-75-350 | 0 - 75 mm | 0.01 mm | 350 mm |
| TG-100-400 | 0 - 100 mm | 0.01 mm | 400 mm |
To place the order, please specify the desired feeler, for example: TG-75-350-B for a gauge with feeler B. This means that NOT all feelers are included in the package!
 |
Feeler: A For hard leather, glass, metal sheets. |
 |
Feeler: B For wood, rubber, soft leather, foil, etc. |
 |
Feeler: C For soft rubber, felt, fleece. |
 |
Feeler: D For rubber rings, round materials. |
 |
Feeler: E For paper, cardboard, chipboard and fiberboard, and plywood. |
 |
Feeler: F For metal sheets, glass, round materials. |
 |
Feeler: G For very rigid materials. |
 |
Feeler: H For foams and insulating materials. |
 |
Feeler: I For very soft foams and insulating materials. |
 |
Feeler: M For rubber sheets, felt, soft materials. |
Specifications
| Resolution: | 0.01 mm |
| Measuring range: | 75 mm |
| Jaw depth: | 350 mm |
| Measuring pressure: | 2 N |
| Measuring principle: | Self closing |
| Feeler shape: | A/B/C/D/E/F/G/H/I/M |
| Display: | LCD 7 mm high |
| Measuring system: | Sylvac |
| Weight, net (gross): | 1250 g (1300 g) |
Buy Now
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
