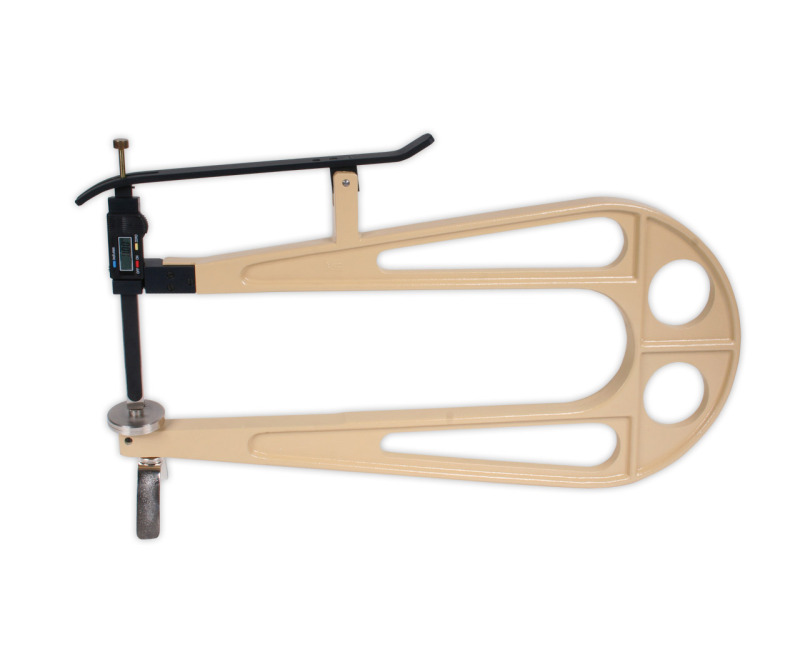

TG-100-400 Digital Thickness Gauge
The TG-100-400 digital thickness gauge is designed for applications requiring an extended measuring range and consistent accuracy across thicker materials. Suitable for leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood and plastics, it maintains a stable 0.01 mm resolution throughout the full 0–100 mm measuring span. Its self-closing mechanism ensures uniform pressure and repeatable results, even on sensitive or flexible samples.
Key Features:
- RS-232 Output: Enables efficient data transfer to PCs, printers or QC software.
- Spring-Force Measurement: Provides consistent measuring pressure for reliable results.
- Zero Setting Button: Quick calibration before each measurement sequence.
- Selectable Units: Measurement in millimetres or inches.
Key Benefits:
- Large Measuring Capacity: Extended 0–100 mm range for applications involving thicker or multilayer materials.
- Stable, Repeatable Results: Self-closing mechanism guarantees uniform force on every measurement.
- Robust Construction: Designed for continuous use in laboratory, production and incoming-inspection environments.
- Easy Operation: Lever-assisted opening simplifies handling during repetitive testing.
Contact us for assistance selecting the right configuration or to request a quotation.
Features
- Lever-Operated Opening: Easy sample handling with automatic closing for consistent pressure.
- Calibration Certificate Included: The gauge is delivered verified and ready for use.
| Model | Range | Resolution | Jaw Depth |
|---|---|---|---|
| TG-50-200 | 0 - 50 mm | 0.01 mm | 200 mm |
| TG-50-300 | 0 - 50 mm | 0.01 mm | 300 mm |
| TG-75-350 | 0 - 75 mm | 0.01 mm | 350 mm |
| TG-100-400 | 0 - 100 mm | 0.01 mm | 400 mm |
To place the order, please specify the desired feeler, for example: TG-100-400-B for a gauge with feeler B. This means that NOT all feelers are included in the package!
 |
Feeler: A For hard leather, glass, metal sheets. |
 |
Feeler: B For wood, rubber, soft leather, foil, etc. |
 |
Feeler: C For soft rubber, felt, fleece. |
 |
Feeler: D For rubber rings, round materials. |
 |
Feeler: E For paper, cardboard, chipboard and fiberboard, and plywood. |
 |
Feeler: F For metal sheets, glass, round materials. |
 |
Feeler: G For very rigid materials. |
 |
Feeler: H For foams and insulating materials. |
 |
Feeler: I For very soft foams and insulating materials. |
 |
Feeler: M For rubber sheets, felt, soft materials. |
Specifications
| Resolution: | 0.01 mm |
| Measuring range: | 100 mm |
| Jaw depth: | 400 mm |
| Measuring pressure: | 2 N |
| Measuring principle: | Self closing |
| Feeler shape: | A/B/C/D/E/F/G/H/I/M |
| Display: | LCD 7 mm high |
| Measuring system: | Sylvac |
| Weight, net (gross): | 1400 g (1450 g) |
Buy Now
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
