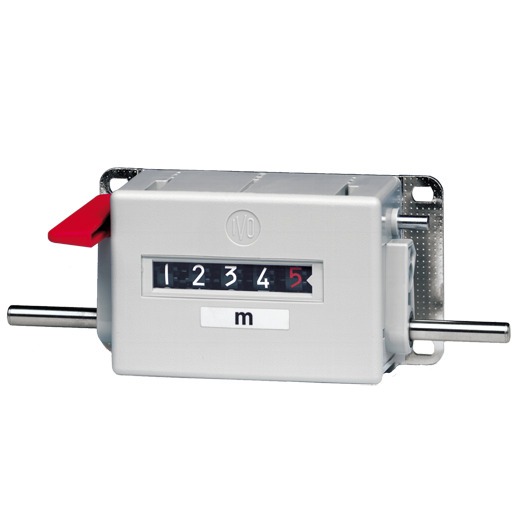

M410 IVO Mechanical Meter Counter
Counter available in various models described below. Features
- Counting in direction of defined rotation (adding).
Substracting in reverse direction. - 5-digit, 9999.95 m/cm
- Max. speed with wheel of 50 cm: 200 m/min. Without measuring wheel: max 3000 digits/min.
Dimensions
If the desired model is not shown in the list of prices, price is on request
Accessories
MR Series 5 IVO Measuring wheels (50 cm circumference)
- 0.5m circumfence
- 5 different lining versions:
- Aluminium, Cross knurl
- Smooth Vulkollan
- Knopped rubber
- Smooth Hytrel
- Grooved Hytrel
- 3 bore size diameters; 7mm, 10mm and 12mm.
More details
Specifications
| Display: | 5-digit, 99 999 |
| Digit size: | Approx. 7 mm high, white on black background |
| Reset: | By pushing the socket lever, mounted on right or left side, user choice |
| Drive shaft: | Projecting on both sides, dia. 7 mm |
| Housing material: | Gray plastic |
| Base plate: | Galvanized steel, 2.5 mm thick |
| Ambient temperature: | 0 ... +60 °C |
| Weight: | Approx. 380 gr |
| Counting mode: | In direction of defined rotat., adding Substracting in reverse direction |
| Measuring range: | 9 999.9 m (decimal in red) |
| Max. speed: | With measuring wheel of 50 cm: max. 200 m/min Without measuring wheel: max. 3000 digits/min |
