TI-25M-MMX Through Paint Ultrasonic Wall Thickness Gauge


Made in the USAThe TI-25M-MMX precisely measures wall thickness of all metals, ceramics, glass and most rigid plastics and the extent of corrosion using ultrasonics. Measurements can be made from a single side!

The TI-25M-MMX has 2 measuring modes: Single Thickness Reading mode which measures the thickness on one point and the Scan mode which measures over a larger measuring area by “dragging” the probe: the minimum thickness encountered during the scan will be displayed then.

The probe of the TI-25M-MMX wall thickness gauge is waterproof and can also be submerged in water. It is ideal to use in tough field conditions because the gauge is impact-resistant and environmentally sealed..

Measuring Range:
Pulse-Echo Mode (Pit & Flaw Detection) measures from 0.63 to 152.4 millimeters. If uncoated up to 500mm with T-102-2000 probe.
Echo-Echo Mode (Through Paint & Coatings) measures from 2.54 to 25.4 millimeters (0.1 to 1 inch).


Features
  • Resolution of 0.01 mm (0.001 inch)
  • Simple operator controls virtually eliminate training
  • Ability to measure through paint and eliminate coatings
  • Large, backlit LCD display retains last reading
  • Switch-selected units for inches or mm
  • CE Certified
  • Special-purpose probes are offered for a variety of applications
  • Includes NIST-Traceable Calibration Certificate

Measuring Limits
Minimum Radius for Convex Surfaces Minimum Radius for Convex Surfaces8.89 mm
Minimum Radius for Concave Surfaces76.2 mm
Minimum Radius for Concave SurfacesMinimum Headroom25.4 mm
Minimum Sample DiameterMinimum Sample Diameter3.8 mm
Minimum Substrate Thickness - FMinimum Substrate Thickness - FNA
Minimum Substrate Thickness - NFeNA

Complete Kit
The TI-25M-MMX is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case.

Specifications
Range
Pulse-Echo Mode (Pit & Flaw Detection) measures from 0.63 to 500 millimeters (0.025 to 19.999 inches).
Echo-Echo Mode (Through Paint & Coatings) measures from 2.54 to 25.4 millimeters (0.1 to 1 inch).
Resolution
0.01 mm (.001")
Display
4½ - Digit, 0.5" Backlit LCD
Velocity Range
1250 to 10.000 meters/second (0.0492 to .3937 in./µs.)
Probe
5 MHz, 6.35 mm Diameter (0.25")
Probe Wearface
PEEK (Polyethlethylketone)
Cable
1.2 m (4 ft.) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 15 m. (50 ft.)
Temp. Limits
Ambient:-30 to 50° C (-20 to 120° F)
Material: -20 to 100° C (0 to 200° F)
Special high temperature probes are optionally available
Battery Type
Two AA batteries
Battery Life
200 hours
Weight
196 g (7 ounces)
Size
64 x 114 x 32 mm
(2.5 x 4.5 x 1.25")
Accessories Included
Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
Warranty
Gauge: 5 Years
Probes: 90 Days

Typical Applications
Typical Applications

Model Selection Guide
Selection Guide - Pit & Flaw Detection (Pulse-Echo) Mode
Model Number Maximum Coating Minimum Wall Maximum Wall
All Models 0.50 mm (0.020") 2.54 mm (0.100") 152.4 mm (6.000")
Selection Guide - Thru-Paint (Echo-Echo) Model
Model Number Maximum Coating Minimum Wall Maximum Wall
TI-25M-MMX 1.00mm (0.040") 2.54mm (0.100") 25.4mm (1.000")
TI-25M-MMX-EXT 2.00mm (0.080") 5.08mm (0.200") 127.0mm (5.000")

Download DataComm 2 Software

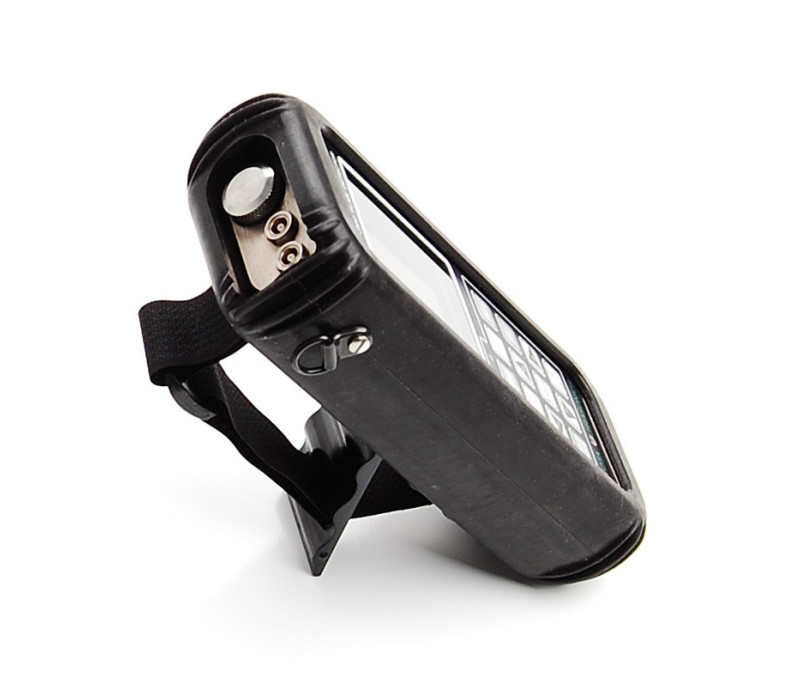

Accessories

TI-SB Steel Test Block with NIST-Traceable Certificate


  • Precision Machined and Finished
  • Includes NIST Report and Test Data

More details

TI-SB Steel Test Block with NIST-Traceable Certificate 125793

TI-SB4 Uncertified Steel Test Block


  • Uncertified Steel Test Block
  • For convenient confirmation of thickness gauge calibration

More details

TI-SB4 Uncertified Steel Test Block 126277

TICC-M Protective Holder for Ultrasonic Gauges


  • Constructed from heavy duty Cordura Nylon
  • Belt loop included
  • Includes wrist & shoulder straps

More details

TICC-M Protective Holder for Ultrasonic Gauges 125807

CF-AN Coupling Fluid - CF-AN


  • Used to create an ultrasonic coupling between the probe and material to be measured
  • Available in different volumes - 125ml / 250ml / 500ml / 1ltr / 5ltr / 25ltr

More details

CF-AN Coupling Fluid - CF-AN 126455

TI-V-BLOCK Transducer Holder


  • The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas.
    For 3/16" & 1/4" Transducers only.

More details

TI-V-BLOCK Transducer Holder 126200

CF-4H High Temperature Coupling Fluid


  • Temperature Range:
    0° to 600° F
    -18° to 315° C

More details

CF-4H High Temperature Coupling Fluid 126919

CF-4H-950F High Temperature Coupling Fluid


  • Temperature range from 316ºC to 404 ºC

More details

CF-4H-950F High Temperature Coupling Fluid 127149

Cic-Wall | Wall Thickness Gauge Calibration


  • Easy planning of calibration
  • Short turnaround
  • Exclusively in accordance with DIN 55 350 Part 18, § 4.2.2, DIN ISO 8402 Part 1
  • Possibility to adjust and repair

More details

Cic-Wall | Wall Thickness Gauge Calibration 127035

Downloads

Buy Now
Products

Product name
Price
Quantity
TI-25M-MMX Complete kit
€ 1.476,00
TI-25M-MMX-EXT Complete kit
€ 1.476,00
TI-25M-MMX-H High Temp Wall Thickness Gauge
€ 1.581,00

Accessories

Product name
Price
Quantity
TICC-M - Protective holder
€ 60,00
CF-AN - Coupling Fluid - 200ml
€ 15,00
Calibration Certificate - Calibration Inspection Certificate
€ 99,00
V-Block Transducer Holder
€ 189,00
TI-SB4 - Uncertified Steel Testblock
€ 135,00
TI-SB-4H - Steel Test Block
€ 371,00
TI-SB-4L - Steel Test Block
€ 371,00
TI-SB-5L - Certified Steel Test Step Block
€ 371,00

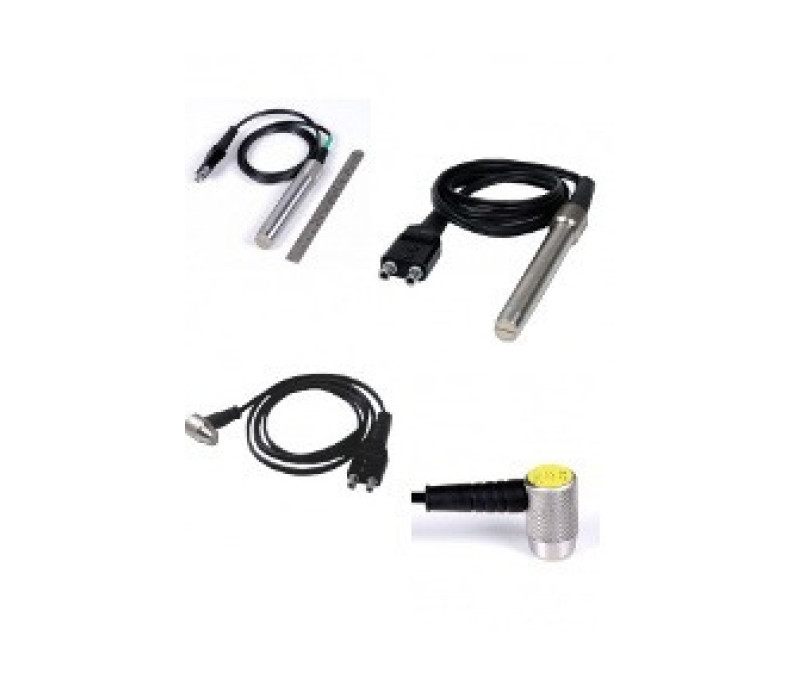

T-102-2700 - 5 MHz MMX Probe 1/
€ 328,00
T-104-9700 - Spare / Replacement Probe for TI-25M-MMX-EXT
€ 344,00
T-104-2700 - 1/2" 5MHz Dual Element Hi Damped Transducer
€ 344,00
T-102-2000 - 5 MHz Probe 1/4"
€ 285,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
