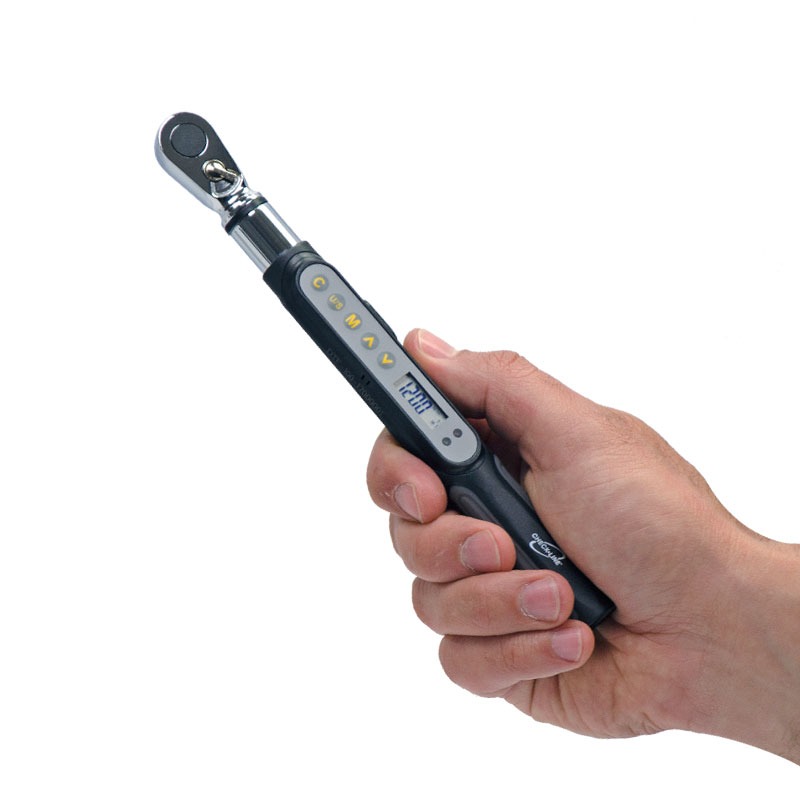

DTF Digital torque wrench with female hex drive


The new Digital Checkline DTF Torque Wrench is ideal for applications which require highest precision.

The DTF torque wrench has a slim design and can be deployed for torque applications in a range of  industries such as the automotive, aerospace and more. Furthermore, its 1/4 "female hex drive with ratchet head make it perfectly suitable for applications in restrained spaces.

Measurements can be made clockwise (CW) or counter clockwise (CCW), while real-time or maximum (peak) measures are visible on the display. A red and green LED combined with a beep sound indicate when the set torque value is displayed and up to 9 setpoints can be programmed.

The DTF exists in 3 versions:
DTF-50: 0,300 - 6,000 N-m
DTF-100: 0,60 - 12,00 N-m
DTF-175: 1,0 - 20,00 N-m


Features
  • Selectable measuring units Nm, lb-in, ft-lb or kg-cm
  • Application in clockwise (CW) and counter clockwise (CCW)
  • 2 operating modes Peak and Track
  • 9 programmable setpoints
  • CE certified
  • Calibration certificate included, calibrated range 20-100% of capacity

Tension Ranges
ModelMeasurement range Resolution
DTF-50 0.300 - 6.000 Nm 0.001 Nm
DTF-100 0.60 - 12.00 Nm 0.01 Nm
DTF-175 1.0 - 20.00 Nm 0.01 Nm
The measured value output on all models ranges from 5 - 100% of the capacity. The guaranteed accuracy of CW ± 2% / CCW ± 3% of the displayed reading is only valid within the calibrated range of 20 - 100%.

Complete Kit

The DTF ist delivered in a complete kit consisting of:

  • DTF torque wrench;
  • 1/4 "outside hex to 1/4" outside square adapter;
  • 1 AAA battery;
  • Operation manual;
  • Calibration certificate;
  • Plastic carrying case.


DTF Torque Wrench Functions

DTF Torque Wrench Functions


Dimensions
Dimensions-DTF


Related Products

DTL-100i Low Range Digital Torque Wrench


  • Displays in-lb, N-m, Kg-cm and ft-lb units (User selectable)
  • CW and CCW operation
  • Peak or Real-Time (track) mode (User Selectable)

More details

DTL-100i Low Range Digital Torque Wrench

TSD Torque Screwdriver


  • Real time & Peak Torque Measurement
  • 9 Programmable Target Torque Setpoints

More details

TSD Torque Screwdriver

Specifications
PrecisionCW ± 2% / CCW ± 3% of displayed reading from 20 - 100% of capacity
Operating modesReal time and maximum
Measurement unitsft-lb, in-lb, N-m, Kg-cm
Head:Ratchet with shift lever
Battery:1 AAA
Operating time:12 hours usage
1 year standby
Operating temperature:-10°C ~ 60°C
Storage temperature:-20°C ~ 70°C
Humidity:Up to 90% relative humidity
Warranty:1 year
Autozero:For zeroing

Buy Now
Products

Product
Price
Quantity
136538
DTF-50 1/4" F Hex Drive Digital Torque Wrench
€ 388,00
136537
DTF-100 1/4" F Hex Drive Digital Torque Wrench
€ 388,00
137282
DTF-175 1/4" F Hex Drive Digital Torque Wrench
€ 388,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
