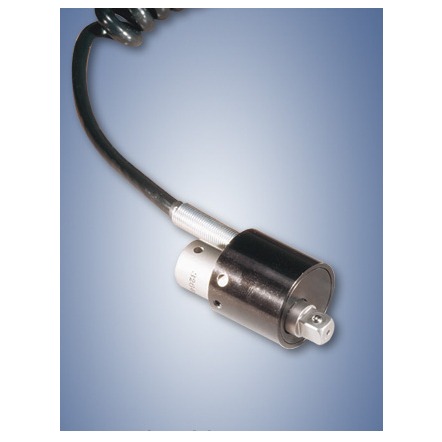

SMX Torque Socket Transducer for space constraints


The SMX is a Torque Socket Transducer to measure the torque force applied and converts any ratchet wrench into a torque sensor. It needs to be connected to the square drive of a wrench and requires PTT or LTT torque display units.


Features
  • Accuracy +/-.25% of full scale
  • Bi-directional
  • Converts any ratchet wrench into a torque sensor
  • Various models that range 2.5 lbf.in to 500 lbf.ft
  • Compact and robust housing
  • Ideal for applications with limited space accessibility

Torque ranges
Lb-in Lb-ft cN-m N-m

ModelRange
SMX25i 2.5 - 25 Lb-in
SMX50i 5 - 50 Lb-in
SMX100i 10 - 100 Lb-in
SMX50F 60 - 600 Lb-in
SMX200F 120 -1200 Lb-in
SMX500F 600 - 6000 Lb-in

Related Products

Wizard Plus PDA Torque & Force Analyzer


  • Easy to use “Windows” and “Pocket PC” software for Torque and Force measurement.
  • Seamless transfer of data, graphs and SPC results to Microsoft Excel.

More details

Wizard Plus PDA Torque & Force Analyzer

Specifications
Rated Output2 mv/v Nominal
Zero Balance± 2% of Rated Output
Safe Overload125% of Rated Output
Excitation (VDC or VAC)10 Recommended, 18 Max.
Bridge Resistance1000 ohms Nominal
Nonlinearity±.2% of Rated Output
Operating Temp.-40 to 180°F (-40 to 82°C)
