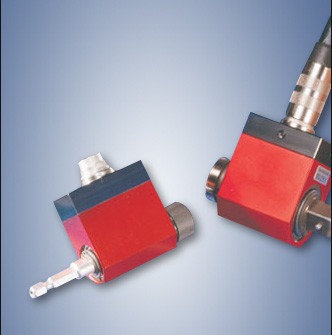

BLRTSX Brushless Rotary Torque Transducer


For use with most hand tools, power tools or rotational measurement applications. Connects between the power tool and the joint for monitoring actual torque being applied from the driver to the fastener.

The Brushless Rotary Transducer has the big advantage that it eliminates the well-known and annoying "brush bounce”. Also incorporated in the sensor is an instant auto-recognition system of the BLRTSX connected to the PTT.


Features

  • Accuracy +/-.25% of full scale.
  • Use with most hand tools, power tools or rotational measurement applications.
  • The common "brush bounce" that plagues the accuracy testing of pulse tools is cured when using a brushless rotary transducer.
  • Connects between the power tool and the joint. Monitors actual torque being applied from the driver to the fastener.
  • Bi-directional

Torque ranges

Oz-in Lb-in Lb-ft cN-m N-m

Model Range
BLRTSX28z-H 10 - 28 Oz-in
BLRTSX70z-H 10 -70 Oz-in
BLRTSX140z-H 25 - 140 Oz-in
BLRTSX18i-H 32 - 128 Oz-in
BLRTSX50i-H 80 - 800 Oz-in
BLRTSX50i 80 - 800 Oz-in
BLRTSX100i-H 160 - 1600 Oz-in
BLRTSX100i 160 - 1600 Oz-in
BLRTSX160i-H 256 - 2560 Oz-in
BLRTSX160i 256 - 2560 Oz-in
BLRTSX18F 384 - 3456 Oz-in
BLRTSX36F 768 - 6912 Oz-in
BLRTSX73F 1536 - 13824 Oz-in
BLRTSX118F 2304 - 22656 Oz-in
BLRTSX184F 3648 - 35328 Oz-in
BLRTSX368F N/A
BLRTSX738F N/A

Related Products

LTT Torque and Angle Analyzer with USB Output


  • Accuracy +/- 0.5% of reading from 20% to 100% of full scale.
  • Provides “EZ-Plug & Play.” Features an instant auto-recognition system of the transducer connected to the LTT.
  • Built-in Tool Tests operation.
  • Stores a total of 2500 data points.
  • Seven units of torque measurements: (ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm). Two units of force measurements: (lbf and kN)
  • Recommended for all hand screwdrivers, wrenches or power tools.
  • "Flash" memory allows upgrades to be done by the user in the field & internet through the USB port.
  • Selection of six operating modes: (Track, Peak, First Peak, Audit, Torque + Angle, and Tool Test).
  • Supplied with NIST-Traceable Certification of Calibration

More details

PTT PTT Torque Analyzer


  • System Accuracy +/- 0.5% of reading from 20% to 100% of full scale
  • Operates with Torque & Force sensors.
  • Provides “EZ-Plug & Play” with Transducers. Features “ARCII” technology, an instant auto-recognition system of the transducer connected to the PTT.
  • Selection of six operating modes: Track, Peak, First Peak, Audit, Torque + Angle, and Tool Test.
  • Two units of force measurements: Ibf and kN
  • Real time graph of torque vs. time using associated PC Windows software.
  • Seven units of torque measurements: (ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm).
  • USB interface to download readings to PC.
  • Recommended for all hand screwdrivers, wrenches or power tools.

More details


Video


Specifications

Output at Rated Capacity
> 6 Nm [53 lbf.in] rated torque 2 mV/V
Interchangeability
Matched for mv/v and shunt calibration +0.3% FS
Nonlinearity
+0.2% FS
Excitation Recommended
10V DC or AC RMS
Bridge Resistance
350 ohms
Usable Temperature Range
41-122 degrees F
Safe Overload
125% of rated output
