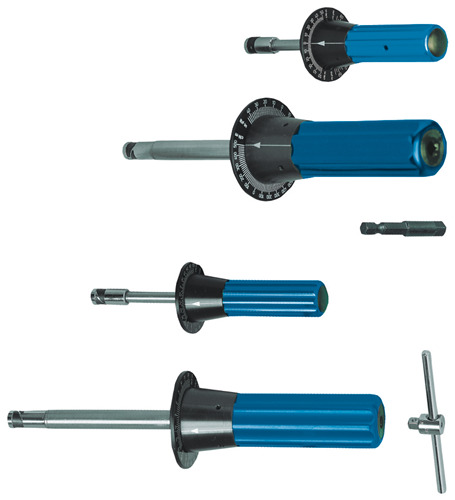

TT Dial Measuring Torque Screwdriver


The TT Torque Screwdriver is designed for precision assembly and quality control applications.

A dial indicator displays real time application and removal torque. Memory system holds maximum torque reached.


Features

  • The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789:2003 (+/- 6% of indicated reading).
  • Flat tension spring is used to give the best linear characteristics in both directions.
  • Quality constructed with stainless steel shafts, attractive colored aluminum handles and sturdy dials for maximum tool life.
  • Dual American and S.I. graduated scales.

Measuring Range

Range
Graduation
Model American S.I. American S.I. Drive
TT50 14 – 70 ozf.in 10 – 50 cN.m 2 ozf.in 2 cN.m 1/4” F/Hex
TT100 28 – 140 ozf.in 20 – 100 cN.m 5 ozf.in 5 cN.m 1/4” F/Hex
TT250 4 – 20 in.lbs 50 – 250 cN.m 0.5 lbf.in 10 cN.m 1/4” F/Hex
TT500 8 – 40 in.lbs 100 – 500 cN.m 1 lbf.in 20 cN.m 1/4” F/Hex
The precision torque demanded for assembling surgical instruments
was critical for a medical manufacturer.
The "TT" dial measuring screwdrivers provided the solution.

Designed to handle critical electronics assembly tasks, the operator
uses a "TT" dial measuring screwdriver to tighten the fastener.

Dimensions

Dimensions Torque Screwdrivers TT


Buy Now

Products


Product name
Price
Quantity
TT50FH Dial Screwdriver 2 N-cm (1/4 F/Hex)
€ 180,00

TT100FH Dial Screwdriver 5 N-cm (1/4 F/Hex)
€ 180,00

TT250FH Dial Screwdriver 10 N-cm (1/4 F/Hex)
€ 183,00

TT500FH Dial Screwdriver 20 N-cm (1/4 F/Hex)
€ 183,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
