RTG-ISO23529 Rubber Thickness Gauge according to ISO 23529

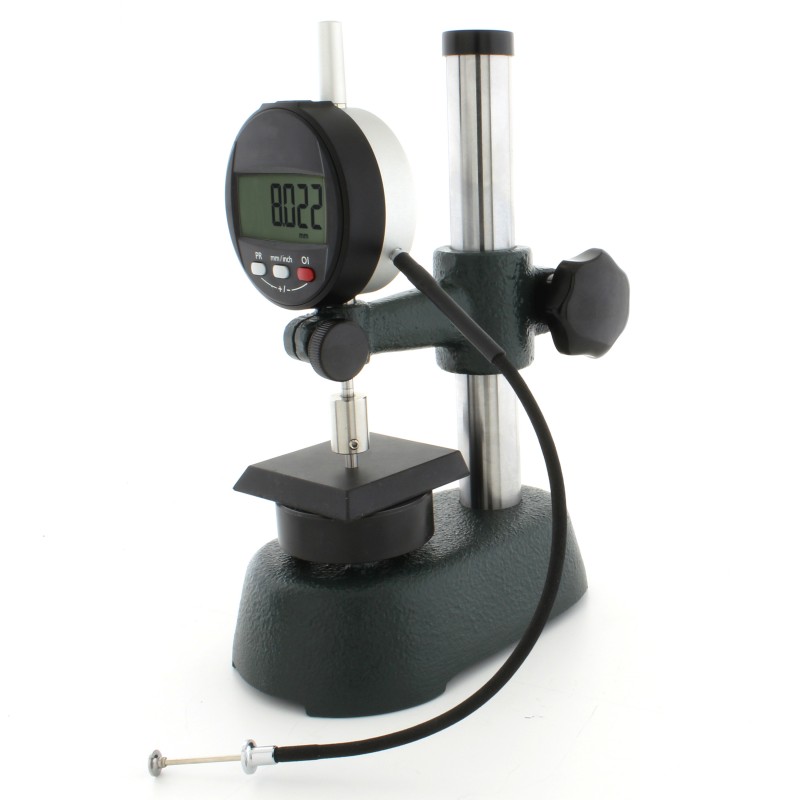

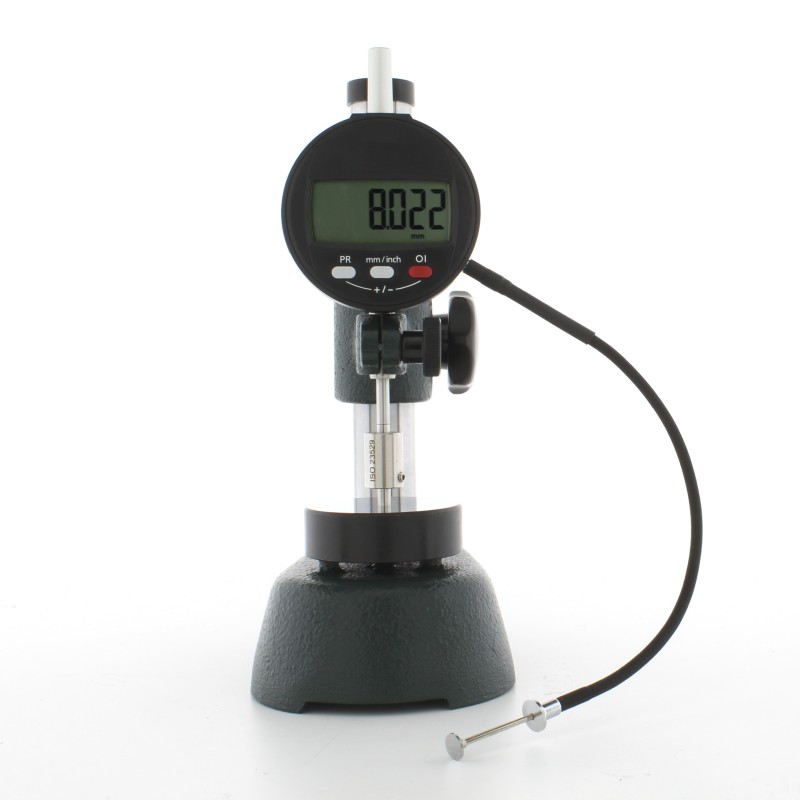

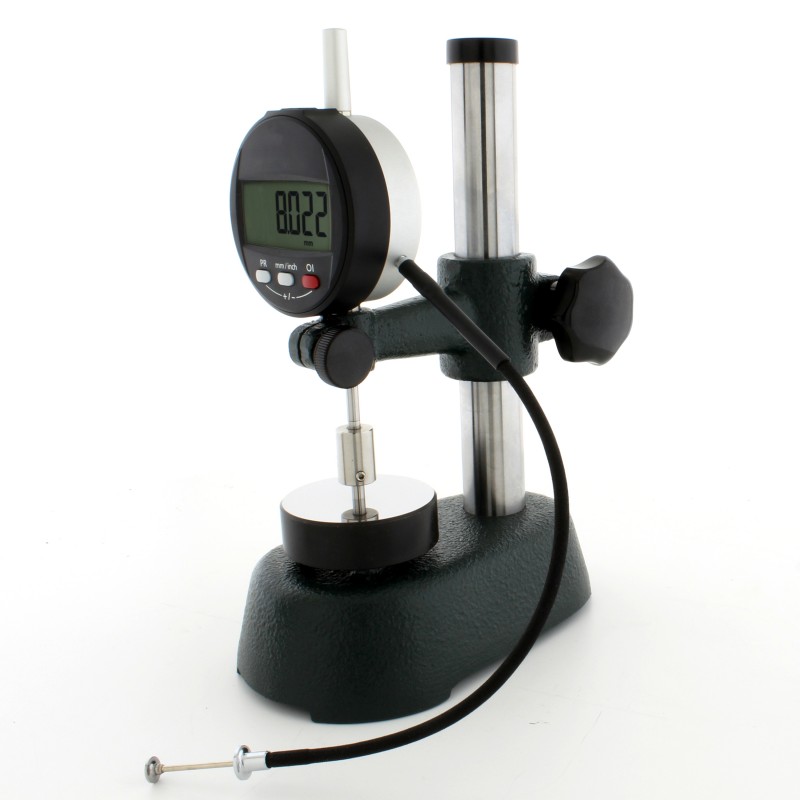

Made in GermanyThe RTG is a cost efficient and easy to use instrument for measuring the thickness of rubber or rubber-like materials. This rubber thickness gauge is suitable for rubber with hardness > 35 IRHD.
As an option, an additional feeler can be supplied to make this rubber thickness meter suitable for materials hardness <35 IRHD.
This thickness gauge works fully conform the ISO 23529 standard and comes with a certificate confirming the feeler diameter, shape and constant measuring pressure.


Features

  • Economical and Easy to use
  • Manufacturer calibration certificate and DAkkS calibration for the dial gauge optional available
  • Simple solid design
  • Conforming ISO 23529
  • Manual lifter and cable release

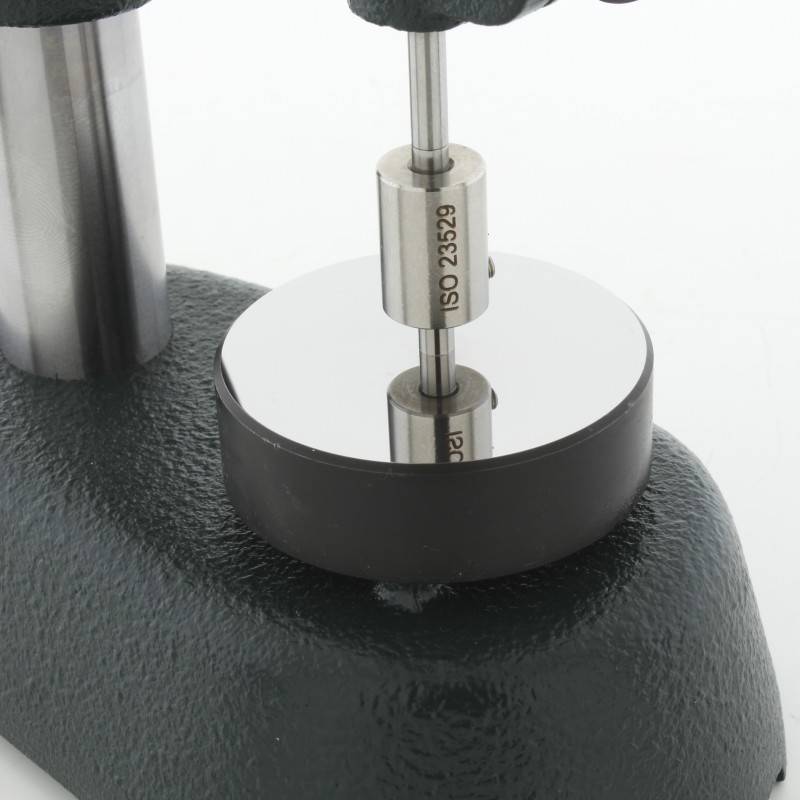

  • Optionally a ceramic table is available (RTG-CE).
    Ceramic will resist environmental influences better and should be ordered when gauge is used outside a conditioned environment.
  • Can also be supplied with an optional Ø6 mm feeler that provides 10 kPa ± 2 kPa measuring pressure.
    Suitable for rubber with a IRHD Hardness of 35 and lower.

Specifications

Accuracy
± 5 µm
Measuring Range gauge
12.5 mm
Max. Object Size
Approx. 90mm
Resolution
0.001 mm
Measuring Table
Ø50 mm
Feeler Size
Ø4 mm (≥35 IRHD)
Optionally Ø6 mm (<35 IRHD)
Feeler Pressure
22 kPa ± 5 kPa - Ø4 mm feeler (>35 IHRD)

Optionally
10 kPa±2 kPa - Ø6 mm feeler (<35 IHRD)
Applicable Norm
ISO 23529
Net Weight
2.5 kg
Dimensions
85 x 135 x 200mm
Power
Button cell CR2032

360 degree photo


Buy Now

Products


Product name
Price
Quantity
RTG- Rubber Thickness Gauge ISO 23529
€ 1.049,00

RTG-CE Rubber Thickness Gauge ISO 23529 with Ceramic table
€ 1.299,00



Accessories


Product name
Price
Quantity
RTG-6MM Feeler Ø6 mm with 10 kPa±2 kPa Pressure
€ 29,00

RTG-SOFT Software for RTG Rubber Thickness Gauge (incl. cable)
€ 395,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
