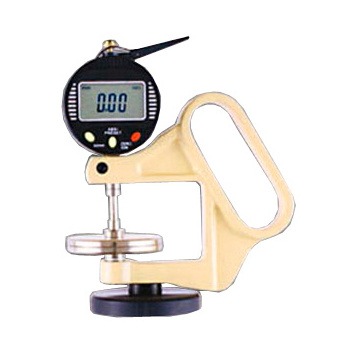

DMD-3-1 Digital Thickness Gauge | DMD-3-1

Made in GermanyThe DMD-3-1 digital thickness gauge determines the thickness of different materials, like leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic etc.

Due to its self-closing mechanism, the DMD-3-1 ensures a high accuracy and resolution of 0.01 mm throughout the measurement range from 0 to 25 mm.

  • RS-232 output for digital data collection
  • Self-closing lever
  • Zero button
  • Spring force measurement
  • LCD display with selectable measuring units
  • Inclusive calibration certificate

Available models
ModelRangeResolutionDepth of Jaw
DMD-30 - 10 mm0.01 mm50 mm
DMD-3-10 - 25 mm0.01 mm50 mm
DMD-8200 - 10 mm0.01 mm200 mm
DMD-820-10 - 25 mm0.01 mm200 mm
DMD-8300 - 10 mm0.01 mm300 mm
DMD-830-10 - 25 mm0.01 mm300 mm
DMD-8500 - 10 mm0.01 mm500 mm
DMD-850-10 - 25 mm0.01 mm500 mm

Available feelers
When ordering the DMD-3-1, please indicate your desired feeler, for example "DMD-3-1-B" for the gauge with feeler "B". Only your desired feeler shape is included.

Resolution:0.01 mm
Measuring range:25 mm
Depth of jaw:50 mm
Measuring pressure:2 N
Measuring principle:Self closing
Feeler shape:A/B/C/D/E
Display:LCD 4 digit, 8 mm high
Measuring system:Sylvac
Weight, net (gross):300 g (350 g)

Buy Now

DMD-3-1-B Thickness gauge with feeler B (⌀ 10 mm)
€ 339,00
DMD-3-1-C Thickness gauge with feeler C (⌀ 25 mm)
€ 309,00
DMD-3-1-D Thickness gauge with feeler D (⌀ 5 mm)
€ 339,00
DMD-3-1-E Thickness gauge with feeler E (⌀ 16 mm)
€ 309,00
DMD-3-1-F Thickness gauge with feeler F (⌀ 3.5 mm)
€ 339,00
DMD-3-1-H Thickness gauge with feeler H (⌀ 30 mm)
€ 349,00
DMD-3-1-I Thickness gauge with feeler I (⌀ 50 mm)
€ 361,00
DMD-3-1-M Thickness gauge with feeler M (⌀ 20 mm)
€ 339,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
