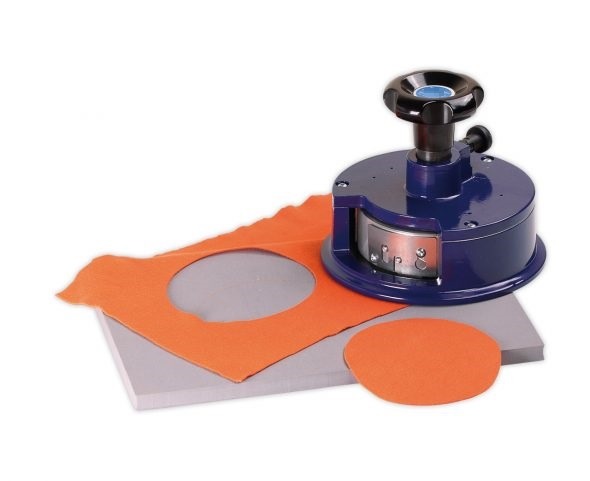

240/100 - Circular Sample Cutter


Made in GermanyThese round cutters can be used to cut samples or specimens from materials for analysis, testing, or inspection. These Circular Sample Cutter are commonly used in various industries, including textiles, paper, plastics, leather, and more.

A sample cutter can come in various sizes, depending on the type of material and the specific application. Our round cutters can produce circular samples ranging from Ø 113 mm to Ø 36 mm and accommodate different material thicknesses from 0.01 mm up to a maximum of 10 mm. To cut accurate circular samples with smooth edges.

The use of a sample cutter ensures consistent and precise samples, which are crucial for reproducible test results and analyses in laboratories and production environments.

Model 240/100 - Sample cutout 100 cm2, Ø 113 mm, for max. 5 mm material thicknes

Designed to precisely cut samples of various materials, such as woven, non-woven, knitted fabric, fleece,  carpet, films, foil or paper.

Typical used to determination weight per unit area of fabric, paper etc.

The material to be cut is placed under the cutter between the rubber plate and the cutter, which allows the cutter to cut into the base with complete safety.
While holding the cutter with one hand, apply pressure to the handle and rotate clockwise direction by at least 90 degrees.
Even difficult materials such as fine knits, thin films, tissue paper, corrugated cardboard and synthetic leather can be cut conveniently.

Weight per m2, Textile fabrics ISO 3801
Weight per m2, Knitted fabrics ISO 12127
Weight per m2, Paper ISO 536 // ISO 186
Weight per m2, Plastic/film ISO 1183-1:2012 only par. 5.1.4.1
Weight per m2, Geotextile ISO 9864
Pile weight/m2 EN 12127

Features
  • Max. 5 mm material thickness
  • Sample cutout 100 cm2
  • Ø 113 mm
  • Designed to precisely cut samples of various materials, such as woven, non-woven, knitted fabric, carpet, films or paper

Operating Procedure

The material to be cut is placed under the cutter between the cutting board and the cutter. While holding the cutter with one hand, apply pressure to the handle and rotate by at least 90 degrees.


Specifications
Cutting Thicknessmax. 5 mm
Sample Cut-Out100 cm²
Sample Diameter113 mm
Number of blades4
Weight net (gross):2200 g (2800 g)
Dimensions (HxØ):115 x 165 mm (HxØ)

Complete Kit
  • Sample cutter 240/100 with (4) blades installed
  • 1 rubber plate
  • 4 spare blades
  • Operating instructions


Related Products

AR-300 Area Weight Balance


  • Supplied with calibration weight for recalibration
  • Built in calibration routine
  • Includes Calibration Certificate

More details

AR-300 Area Weight Balance

Downloads

Buy Now
Product

Product
Price
Quantity
130222
Sample Cutter Model 240/100
€ 308,00

Accessories

Product
Price
Quantity
130587
60001M - Spare blades for sample cutter model 240/100 - 230/140 - 231/100 - 230/50 (100 pcs)
€ 50,00
132249
60001M2 - Spare blades for sample cutter model 240/100 - 230/140 - 231/100 - 230/50 (20 pcs)
€ 15,00
132136
60002M - Spare Blades for sample cutter 230/100 (20 pcs)
€ 87,00
138199
60008M - Spare blades especially for carbon fibre mats for 240/100 (100 pcs)
€ 50,00
130586
60003M - Rubber plate for sample cutter / Size: 300x 200x10 mm (1pc)
€ 14,00
130417
60004M - Rubber plates for sample cutter / Size: 300x 200x10 mm (10 pcs)
€ 110,00
139360
60005M - Spare Handle for sample cutter series 240
€ 31,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
