SC-PM, Tension Indicators and Amplifiers

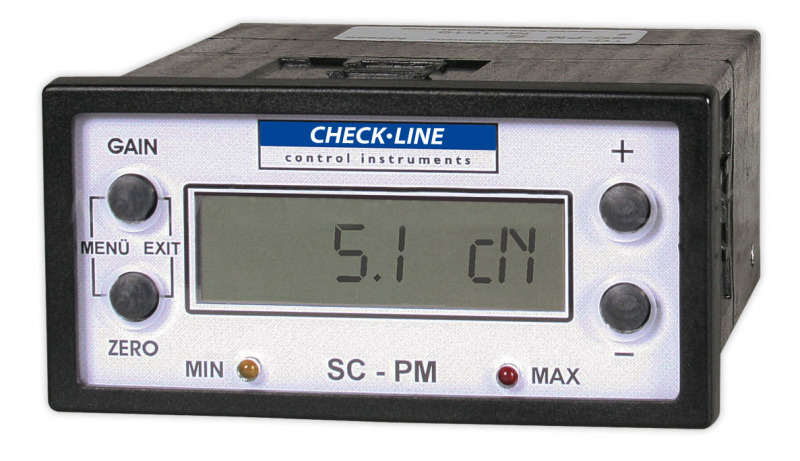

SC-PM Display Unit


Made in Germany

2 Available Models

Model Connectable Sensors Output signal
SC-PM Sensors with measuring amplifier 0 - 10 V DC, Open Collector
SC-PMD Sensors without measuring amplifier 0 - 10 V DC, Open Collector



Panel mount digital display (1/8 Din Cutout), RS 232 output signal, analog output and user-set MIN and MAX alarm limits. All tension sensors series TS and LTS with analog output signal 0 - 1 V can be connected.



3 different calibrations for customer supplied material can be saved at this display unit



Available with digital output for data processing with PC




Rear Panel of Indicator: Terminal strip for power supply, output signals (RS 232, 0 - 10 V DC, Open Collector)


Features
  • Connection of series TS and LTS with analog output 0 - 1 V DC, optionally series without integrated amplifier
  • User set limits (Min and Max alarms) with LED and Open Collector output for external signal unit
  • Adjustable damping for easier reading if tension fluctuates
  • Panel mounted digital display
  • Display unit with Dotmatrix LCD display, 12 mm high with backlight
  • Interfaces:
    Analog: 0 - 10 V DC (standard)
    Digital (optional): RS 232 or RS 422
    Current (optional): 4 - 20 mA (instead of 0 - 10 V DC output)
  • Adjusting and storaging of 3 different materials
  • Menu for configurating the device (alarm limits, damping, units, tension range, adjustment graph)
  • Adjustment for connected sensor (Zero and Gain)
  • CE certified with sensor connected

Output Signal
Name Output Signal
Standard
analog 0 - 10 V DC
open collector
Code A3
4 - 20 mA instead of 0 - 10 V DC
open collector
Code 232
digital RS-232
analog 0 - 10 V DC
open collector
Up to 100 readings can be transfered per second
Code 422
digital RS-422
analog 0 - 10 V DC
open collector
Up to 100 readings can be transfered per second
Click picture for more information

Complete Kit
Display unit with transport packaging, operating instruction in English and German, Certificate of Compliance with the order 2.1 according EN 10204

Specifications
Digital display
Dotmatrix LCD, 12 mm high with backlight
Measuring to be measured units
cN, daN, g or kg selectable depending on range
Selectable Damping
9 adjustable settings (electronic damping, moving averaging)
Output signal
analog: 0 - 10 V DC /R (Last) ¡Ã 5k§Ù
digital (option): RS 232 or RS 422 (19200, 8, N, 1), 100 measurings/s
current (option): 4 - 20 mA instead of 0 - 10 V DC
Input signal
0 - 1 V DC, option mV
Alarm limits
Programmable MIN/MAX limits with LED
Alarm output
Open Collector max. 30 V DC, 10 mA
Adjustment
Storage for 3 different materials (standard adjustment + 2 customer supplied materials)
Power supply
15 - 24 V DC, 100 mA
Temperature range
10 - 45° C
Air humidity
85 % RH, max.
Housing
Plastics
Dimensions
115 x 95 x 48 mm (LxWxH), mounting cut out 92 x 44 mm
Weight, net (gross)
Approx. 300 g (Approx. 1000 g)
