PosiTector SPG Surface Profile Tester


Made in the USARange: 0 – 500 microns / 0 – 20 mils
Accuracy: ± (5 microns + 5%) / ± (0.2 mil + 5%)

The PT-SPG Surface Profile Gage is a precise, rugged tester designed to measure and record peak to valley surface profile heights.

The PT-SPG is available in Standard (SPG1) or Advanced (SPG3) configuration. The standard model has a monochrome display, 250 reading memory and USB data output. The Advanced model adds a high contrast color LCD display, Scan Mode, Real-Time Graphing Bluetooth output and more.

Conforms to ASTM D4417-B, AS 3894.5-C (with optional 30° tip angle), U.S. Navy NSI 009-32, SANS 5772 and others.


Features



Simple
  • Fast measurement rate of over 50 readings per minute - ideal for quickly and accurately measuring surface profile over large surface areas
  • Large, easy-to-read, graphics LCD
  • Enhanced one-handed menu navigation
  • RESET feature instantly restores factory settings
Durable
  • Solvent, acid, oil, water and dust resistant – weatherproof
  • 60º angle tungsten carbide tip for long life and continuous accuracy - field replaceable
  • Rugged, outdoor/indoor instrument - ideal for field or shop use
  • Shock-absorbing, protective rubber holster with belt clip and wrist strap
  • Two (2) year warranty on body and probe
Accurate
  • Built-in temperature compensation ensures measurement accuracy
  • Long form Certificate of Calibration showing traceability to PTB included
  • Glass Zero Plate and metal shim included
  • Conforms to national and international standards including ASTM D4417 and SSPC-PA17
Versatile
  • PosiTector body accepts all PosiTector 6000, 200, DPM, UTG, RTR and SPG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage or wall thickness gage
  • 30º angle interchangeable probe tip available for special surface profile applications
  • Selectable display languages
  • Hi Contrast backlit display for bright or dark environments
  • Flip display enables right-side-up viewing
  • Uses alkaline or rechargeable batteries (built-in charger)
Powerful
  • Continually displays/updates average, standard deviation, min/max thickness and number of surface profile readings
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • Every stored measurement is date and time stamped
  • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
  • PosiSoft solutions for viewing, analyzing & reporting data:
  • PosiSoft USB Drive -stored readings and graphs can be accessed using universal PC/ Mac web browsers or file explorers. No software required
  • PosiSoft.net account - a free web-based application offering secure storage of thickness readings
  • PosiSoft - desktop software (PC/Mac) for downloading, viewing, printing and storing measurement data. Available as a free download
  • PosiSoft Mobile -(Advanced models only) - access readings, graphs, capture photos and update notations through WiFi enabled devices such as tablets, smart phones and computers
  • Software updates via web keep your gage current

Gauge Selection

Step 1: Select a body


Feature Comparison Chart
Standard
(1)
Advanced
(3)
Hi Contrast LCD Display

Monochrome

Color
General Features
Standard
(1)
Advanced
(3)
Accepts all coating thickness (6000/200/PC), environmental (DPM), surface profile (RTR/SPG), and ultrasonic wall thickness (UTG) probes

Statistics - Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring

Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits

Two (2) year warranty on body and probe

Memory Features & Capacity
Standard
(1)
Advanced
(3)
Reading Storage Capacity
250 in one group
100,000 in up to 1000 groups
Screen Capture - record screen images for record keeping and review

Batch Annotation - create meaningful batch names and enter notes directly on the instrument using a familiar on-screen QWERTY keyboard
-
SmartBatch™ allows entry of user-defined parameters and criteria to comply with various standards and test methods
-
Real time graphing, picture prompting and batch notes
-
Connection Options
Standard
(1)
Advanced
(3)
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
WiFi technology - allows the PosiTector to connect to a WiFi network to wirelessly synchronize with PosiSoft.net, downloads software updates, and connects to mobile devices for expanded functionality
-
Wireless Access Point - directly connect your smart device (phone/tablet) or WiFi-enables computer to a PosiTector Advanced body without the need for WiFi network access or a Mobile Hotspot.
-
Bluetooth Wireless Technology for data transfer to a PC or optional portable printer
-
PosiSoft Solutions - 4 ways to view and report your data
Standard
(1)
Advanced
(3)
PosiSoft USB Drive - stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required
PosiSoft - desktop software (PC/Mac) for downloading, viewing, printing and storing measurement data from Positector instruments. No internet connection required
PosiSoft.net - a free web-based application offering secure storage of thickness readings
PosiSoft Mobile - gage-based software application allows access to readings, graphs, capture photos and update notations through WiFi enables devices such as tablets, smart phones and computers
-

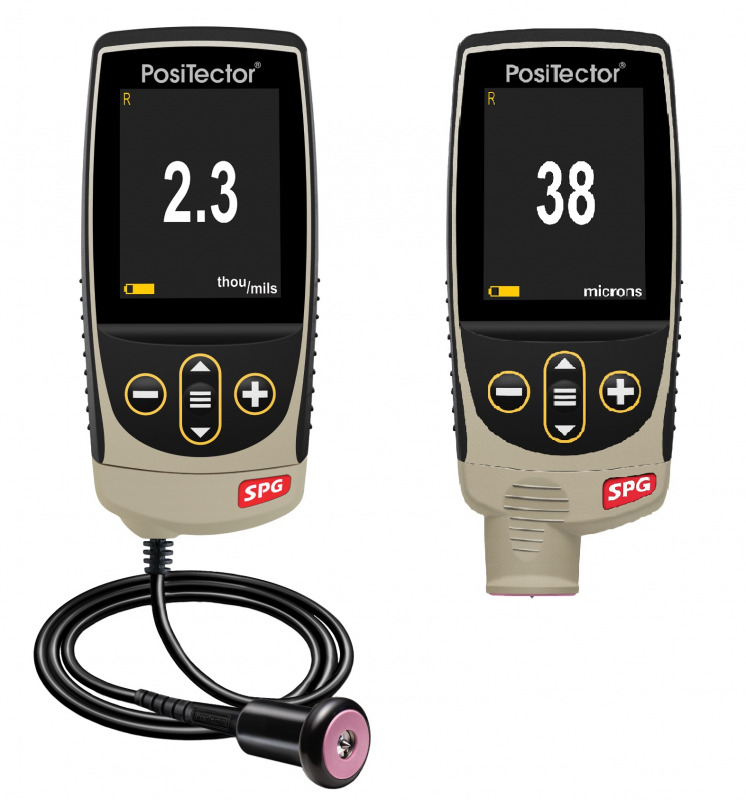

Step 2: Select Probe Style

SPG SPG S SPG CS
Built-in SPG Probe Separate SPG probe Separate SPG probe
Built-in Probe Cabled Probe Cabled Probe
Probe Order Code PRBSPG PRBSPGS PRBSPGCS
Application Blasted Steel Textured Coatings
Measuring Range 0 - 500 µm (0 - 20 mils) 0 - 1500 µm (0 - 60 mils)
Accuracy ± (5 µm + 5%) ± (0.2 mil + 5%)
Tip Angle 60 degree* 60 degree
Radius 50 µm (2 mils) 500 µm (20 mils)
* 30 degree tips available for conforming to Australian standard AS 3994.5-C

All probes feature durable Alumina wear face and tungsten carbide tip for long life and continued accuracy.
SPG Probe Face


Complete Kit

ALL GAGES COME COMPLETE with glass zero plate, metal check shim, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to PTB, USB cable, two (2) year warranty.

Related Products

PosiTector-DPM Dew Point Meter



More details


Specifications

Measuring Range
0 to 500 um (0 - 20 mils)
PT-SPGCS Models: 0 to 1500 um (0 - 60 mils)
Accuracy
+ (0.2 mils + 5%)
+ (5 microns + 5%)
Dimensions
137 x 61 x 28 mm (5.4" x 2.4" x 1.1")
Weight
140 g (4.9 oz.) without batteries
Conforms to
ASTM D4417-B, AS 3894.5-C (with optional 30° tip angle), U.S. Navy NSI 009-32, SANS 5772 and others

Buy Now

Products


Product name
Price
Quantity
SPG1-E - PosiTector SPG Standard Surface Profile Tester with Built-in Probe
€ 642,00

SPG3-E - PosiTector SPG Advanced Surface Profile Tester with Build-in Probe
€ 1.040,00

SPGS1-E - PosiTector SPG-S Standard Surface Profile Tester with Separate probe
€ 771,00

SPGS3-E - PosiTector SPG-S Advanced Surface Profile Tester with Separate probe
€ 1.169,00

SPGCS1-E - PosiTector SPG-CS Standard Surface Profile Tester with Separate C-probe
€ 771,00

SPGCS3-E - PosiTector SPG-CS Advanced Surface Profile Tester with Separate C-probe
€ 1.169,00



Accessories


Product name
Price
Quantity
BT-Printer - Positector Portable Bluetooth Printer
€ 450,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
