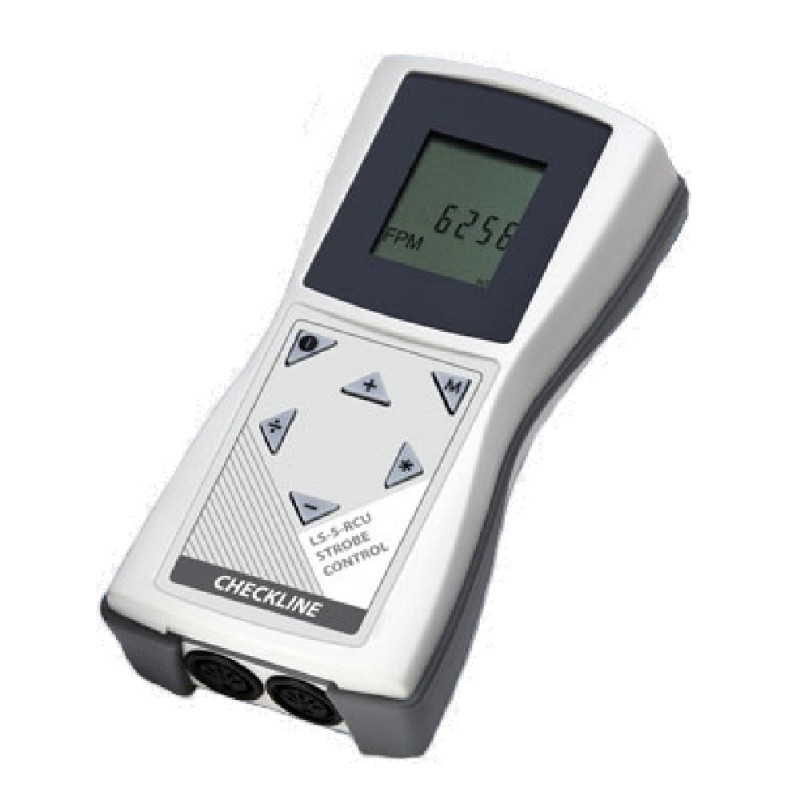

LS-SCU Remote Control Unit


Made in GermanyDesigned to provide a programmable frequency output for use to Control Xenon and LED Stroboscopes. Programmable adjustments include flash rate (FPM or Hz), Pulse Duration (usec), Pulse Degree, Delay (msec), Phase Shift (Degree), Divider and more.

All controls are accessed via 6 tactile buttons on the front of the controller with all values shown on a alpha/numeric LCD Display. Unit is 24V DC powered and is supplied with 5 ft. connection cable.

Universal Power Supply with 4 plug adapters (for use with 100–265V AC) available as an option.

Related Products

LS-5-12000 Compact Linear Stroboscope


  • Unmatched brightness, sharpness and uniformity from any strobe in its class
  • Uses long-life Xenon U-tube which is easily replaced after 200 Million flashes
  • Extremely short flash duration of less than 5 microseconds (µs) provides for a super-sharp image for easy observation
  • Can be powered using 24V DC already available on the machine or using option AC-DC power adapter.
  • Externally triggered using industry standard TTL-type square-wave signal at rates up to 208Hz and even higher
  • Aluminium enclosure is efficiently dissipates heat eliminating the need for bulky heat sinks
  • Two (2) or more LS-5 Strobes can be connected to each other for wider web coverage
  • CE-certified for use worldwide
  • Threading holes provided for fixed-mounting on machine frame or articulating arm
  • Optional UV-Kit is offered to illuminate any UV printing requiring inspection. Includes special UV flashtube and lens.

More details


Specifications

Frequency
30.0 - 999.9 FPM ± 0.1
1,000 - 600,000 FPM ±1
0.5 - 999.9 Hz ± 0.1
1,000 - 10,000 HZ ± 1
Pulse Width
absolute (± 1) and relative (± 1°) adjustable
Phase Shift
0 - 359° ±1°
Delay
0.0 - 2,000.0 ms ± 0.1 ms
Divider
1 - 255 ± 1
Power Supply
10 - 32 V DC, with reverse polarity protection
Current intake
<50 mA
Trigger Input
Principle
Optocouple, voltage-free
Low Level
< 1 V
Level
3 - 32 V, NPN + PNP
Minimum pulse Length
50 µs
Reverse voltage protection
Yes
Trigger Output
Principle
Short circuit and overvoltage proof transistor output to the optocoupler control, non-isolated
Level
NPN, max 32 V
Pulse Length
adjustable
Maximum Current
50 mA
Reverse Voltage Protection
Yes
Housing Material
ABS / EPDM
Dimensions
162x82x40 mm / 6.4x3.3x1.6 inch
Weight
230 g
Ambient Temperature
0 - 50 °C (32 - 122 °F)

Buy Now

Product


Product name
Price
Quantity
LS-SCU - Remote Control Unit and connection cable
€ 381,00



Accessories


Product name
Price
Quantity
LS-5-CABLE Connection cable with LS-5-DIN at both ends (1.5 meter)
€ 82,00

LS-DIN 5-pin DIN Connector for use with LS-5 or LS-5-RCU
€ 12,00

LS-AC-WORLD - LS-5-AC-WORLD Universal Power Supply for LS-5-12000 or LS-5-RCU
€ 108,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
