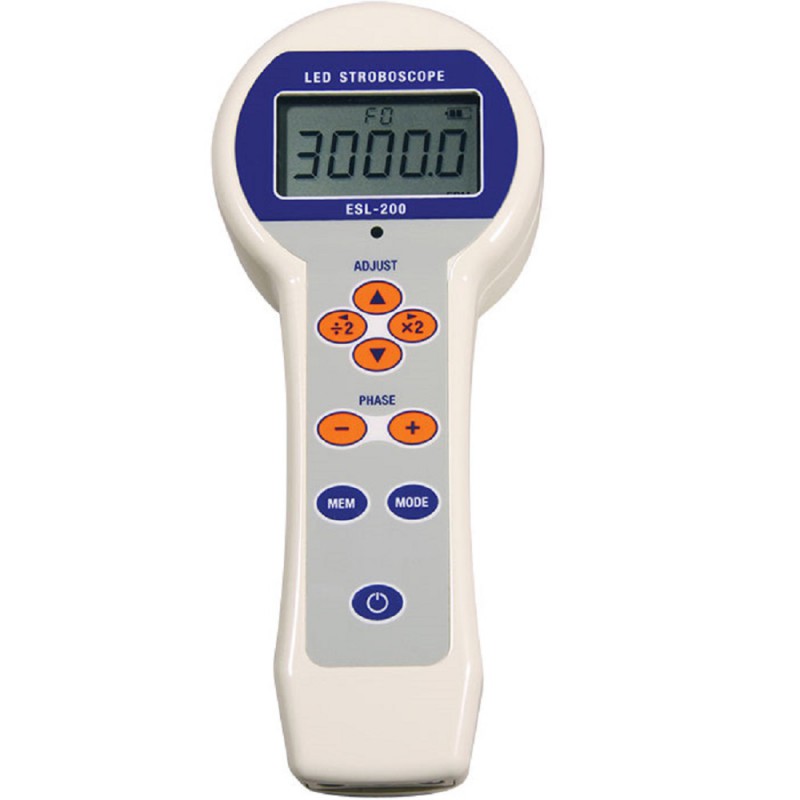

The ESL-200 LED is a super bright, battery operated, LED stroboscope designed to measure and observe rotating, reciprocating and linear motion in a variety of production, quality control and academic applications. It generates an extremely bright light relative to its compact size.
The ESL-200 LED stroboscope is designed to measure the speed of rotating or cycling linear motion objects without contact or reflective tape, as well as freeze motion visually. Lifetime LED lights using pulse width modulation, encased in an aluminum housing, and powered by a NiMH rechargeable battery, make this pocket strobe extremely durable and capable of high flash rates.
The ESL-200 LED is an ideal inspection strobe for speed, motion and vibration analysis, such as rotating shafts, fans, cams, etc.
Adjustable Flash Duration
For most applications standard flash duration works without adjustment. For ultra high speed applications, objects may move during the brief period of a single flash, resulting in a blurred image. By decreasing flash duration, objects have less time to move and the image appears sharper.
| Measuring Range | 6.0 - 150,000 fpm/rpm |
| Resolution | ±0.1 fpm/rpm (6.0 to 9999.9 fpm/rpm) ±1 fpm/rpm (10000 to 120000 fpm/rpm) |
| Accuracy | ±0.01%, ±1 LSD |
| Display | 12mm high, 5 digit LCD |
| Brightness | 4300 LUX 6,000 FPM, at 20cm distance, flash duration F0 |
| Power | NiMH Rechargeable battery with Universal 100-240V adapter |
| Battery Life | 6 hours continuous use at 6,000 fpm/rpm, Power save mode 12 hours continuous use at 6,000 fpm/rpm |
| Operating Temp | 0 to 45° C |
| Weight | 540g |
| Housing Material | Aluminum |
| Tripod Mount | 1/4-20 UNC on backside |
| Phase Shift | with external trigger: 0 - 359 degrees in 1 degree increments |
| Warranty | 2 years |
| Specifications Trigger Kit ET-1 | |
| Target Size | 4mm dia. (minimum) |
| Target Material | Ferrous material |
| Sensing Distance | 3mm (based on 10 mm dia. target) |
| Max Speed | 50 m/min (using 10mm dia. target) |
| Max Frequency | 1 KHz |
| Sensor size | 12 mm dia. x 45 mm; M12 connector |
| Power | AC adapter (up to 240VAC) |
The External Trigger immediately synchronizes the stroboscope with a rotating object. The sensor is aimed at a ferrous target mounted on the drive shaft and triggers the strobe to flash each time the target passes the sensor. ET-1 is complete with sensor, cables and AC adapter. Ferrous target not-included.
