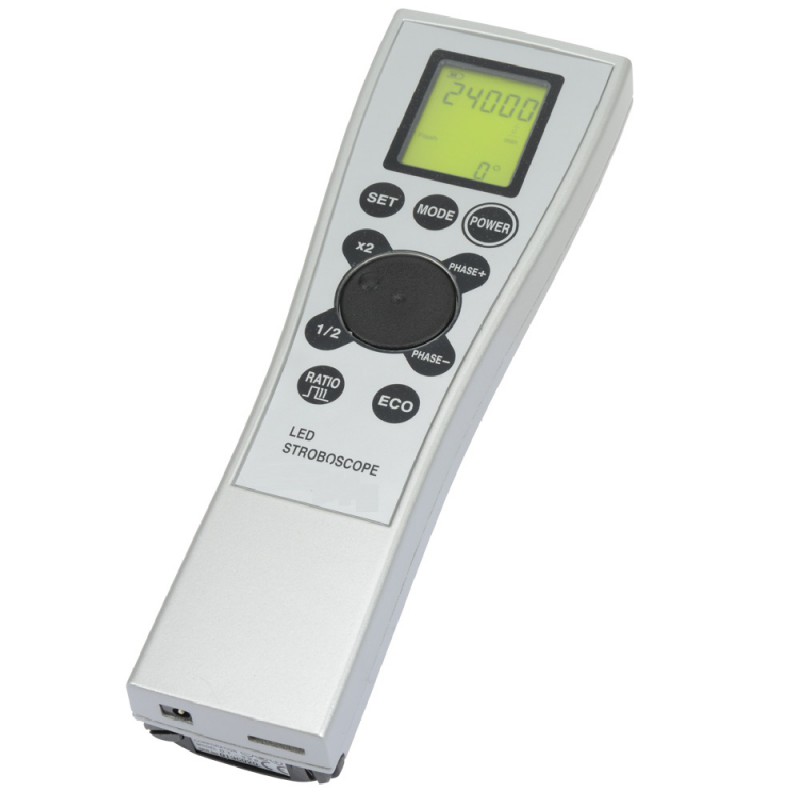

DT-326 LED Stroboscope


The DT-326 is an all new LED stroboscope utilizing super bright light emitting diodes (LED’s) in an appealing, durable all metal design. The DT-326’s unique LED array provides an accurate and stable strobe light. Innovative industrial design allows for a longer flash life - 5 times longer than traditional xenon flashtubes! With its intuitive “ONE HAND” controls, wide and adjustable flash rate, brightness and focus control, AC or DC operation and silent operation, the DT-326 LED Stroboscope provides a superior value in a practical package.

Features
  • Wide Flash Range: 60-120,000 flashes per minute, can be applied to meet almost any HIGH-SPEED application
  • Ratio Control (Flash Pulse Duration): Adjustable Flash Pulse duration achieves sharper images for critical inspection
  • ECO Mode: Brightness control extends battery life
  • AC/DC Operation: AC adapter for continuous use or (4xAA batteries) for maximum portability
  • Phase Shift: Advance or retard flash timing for viewing gear teeth, cutting surfaces, repeats or “drifting” images
  • All Metal Construction: Durable, comfortable, hand-held, fixed or swing arm mounted
  • Input/Output Interface: Input sensor triggers or Output synchronization controls
  • Includes Traceable Calibration Certificate

Dimensions
Dimensions DT-326


Light Output (LUX) vs Distance


at 30 cm Distance, 6000 flashes/min (FPM)

Specifications
Measuring UnitsFPM, Hz
Flash range:High range: 60 - 120000 FPM / 1 - 2000Hz
Low range: 60 - 12000 FPM / 1 - 200 Hz
Light source:Bright LED's
Flash mode:Normal and ECO (Energy saving mode)
Weight:500 g
Operating temperature:0 °C - 30 °C

Buy Now
Product

Product name
Price
Quantity
DT-326 LED Stroboscope Complete Kit
€ 843,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
