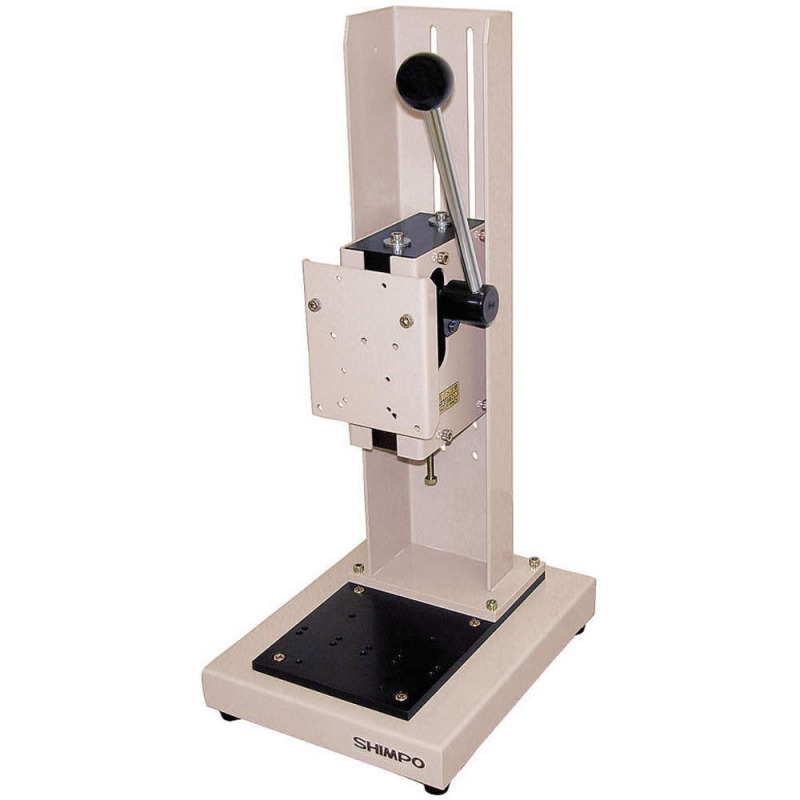

FGS-100L Manual Lever Test Stand


The FGS-100L Manual Hand-lever Force Test Stand offer the ability to obtain accurate, consistent results without the high cost of a motorized system. The hand-lever operated test stands are ideal for rapid testing applications.

The FGS-100L manual hand-lever test stand has a 100 kg (1000 N) capacity and can ensure accurate, consistent test results with the addition of a digital or mechanical force gauge.

Nearly all manufacturers’ gauges are compatible with this test stand for incredible versatility. This stand is designed for precision, balance, and durability. Therefore they are perfectly suited for measuring a limitless range of materials such as, wire, spring, plastic, paper cord, tubing, glass and composites.


Features
  • Manual lever operation for compression (push) measurements
  • Adjustable clearance setting enables testing on a wide range of samples
  • Sturdy all steel construction allows exceptional durability and extended life of the product
  • Versatile bottom mount mounting plate permits acceptance of both standard and custom-made attachments
  • Precision gear movement provides a consistent linear motion that produces repetitively accurate results
  • Modular, compact design
  • Compatibility with many vendors’ force gauges facilitates flexibility when replacing older test stands
  • Optional digital length meter added to stand creates deflection measurement testing for applications such as spring rate testing

Specifications
Capacity100 kg / 1000N
Stroke50 mm
Vertical Clearance84 – 294 mm / 8 steps - 30 mm/step
Dimensions230 x 290 x 562 mm (L x W x H)
Weight15 kg
Warranty2 Years

Downloads

Dimensions
Dimensions-FGS-100L


Complete Kit

Included Items:

  • Mounting Bracket
  • Cable Holder
  • 5mm Allen wrench
  • 4x Philips head screw M4x8
  • 3x Philips head screw M5x6
  • 2 Year Warranty
  • User Manual
