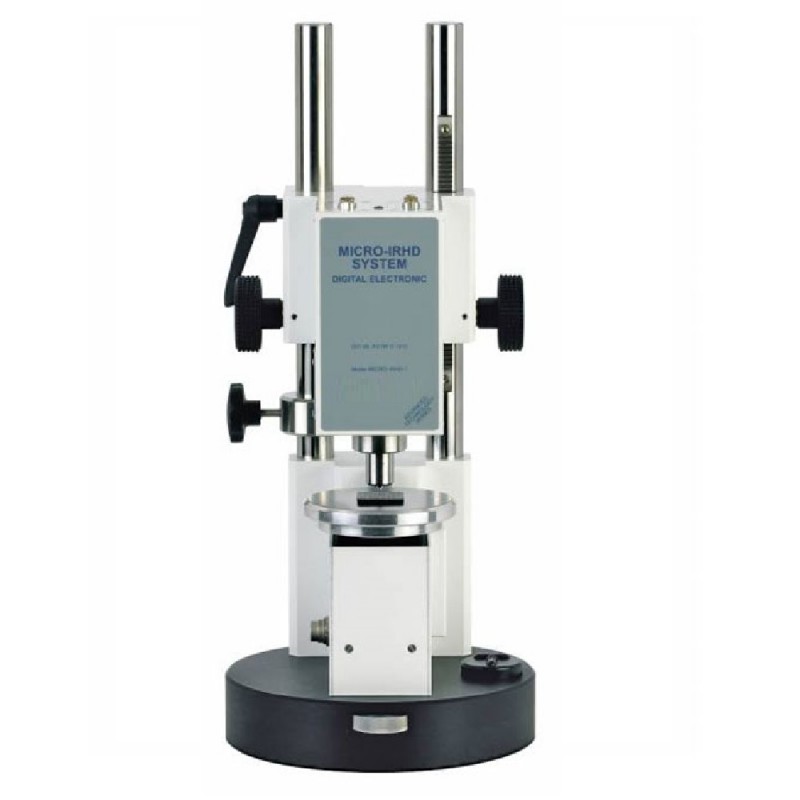

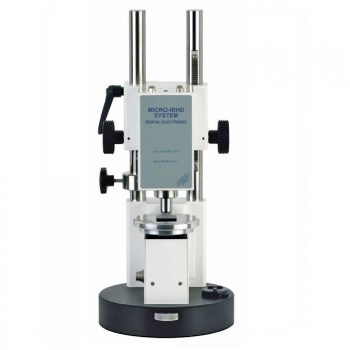

IRHD Micro IRHD Hardness tester


Made in GermanyThe Micro IRHD hardness tester is the ultimate state of the art hardness tester for very thin pieces of elastomers with a thickness from 1 to 5 mm. This high accuracy system complies to international norms and standards, including DIN ISO 48, ISO 48 and ASTM D 1415.

The hardness tests are conducted with the use of the indentor, which has a maximum indentation depth of 0.3 mm. The whole Micro IRHD hardness system is controlled by software (MS-windows) that prevents operator errors. During the measurement process, 2 weights are automatically lowered and raised. As soon as the specimens are placed on the support table, the support table drives to the measuring head automatically. Then the minor load is lowered to the indenter, followed by the major load. After 30 seconds the Micro IRHD software measures the applied penetration of the indenter and converts it into Mirco IRHD units.

Further features of the Micro IRHD software include the measurement and output of the hardness value, graph, hysteresis, statistics, test reports and many more features. An ASCII-output file is provided. The data are transmitted to the IRHD controller, that is connected to the RS232 interface of the computer.

For specific measurements of O-rings and seals, the optional automatic O-ring center device is a helpful and accurate tool.


Features
  • Developed for hardness measurements on very thin materials from 1 to 5 mm
  • Delivery includes a dust cover and calibration certificate of the supplier
  • Different accessories for extended and accurate hardness measurements
  • Measures the hardness of small, thin materials and O-rings

Related Products

IRHD O-Ring center device for Micro IRHD hardness systems | O-ring center device


  • Exact measurements of O-rings at the measuring axis
  • Fully automatic cycle
  • Suitable for O-ring cord with a diameter from 0.6 mm to 8 mm; adjustable steps of 0.01 mm

More details

IRHD O-Ring center device for Micro IRHD hardness systems | O-ring center device

IRHD center device with sample holder


  • Exact measurements at the highest point of the sample
  • Custom designed sample holders available
  • Fully automatic measuring cycle

More details

IRHD center device with sample holder

IRHD X-Table Center Device with digital gauge


  • Custom designed sample holders available on request
  • For hardness measurements of small, irregular parts

More details

IRHD X-Table Center Device with digital gauge

IRHD X-Y center device for Micro IRHD hardness tester


  • Measurements at the highest point of the O-ring
  • Full automatic measuring cycle
  • Suitable for O-rings and flat materials

More details

IRHD X-Y center device for Micro IRHD hardness tester

IRHD Prism center device for use with Micro IRHD systems


  • Center prism is removable to measure also bigger parts
  • For samples with 4 - 50 mm exterior diameter

More details

IRHD Prism center device for use with Micro IRHD systems

IRHD RTB Rubber test blocks


  • Test blocks for regularly reference checks
  • Available in different ranges
  • Display of mean value, range and standard deviation
  • Calibration certificate included

More details

IRHD RTB Rubber test blocks

IRHD platform for Micro IRHD hardness system


  • For measuring larger samples
  • Attachment without any tools

More details

IRHD platform for Micro IRHD hardness system

Specifications
Dimensions:IRHD unit: Ø 200 mm x 470 mm
Controller: 290 mm x 260 mm x 75 mm
Weight (net):17,5 kg
Max. sample thickness:90 mm (without center device)
Resolution:0.1 IRHD
Standards:DIN ISO 48, ISO 48, ASTM D 1415, BS 903: Part A26
Power Supply:100 - 240 VAC 50/60 Hz

Buy Now
Product

Product
Price
Quantity
134771
IRHD Micro Hardness Type M Motorized Test System with Software, incl. certificate
€ 12.664,00

Accessories

Product
Price
Quantity
134773
IRHD O-Ring Center Device (Measuring table 84mm x 128mm)
€ 2.742,00
134774
IRHD O-Ring Center Device XL (Measuring table 160mm x 208mm)
€ 2.834,00
134690
IRHD X-Table Center Device with digital gauge
€ 2.637,00
134775
IRHD-PRISM Prism Center Device
€ 963,00
134776
IRHD Measuring Platform 250 mm x 200 mm
€ 232,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
