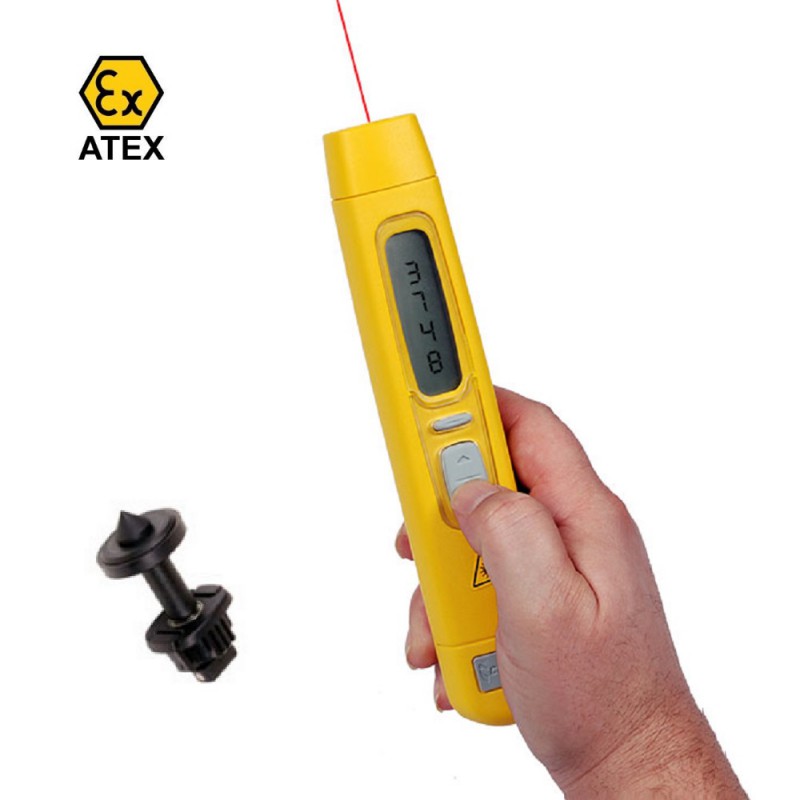

ET-2109LSR Intrinsically Safe Tachometer


The new CHECK-LINE ET-2109 explosion proof tachometer is certified EEx ia IIC T4 - ATEX II 2 G to allow for use in a wide range of hazardous environments including petrochemical, Gas & volatile materials processing industries.
The simple 3 pushbutton operation and the large clearlyreadable display with over-head facility enables a wide, flexible field of application. This light-weight device provides an easy one handed operation and facilitates the carrying-out of measurements after which it can be stowed away in the tool box or jacket pocket.

Operation
  • ON button – Auto-Off after 1 min.
  • HOLD function for 1 min. after releasing button
  • Programming function using 3 buttons
  • Statistic functions (min, max, average)

Display
  • 5 digit
  • large display
  • LOW-batt. display
  • pulse recognition
  • function mode

Note: The ET-2109LSR is not certified for use in Mines.


Features

  • Explosion-Proof Housing
  • Vertical display with 180° inversion capability
  • Memory holds last reading for 1 minute
  • Includes calibration certificate
  • Ex designation:
    II 2 G EEx ia IIC T4

Complete Kit

The ET-2109 is supplied as a complete kit
  • tachometer,
  • reflective tape,
  • contact adapter,
  • calibration
  • certificate,
  • instruction manual (english),
  • 4xAAA batteries
  • all in a hard plastic carrying case.









Combination Contact Adapter/Surface speed & length Adapter Included.

Typical Applications

Typical Applications

Accessories

10009S


  • Self-adhesive reflective tapes
  • 4 x 35 pcs.

More details


Related Products

Cic-Tacho


  • Easy planning of calibration
  • Short turnaround
  • Exclusively using a standard which is traceable to Britisch national standards and International standards ISO/IEC 17025
  • Possibility to adjust and repair

More details


Specifications

Ex designation:
II 2 G EEx ia IIC T4
EC-Certificate of Conformity:
Baseefa 01 ATEX 2301 X
Measuring system:
optical / laser reflection
Measuring Range
3.0 - 99,999 rpm
0.3 - 1,500.0 Meters or Yards/min
(4,500 ft/min) or seconds
Optical Sensing Range
2 - 80" / 50 - 2000mm
Capture Mode
0.1 Sec
Count
0-99999 revs or length in linear
Time Interval
0-99999 seconds (auto)
Memory Hold
Holds last reading for 1 minute
On Target Indicator
Yes
Housing Material
High Flow ABS - Metalised
Batteries
4xAAA supplied
Dimensions
21 L x 4 W x 3.5 D - cm
Measuring Wheel
Included, 0.1 meter circumference
Weight (kit)
0.4 Kg
Warranty
1 year
Sensing Distance
1 meter (39 inches)
Battery Life
6 hours continuous (shorter when using rechargeable type
Display Update Rate
0.8 seconds/update (0.1 sec for Max Value capture)
Important!
IMPORTANT NOTE: These models must only be used with Duracell "Procell" batteries which are officially approved for this instrument. Use of other AA cells will invalidate I.S. Certification.

Buy Now

Product


Product name
Price
Quantity
ET-2109LSR - Intrinsically Safe Tachometer
€ 699,00



Accessories


Product name
Price
Quantity
10009S - Self-adhesive reflective tapes
€ 15,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
