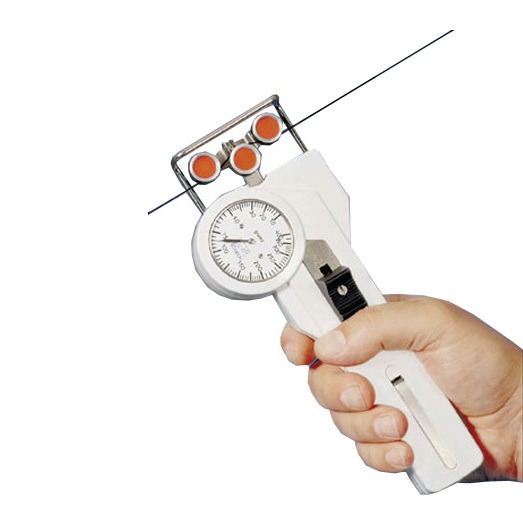

DX2 Tension meter


Made in GermanyA precise jeweled movement, choice of ball bearing mounted rollers and rugged cast aluminum housing makes the DX2 ideal for the toughest production floor application.

Built-in mounting holes permit fixed installation for continuous in-line use.

Built-in material thickness compensator maximizes accuracy when using filaments of different diameters. (Standard on model DX2-SP and higher ranges).


Features
  • Thumb-operated, roller shifting mechanism and exclusive snare-guide automatically guides the moving filament into the V-grooves eliminating breaks and snags
  • Front filament loading permits the operator to observe running material, rollers and dial face at all times
  • DX2's are individually calibrated for highest accuracy
  • 41mm Ø scale
  • DX2's hard-coated aluminum, V-grooved rollers are rated for speeds up to 2000 m/min or, optionally, up to 5000 m/min
  • Finger Support: We recommend mounting a finger support for higher tension ranges (included)
  • Certificate of Compliance with the order 2.1 according DIN EN 10204 is included
  • Optionally available: Inspection Certificate 3.1 according DIN EN 10204 with calibration report

Tension Ranges
ModelRanges Measuring Head Width* mmSCHMIDT Calibration Material**MTC***
DX2-50 10-50 cN 66PA: 0.12 mm Øno
DX2-120 20-120 cN 66PA: 0.12 mm Øno
DX2-200 20-200 cN 66PA: 0.12 mm Øno
DX2-400 20-400 cN 66PA: 0.20 mm Øno
DX2-1000 50-1000 cN 66PA: 0.30 mm Øyes
DX2-2000 200-2000 cN 116PA: 0.50 mm Øyes
DX2-5000 400-5000 cN 116PA: 0.80 mm Øyes
DX2-8000 1-8 daN 116PA: 1.00 mm Øyes
DX2-10K 2.5-10 daN 116PA: 1.00 mm Øyes
DX2-20K-L 5-20 daN 216PA: 1.50 mm Øyes
Other tension ranges and measuring head widths available on request.
Other units of measure available, such as g or kg.
* Depending on model, either width of filament guide or outer distance between outside guide rollers
** Suitable for 95% of applications - PA = Polyamide Monofilament
***MTC = Material Thickness Compensator

Special calibration using customer supplied samples is recommended, if process material differs significantly from the SCHMIDT calibration material in diameter, rigidity or shape. For this purpose a material sample of about 5 m should be supplied.

Options
Code A: Air DampingCode L: Special LeverCode M: Memory Pointer

This adjustable mechanical air dashpot is recommended for applications in which great fluctuations of the measured tension occur, as in spooling and winding machines.
This assures steady tension readings on the scale.

Facilitates acquisition of the running material when measuring high tensions.
Reduces force necessary to extend outer rollers: Recommended for tension ranges of 10 daN and higher.

Retains the highest measured value (PEAK).
Available for mechanical tension meters.

Air DampingSpecial LeverMemory Pointer

Related Products

DX2S Stationary Tension Meter


  • Fixed mount design for continuous measurement
  • DX2S' hard-coated aluminum, V-grooved rollers are rated for speeds up to 2000 m/min or, optionally, up to 5000 m/min
  • Option adjustable "max" & "min" tension detector contacts can provide a low voltage signal when tension exceed user-set limits

More details

DX2S Stationary Tension Meter

Complete Kit
The DX2 Tension Meter is supplied as a complete kit including meter and instruction manual in a foam-fitted hard-plastic carrying case.

Specifications
Calibration:According to SCHMIDT factory procedure
Accuracy:±1% full scale or ±1 graduation on scale
Scale diameter:41 mm
Temperature range:10-45ºC
Air humidity:85% RH, max.
Housing material:Die-cast aluminum
Housing dimensions:188 x 85 x 45 mm (LxWxH)
Weight, net (gross):up to DX2-10K approx. 470 g (1000 g)
DX2-20K-L approx. 580 g (2000 g)
Maximum Speed:2000 m/min (Standard)
2500 m/min (U)

Buy Now
Products

Product
132480
DX2-50 - Tension Meter 10-50 cN

130794
DX2-120 - Tension Meter 20-120 cN

132500
DX2-200 Tension Meter 20-200 cN

130393
DX2-400 Tension Meter 20-400 cN

125863
DX2-1000 Tension Meter 50-1000 cN

130031
DX2-2000 Tension Meter 200-2000cN

126908
DX2-5000 Tension Meter 400-5000cN

130057
DX2-8000 Tension Meter 1000-8000cN

134889
DX2-10K Tension Meter 2.5-10 daN

130682
DX2-20K-L Tension Meter 5-20 DaN

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
