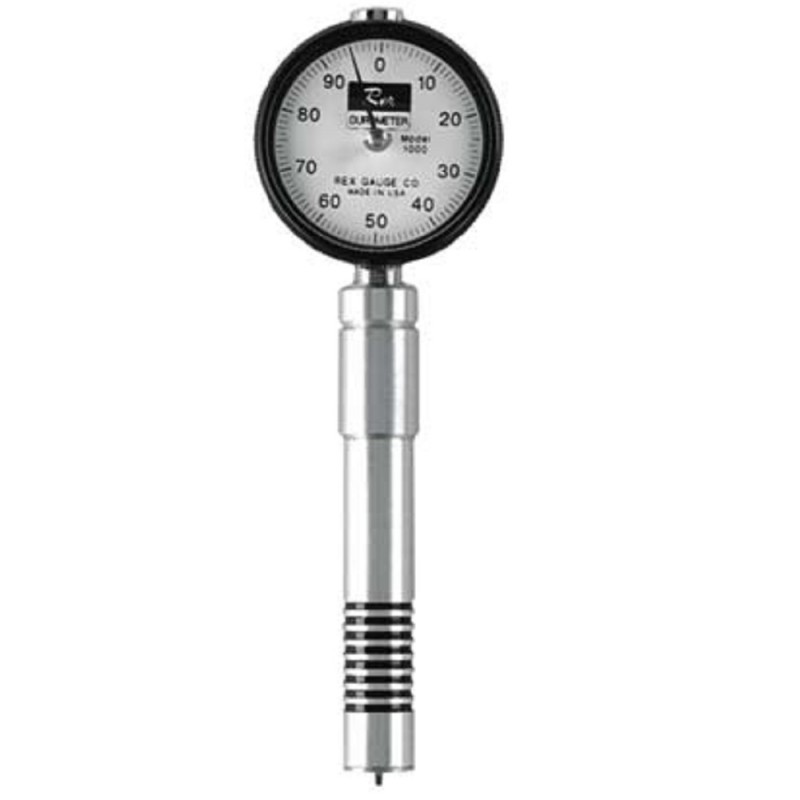

RX-1000 Mini-Dial Durometer


Made in the USAThe RX-1000 Mini-Dial Durometer is both compact and easy to use. Its small dial face and included leather clip-on carrying case make it easy for an inspector to carry the gauge- for work around the shop, or out in the field. The RX-1000 durometer holds the maximum reading until reset by pressing the button at the top of the gauge.
The max-hold feature and small dial size make the RX-1000 a good choice for hard to reach places, or for out of sight testing.

All RX-1000 models are supplied with a NIST traceable calibration certificate.



Features
  • Includes NIST-Traceable Calibration Certificate
  • Increments of 1 from 0-100
  • Furnished with a leather carrying case
  • Easily fits into your pocket or clipped on belt
  • One year warranty
  • Conforms to ASTM D-2240
  • Small face
    (42.5 mm / 1.675" Diameter)

Durometer Test Stands

durometer test stands We offer a complete line of durometer test stands. The stand, when used in conjunction with a Durometer, eliminates operator error sometimes associated with hand-held durometer testing. Our stands feature a load weight for the proper testing pressure as noted in ASTM D2240, and a quick-lock column for easy adjustment. Click here for more info on Durometer Test Stands.

Related Products

RX-TBK-A Type A Durometer Test Block Kit


  • Enables the user to perform a quick check for proper durometer operation

More details

RX-TBK-A Type A Durometer Test Block Kit

Cic-Duro Durometer Calibration


  • Exclusively NIST-certified testing equipment
  • Possibility to adjust and repair

More details

Cic-Duro Durometer Calibration

RX-DIN-FA ASTM to DIN 53505 Adapter for RX durometers


  • Special attachment gives you two gauges in one model.
    With attached, the gauge confirms to DIN 55305 norm.
    When taken off, the gauge is conform ASTM D2240.

More details

RX-DIN-FA ASTM to DIN 53505 Adapter for RX durometers

Available Models
Type Indentor Shape Force
A



Flat cone point, 35º Included Angle
Soft rubber, plastics, and elastomers, printer's rolls.
822 Gr
B



Sharp cone point, 30º Included Angle
Harder elastomers and plastics. Paper and fibrous materials, Use above 93 Duro A.
822 Gr
C



Flat cone point, 35º Included Angle
Medium hard elastomers and plastics. Also useful to avoid surface marks.
4536 Gr
D



Sharp cone point, 30º Included Angle
Hard rubber and plastics such as thermo plastics, flooring and bowling balls.
4536 Gr
DO



3/32" Spherical
Dense granular material, textile windings.
4536 Gr
O



3/32" Spherical
Very soft elastomers, textile windings, soft granular materials. Use below 20 Duro A.
822 Gr

Buy Now
Products

Product name
Price
Quantity
RX-1000-A Type A Durometer
€ 387,00
RX-1000-B Type B Durometer
€ 436,00
RX-1000-C Type C Durometer
€ 436,00
RX-1000-D Type D Durometer
€ 387,00
RX-1000-DO Type DO Durometer
€ 436,00
RX-1000-O Type O Durometer
€ 436,00

Accessories

Product name
Price
Quantity
RX-DIN-FA - ASTM to DIN 53505 foot adapter
€ 137,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
