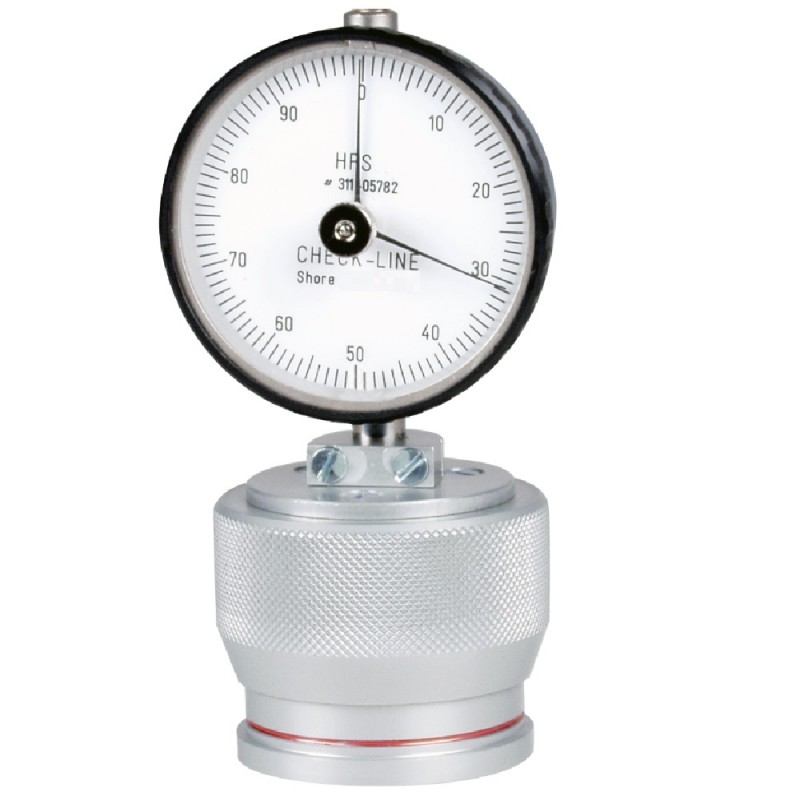

HP Series Shore Durometer


Made in GermanyThe HPS Durometers measure the hardness and/or firmness of parts and test samples, e.g. rubber parts, plastic, elastic materials, textiles, printing rolls etc.

This unit is designed in accordance with ASTM and DIN quality standards which specifies the bottom contact area (working diameter), sensing pin configuration and internal spring forces. Additionally, the displacement of the sensing pin, relative to the dial indicator, is specified by these standards.

The HPS gauges work with an analog dial indicator calibrated for a range of 0-100 Shore units.
Min/Max markers are available to provide a visual indication of the acceptable hardness range.

All Checkline Durometers feature a unique spring-operator test pressure shell, which helps insure that similar test pressures are used for each measurement. This system significantly enhances the measurement repeatability, especially between different operators.

Oversized flat bottom surface makes position of working face (area of contact as specified in ASTM/DIN Standards) convenient and consistent which limits variability between operators.

Available Scales: A, B, C, D, DO, O

Conforms to ASTM D-2240.


Easy To Operate




Measuring Suggestions

1. Whenever possible, a Durometer measurement should be taken at least 12 mm (approx. 0.500") in from the edge of a sample, as the hardness characteristic of any sample tends to change at the edges.
2. Whenever possible, the thickness of a sample should exceed 6 mm (approx. 0.250"). If the sample is thinner then this, then the sample can be backed with a sample of the same material to increase the thickness.
3. Test Coupons or test blocks (rubber or plastic) should not be used for calibration verification. As all samples are subject to characteristic changes over time along with temperature and lighting conditions, the rated Shore value when supplied as new can and will vary with age. Proper calibration verification requires independent confirmation of the internal spring forces along with the verification of the pin displacement vs. the indicated value on the scale.

Related Products

RX-TBK-A Type A Durometer Test Block Kit


  • Enables the user to perform a quick check for proper durometer operation

More details

RX-TBK-A Type A Durometer Test Block Kit

PTS-HP Durometer Test Stand


  • Mechanical lever-operated test stand for use when precise positioning is required on the test sample (i.e. o-ring, etc.).
  • Operation is as simple as rotating lever until shell on durometer reaches red line.

More details

PTS-HP Durometer Test Stand

Cic-Duro Durometer Calibration


  • Exclusively NIST-certified testing equipment
  • Possibility to adjust and repair

More details

Cic-Duro Durometer Calibration

Dimensions
Dimensions Durometers HP Series


Complete Kit
The HP series durometer is supplied as a complete kit with:
  • Durometer
  • User Manual
  • Foam-fitted carrying case.
A calibration certificate is optional.

Conformance to International Standards
Model ASTM D2240 DIN 53505 ISO 868 ISO 7619
HP Series-A
HP Series-B
HP Series-C
HP Series-D
HP Series-DO
HP Series-O


Types   Indentor Shape Force
A Flat cone point, 35º Included Angle
Soft rubber, plastics, and elastomers, printer's rolls
822 g
B Sharp cone point, 30º Included Angle
Harder elastomers and plastics. Paper and fibrous materials, Use above 93 Duro A.
822 g
C Flat cone point, 35º Included Angle
Medium hard elastomers and plastics. Also useful to avoid surface marks.
4536 g
D Sharp cone point, 30º Included Angle
Hard rubber and plastics such as thermo plastics, flooring and bowling balls.
4536 g
DO 3/32" Spherical
Dense granular material, textile windings.
4536 g
O 3/32" Spherical
Very soft elastomers, textile windings, soft granular materials. Use below 20 Duro A.
822 g
OO 3/32" Spherical
Light foams, sponge rubber gels, animal tissue.
113 g

Specifications

HPS Shore A

Typical applications:
Hardness of elastomers and rubber etc.
Indenter:
Cone 35°, 1.3 mm Ø
Depth of indentation:
0 - 2.5 mm
Test pressure:
approx. 12.5 N
Measuring spring force:
0.55 - 8.065 N

HPS Shore D

Typical applications:
Hardness of plastic parts and hard rubber
Indenter:
Cone 30°
Depth of indentation:
0 - 2.5 mm
Test pressure:
approx. 50 N
Measuring spring force:
0.55 - 44.5 N

HPS Shore O

Typical applications:
Hardness of elastic materials, printing rolls, medium strength woven textiles made of nylon, orlan, perlon or rayon, etc.
Indenter:
Cone 3/32"
Depth of indentation:
0 - 2.5 mm
Test pressure
approx. 12.5 N
Measuring spring force:
0.55 - 8.065 N

General

Accuracy:
+/- 1 shore unit
Worldwide Standards:
According DIN 53505, ISO 7619, ISO 868, ASTM D 2240
Display range:
0 - 100 Scale
Scale diameter:
56 mm
Working face:
16 mm Ø = 2 cm²
Weight, net (gross):
approx. 300 g (500 g)
Dimensions:
50 x 50 x 110 mm (L x W x H)
Warranty:
1 year

Buy Now
Products

Product name
Price
Quantity
HPSA Shore A Durometer
€ 370,00
HPSB Shore B Durometer
€ 375,00
HPSC Shore C Durometer
€ 375,00
HPSDO Shore DO Durometer
€ 370,00
HPSD Shore D Durometer
€ 370,00
HPSO Shore O Durometer
€ 375,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
