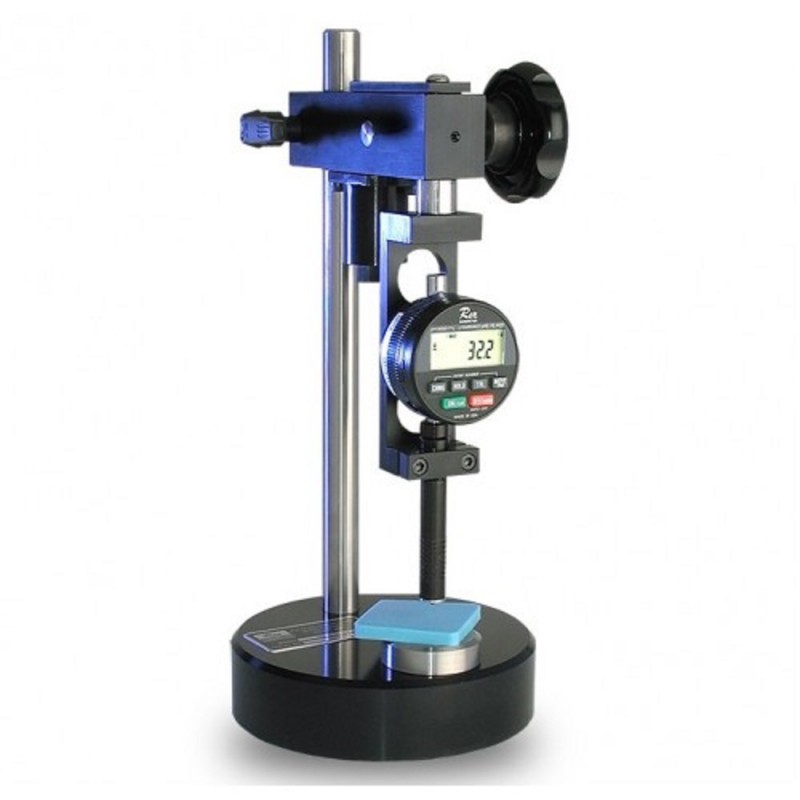

RX-OS-4H Durometer Test Stand

Made in the USACheckline Europe introduces the RX-OS-4H compact operating stand required for the operation of durometers in the OO and OOO scales (as per ASTM D2240). The stand, used in conjunction with our Durometers, eliminates operator errors sometimes associated with shop floor durometer testing.

The stand features a load weight for the proper testing pressure as noted in ASTM D2240, a quick-lock column for easy adjustment plus a damping feature. The dampener lowers the durometer at the same rate for each test, resulting in superior repeatability for all durometer tests.

* Durometer Sold Separately
Compatible with RX-1600 & RX-DD Durometers.

  • Eliminates operator error in the OO and OOO scales
  • Air Dampened Controlled Rate of Descent
  • Stainless steel and anodized aluminum construction
  • Compact size - 13" high x 6" wide
  • Total Weight approximately 4 kg.
  • Made in the USA

Related Products

RX-1600 Precision Durometer

  • Includes NIST-Traceable Calibration Certificate
  • Conforms to ASTM D-2240
  • Full 360 degree sweep

More details

RX-1600 Precision Durometer

RX-DD Digital Durometer

  • Includes NIST-Traceable Calibration Certificate
  • One year warranty
  • Optional Removable Stainless Steel Barrel for Medical and Food Applications

More details

RX-DD Digital Durometer

Sample Clearance Height: 65 mm to Specimen Holder
Depth: 80 mm Durometer Center to Shaft

Buy Now

RX-OS-4H Durometer Test Stand with dampener
€ 1.671,00
RX-OS-4H-E Test Stand With Dampener for AD/DD Durometers
€ 1.310,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
