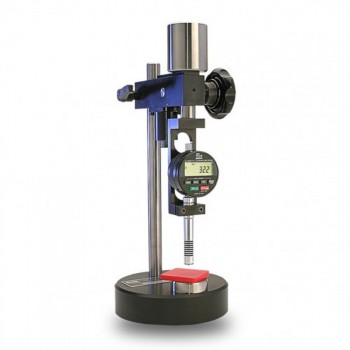

RX-OS-2H Durometer Test Stand


Made in the USACheckline Europe introduces the RX-OS-2H compact operating stand required for the operation of durometers in the A, B, O and E scales (as per ASTM D2240). The stand, used in conjunction with our Durometers, eliminates operator error sometimes associated with shop floor durometer testing.

The stand features a load weight for the proper testing pressure as noted in ASTM D2240, a quick-lock column for easy adjustment plus a dampening feature. The dampener lowers the durometer at the same rate for each test, resulting in superior repeatability for all durometer tests.

* Durometer Sold Separately
Compatible with RX-1600, RX-1700, RX-2000 & RX-DD Durometers.


Features

  • Eliminates operator errors in the A, B, O and E scales
  • Air Dampened Controlled Rate of Descent
  • Stainless steel and anodized aluminum construction
  • Compact size - 13" high x 6" wide
  • Total Weight approximately 4 kg.
  • Made in the USA

Related Products

RX-1600 Precision Durometer


  • Includes NIST-Traceable Calibration Certificate
  • Conforms to ASTM D-2240
  • Full 360 degree sweep

More details

RX-2000 Max-Hand Durometer


  • Includes NIST traceable Calibration Certificate
  • Reads Maximum and Creep
  • Conforms to ASTM D-2240

More details

RX-DD Digital Durometer


  • Includes NIST-Traceable Calibration Certificate
  • One year warranty
  • Optional Removable Stainless Steel Barrel for Medical and Food Applications

More details


Specifications

Sample Clearance
Height: 65 mm to Specimen Holder
Depth: 80 mm Durometer Center to Shaft

Buy Now

Products


Product name
Price
Quantity
RX-OS-2H - Test stand with dampener for RX durometers
€ 1.196,00

RX-OS-2H-E - Test stand with dampener for AD & DD durometers
€ 1.219,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
