CDTK - Concrete Determinator Tech Kit


Compact Moisture Meter Kit For Measuring Surface and In Situ Moisture Content of Concrete Floors and Slabs

A compact kit for instant and precise testing of moisture content both on the surface and within the body of the concrete. The Tramex CMEX5 allows for non-destructive quantitative testing of concrete and comparative testing per ASTM F2659.
The reusable Concrete Moisture “Determinator” Probe used with the CMEX5 allows for in-depth moisture content probe testing within the concrete, down to an extendable depth of up to 4" (100mm), Diameter 3/4” (19mm). The Concrete Determinator Tech Kit comes in a protective carrying case with die-cut foam lining. The Tramex Meters App allows you to GeoTag test results, create, save and share reports and charts.

Concrete Moisture Encounter X5 – CMEX5 Measuring Range
Depth of penetration in concrete                                approx. 20 mm
Moisture content for Concrete                                    0 → 6,9%
Comparative for Gypsum floor screed                       0 → 12
CM Equiv Anhydrite/Concrete                                    0 → 2,7 / 0  → 4,3
Reference scale                                                         0  → 100
Releative Humidity                                                     0  → 99%
        with optional Hygro-i2 probe                              0% → 99%RH +/- 2% @ 25°C
Moisture content for wood (with wood pin probes)    5 → 30%

Concrete Moisture Probe "The Determinator" Measuring Range
Moisture Content for Concrete with Tramex CMEX5: 0 – 6,9%
3 cm probe depth for concrete between 5 – 10 cm
5,7 cm probe depth for concrete between 10 – 15 cm
8,3 cm probe depth for concrete between 15 – 22 cm
10,8 cm probe depth for concrete between 22 – 28 cm


Features
  • Compact kit for surface and in-situ moisture content readings in concrete floors and slabs
  • Includes CMEX5, Concrete Moisture "Determinator" Probe and free iOS/Android App

Complete Kit

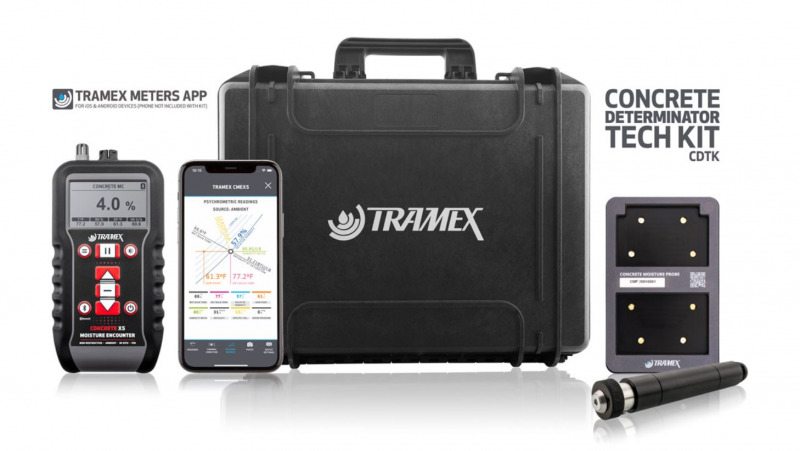

The Concrete Determinator Tech Kit comes in a protective heavy-duty carrying case with die-cut foam lining and includes:

  • Concrete Moisture Encounter X5 – CMEX5
  • Concrete Moisture Probe – "The Determinator"
  • Free iOS/Android App (phone not included)


Specifications
Size 43,5 x 36 x 14 cm
Weight 2,95 kg
Power 2 AA batteries

Downloads

Related Products

CMP - Concrete Moisture Probe CMP – Concrete Moisture Probe


  • Instant and accurate in-situ moisture content measurements
  • The hole diameter required is the same for the Hygro-i2 Relative Humidity tests as per F2170
  • Determines if moisture is coming from below or above the concrete slab surface

More details

CMP - Concrete Moisture Probe CMP – Concrete Moisture Probe

CMEX5 Digital Multi Moisture Meter for Concrete


  • Non-destructive quantitative %MC
  • 4 different measurement modes
  • 5 NDT Scales: Concrete MC, CM Concrete (Carbide Method equivalent for concrete), CM Anhydrite/Gypsum, Gypsum Ref 0-12 and a Reference scale

More details

CMEX5 Digital Multi Moisture Meter for Concrete

Buy Now
Product

Product
Price
Quantity
Tramex Concrete Determinator Tech Kit - CDTK
€ 1.210,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
