MINITEST 735 Coating Thickness Gauge with external probes connected via cable

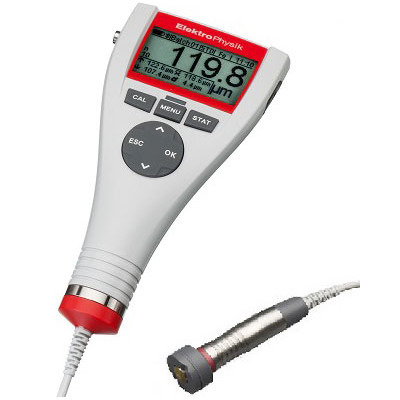

Made in GermanyThe model MiniTest 735 comes with an external sensor.

The MiniTest 735 coating thickness gauge is the solution to all your coating thickness problems where a reliable finish and perfect product appearance play a major role for long-term value and success, e.g. in the automotive and shipbuilding industry, steel- and bridge construction or in the electroplating industry, to name a few industries.

The MiniTest 735 is ergonomically designed and its rounded shape allows the MiniTest gauge to fit perfectly into the palm of your hand. It also features a measuring speed setting option that allows adjustment to changing requirements for utmost efficiency and optimum productivity: taking many readings in a short time with medium precision or taking only a few readings with increased accuracy.

The MiniTest 735 facilitates non-destructive coating measurement of non-magnetic coatings (paint, synthetic material, chromium etc.) on ferromagnetic substrates (steel) and of insulating coatings (varnish, enamel, synthetic material, anodizing aluminum etc.) on conductive substrates (aluminum, copper, austenitic stainless steel).

Its sensors perfectly compensate for irregular shaped surfaces thanks to the predefined calibration methods that are available to adapt to a wide range of different surface conditions and accuracy requirements.

The MiniTest 735 gauge is equipped with the new SIDSP® sensors.
SIDSP® is a world wide leading technology for coating thickness sensors. With this new technology, another new benchmark for innovative coating thickness measurement has been set.

SIDSP® stands for Sensor-Integrated Digital Signal Processing:
A technology where the signals are completely processed into digital form inside the sensor at the time and point of measurement.
SIDSP® sensors are manufactured according to completely new state-of-the-art production techniques.

Unlike conventional techniques, the SIDSP® sensors create and control the excitation signals for the sensor head inside the sensor. The return signals are directly digitally converted and processed at a 32 bits accuracy to give you the complete coating thickness value. For this technique, highly sophisticated methods of digital signal processing are used as known from modern telecommunication technologies (mobile phone networks) such as digital filters, base band converting, averaging, stochastic analysis, etc. This enables the user to achieve a signal quality and precision unmatched so far with analogue signal processing. The thickness value is digitally transmitted via the sensor cable to the display unit. Setting a new standard in coating thickness measurement, this technology offers decisive advantages and improvements compared to the commonly used analogue sensors.

The new SIDSP® sensors guarantee the following:
- High stability of measuring signals
- SIDSP® sensors’ characteristic curves feature high accuracy
- SIDSP® sensors provide excellent adaptability
- SIDSP® N and FN sensors compensate for substrate conductivity
- SIDSP® sensors are highly insensitive to changes in temperature
- SIDSP® sensors are wear-resistant
- Future-oriented solutions

The delivery of the device includes the data transfer software MSoft 7 basic.



Features
  • Correct readings with interference free measurement with precise evaluation through SIDSP®
  • External sensor
  • Automatic substrate identification with FN sensors
  • Efficient temperature compensation
  • High precision characteristic curves achieved during the manufacturing process by calibrating up to 50 calibration points
  • Large memory capacity for storing up to 10,000 readings
  • Readings and statistical values can be called-up individually
  • Easy menu-guided operation, 20 menu languages available
  • Measurement data can be transferred by Bluetooth or USB to PCs, tablets or smart phones.
  • Future-proof through downloadable sensor and gauge software updates
  • Audible and visual (red and green LED) alarms
  • Large, easy-to-read backlit graphics display
  • Display orientation can rotate 180° so readings will never be upside down
  • Factory set, zero, 2-point, 3-point and roughness calibration
  • SSPC-PA2, ISO, Swedish (SS 18 41 60), Australian (AS 3894.3), ISO 19840 and ASTM D 7091 (formerly D 1186 and D 1400)

Specifications
Sensor TypeExternal sensor
Substrate IdentificationYes, with FN sensors
SIDSP® sensorYes, for increased accuracy and reproducibility
Sensor characteristicsHigh-accuracy sensor characteristics through up to 50 calibration points during the sensor manufacture
Individual temperature compensationYes
Number of memories10, user-definable memory arrangement according to batches
Total memory capacitymax. 10,000
Memory batchesInclude readings, a defined calibration mode, parameters and statistics calculated from batch readings
Statistical evaluationNumber of readings, minimum, maximum, mean value, standard deviation, coefficient of variation
Single reading statisticsBlock value statistics (norm-conforming/ user-configurable), stored readings and statistical values can be called seperately, print-out readings and statistics on MiniPrint 7000 data printer, transfer of readings and statistics to a PC
Calibration modesFactory calibration, zero-point, 2-points, 3-point calibration, calbiration method "rough", user-adjustable off-set value, user-adjustable correction value for substrate roughness
International calibration proceduresISO, SSPC, "Swedish", "Australian"
Measuring unitsmetric (μm, mm, cm) / imperial (mils, inch, thou) switchable
DisplayLarge graphical display, backlit, 180° rotatable
MenuUser-friendly, 25 languages
SoftwareSensor and gauge software updates available via download
Measuring rate/ accuracyUser adjustable to standard, quick, high precision
Thickness identificationContinuous mode for quick identification of changes in thickness
Automatic switch-offBattery saving mode with adjustable switch-off mode
ProtectionIP40
Operating temperature–10°C - 60°C
Storage temperature– 20°C - 70°C
Data interfaces Bluetooth® 4.0, Bluetooth Smart®, Mini-USB
Power supply2 x AA (Mignon cells), rechargeable NiMH accu batteries type AA/HR6 (as an option)
Norms and standardsDIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882, 19840, ASTM B 244, B 499, D7091, E 376, AS 3894.3, SS 1841 60, SSPC-PA 2
Dimensions157 mm x 75,5 mm x 49 mm
Weightapprox. 210 g
Warranty1 year

Sensor Models & Measuring principle
Sensor Model F:
For measuring coating thickness on ferrous metals
Measuring principle: Magnetic induction principle (Ferrous)

Sensor Model N:
For measuring coating thickness on non-ferrous metals
Measuring principle: Eddy-current principle (Non-Ferrous)

Sensor Model FN:
For measuring coating thickness on ferrous & non-ferrous metals
Measuring principle: Magnetic induction principle & Eddy-current principle

Technical Data - Probes
Measuring procedure Sensor model Type Measuring range

Uncertainty (of reading)
referring to multi point calibration

Minimum measuring spot MiniTest 725 MiniTest 735 MiniTest 745
Magnetic-induction sensors F 0.5M-0°
F 0.5M-45°
F 0.5M-90°
A 0 ... 0.5 mm ± (0.5 μm + 0.75 %) ø 3 mm
F1.5 B / E 0 ... 1.5 mm ± (1.0 μm + 0.75 %) ø 5 mm
F 1.5-90° C 0 ... 1.5 mm ± (1.0 μm + 0.75 %) ø 5 mm
F2 B / E 0 ... 2.0 mm ± (1.5 μm + 0.75 %) ø 10 mm
F2.6 B / E 0 ... 2.6 mm ± (1.0 μm + 0.75 %) ø 5 mm
F 5 B / E 0 ... 5.0 mm ± (1.5 μm + 0.75 %) ø 10 mm
F 15 D 0 ... 15 mm ± (5.0 μm + 0.75 %) ø 25 mm
Eddy current sensors N 0.3M-0°
N 0.3M-45°
N 0.3M-90°
A 0 ... 0.3 mm ± (0.5 μm + 0.75 %) ø 3 mm
N 0.7 B / E 0 ... 0.7 mm ± (1.0 μm + 0.75 %) ø 5 mm
N 0.7-90° C 0 ... 0.7 mm ± (1.0 μm + 0.75 %) ø 5 mm
N 2.5 B / E 0 ... 2.5 mm ± (1.5 μm + 0.75 %) ø 10 mm
N 7 D 0 ... 7.0 mm ± (5.0 μm + 0.75 %) ø 20 mm
Dual sensors FN 1.5 B / E F: 0 ... 1.5 mm
N: 0 ... 0.7 mm
± (1.0 μm + 0.75 %) ø 5 mm
FN 1.5-90° C F: 0 ... 1.5 mm
N: 0 ... 0.7 mm
± (1.0 μm + 0.75 %) ø 5 mm
FN 2.6 B / E F: 0 ... 2.6 mm
N: 0 ... 1.0 mm
± (1.0 μm + 0.75 %) ø 5 mm
FN 5 B / E F: 0 ... 5.0 mm
N: 0 ... 2.5 mm
± (1.0 μm + 0.75 %) ø 10 mm

Probes


Dimensions
Dimensions-MINITEST 735


Complete Kit

The MiniTest 735 is supplied as a complete kit with:

  • MiniTest 735 gauge
  • SIDSP® sensor (according to choice)
  • Calibration set with calibration standards and zero reference plate(s)
  • Instruction manual in German, English, French and Spanish on CD
  • 2 Mignon/ AA batteries
  • Manufacturer’s Certificate
  • MSoft 7 basic data transfer software


Accessories

Cps Certified Shim Set


  • Calibration Foils for Coating Thickness Gauges

More details

Cps Certified Shim Set 126033

Buy Now
Products

Product
Price
Quantity
135514
MiniTest 735 - with external probe F 1.5
€ 1.393,00
134122
MiniTest 735 - with external probe N 0.7
€ 1.401,00
134116
MiniTest 735 - with external probe F2 HD
€ 1.278,00
137162
MiniTest 735 - with external probe F 2.6
€ 1.326,00
134393
MiniTest 735 - with external probe F5
€ 1.278,00
134123
MiniTest 735 - with external probe F5 HD
€ 1.278,00
134120
MiniTest 735 - with external probe F15
€ 1.963,00
135693
MiniTest 735 F0.5M-0 with straight micro probe F 0.5
€ 1.373,00
135694
MiniTest 735 F05M-45 - with external 45° micro probe F 0.5
€ 1.373,00
135695
MiniTest 735 F05M-90 - with external 90° micro probe F 0.5
€ 1.373,00
135521
MiniTest 735 - with external Tube probe N 0.7-90
€ 1.789,00
136168
MiniTest 735 - with external probe N 0.3M, straight version
€ 1.449,00
136169
MiniTest 735 - with external probe N 0.3M, version 45°
€ 1.449,00
136170
MiniTest 735 - with external probe N 0.3M, version 90°
€ 1.449,00
134118
MiniTest 735 - with external probe N 2.5
€ 1.447,00
134115
MiniTest 735 - with external probe FN 1.5
€ 1.700,00
135262
MiniTest 735 - with external probe FN2.6
€ 1.826,00
134124
MiniTest 735 - with external probe FN5
€ 1.629,00
137101
MiniTest 735 - with external probe FN5 HD - for rough environments
€ 1.629,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
