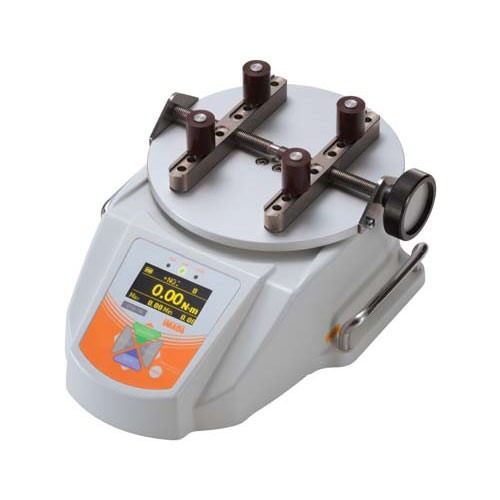

CAP-DTX Digital Cap Torque Tester


The CAP-DTX models are available in 2 versions:

  • CAP-DTXS (standard)
  • CAP-DTXA (advanced)

The CAP-DTX digital cap torque tester has an EL (electro luminescent) display which can be clearly read under any lighting circumstances.
This cap torque tester can capture up to 2000 reading per second and has an extreme overload capacity of 200%. Together with the heavy duty steal housing this is one of the most rugged cap torque testers available today.

Cap testers include AC adapter/charger and built-in NiCad rechargeable batteries, 2,5 cm high standard pegs (optional long pegs available).


Features
  • Available outputs: RS-232, Digimatic and Analog
  • Overload capacity 200% of F.S.
  • Measure torque of opening and closing PET bottles an bins
  • Selectable units: N-m, N-cm, kgf-m, kgf-cm, Lb- in, ozf-in
  • Grip clamps diameters from 20-160mm
    Optional small tables clamp diameters from 7mm-50mm available
  • High repeatability by high speed sampling rate
  • Includes NIST traceable calibration certificate
  • Display of opening or close torque
  • ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
  • 1,000 data memory
  • Programmable high/low setpoints with color-coded LED indicators and output signal

CAP-DTX Feature Comparison Chart
Electroluminescent display (ELD) cap dtx cap dtx
Functions CAP-DTXS CAP-DTXA
Peak hold (Clockwise and Counterclockwise)
Comparator (OK/NG judgment )
Reversible display
Sign inversion
Time display
Internal memory 1000 data 1000 data
Dumping
Zero clear timer
+NG alarm
Auto shut off
1st/2nd peak -
Angle detection at torque peak value -
Angle zero reset at selected torque -
Output CAP-DTXS CAP-DTXA
Serial (RS232C)
Mitutoyo digimatic
2 VDC analog output (D/A)
USB
Comparator 3 steps (-NG/OK/+NG)
Overload warning
Sub comparator 2 steps (output of large or small judgment) -
Memory in USB flash drive
[USB flash drive is not included]
-
Angle displacement -

Tension Ranges
Model lbf/in Kgf-cm N-cm
CAP-DTX-15 15.00 (0.01)20.00 (0.01)200.0 (0.1)
CAP-DTX-40 40.00 ( 0.01)50.00 (0.01)500.0 (0.1)
CAP-DTX-85 85.0 ( 0.1)100.0 ( 0.1)1000 (1)

Downloads

Specifications
Accuracy:± 0.5% Full scale ± 1 digit
Display :4-digits
Display update:10 times /sec
Sampling rate:Maximum 2000 data/ sec
Selectable units:N-m, N-cm, kgf-m, kgf-cm, Lb- in, ozf-in
Safe overload rating: 200% Full scale
Overload warning:Approx.110%F.S. (Warning message and alarm )
Battery:8 hours (8 hours full charge)
Battery Indicator: Indicates three charge states, high, medium,and low
Auto Zer Reset:1,0 to 60 seconds (selectable)
Warranty: 2 years
Output signal:RS232C (8,1,N,19200), analog ± 2V DC, Open collector 4x (+NG, Ok, -NG, OVL), max. 30V DC, 10mA, Mitutoyo Digimatic
Temperature range:0 - 40°C
Air humidity:20 - 80% RH, max.
Housing dimensions: (approx.)305x233x119 mm (LxWxH)
Max sample diameter20 - 160mm
Memory:1000 data points (max)
Pegs2.5 cm standard, 10 cm optional
Gross WeightAppr. 4,5 kg

Buy Now
Products

Product name
Price
Quantity
CAP-DTXS-15 - Digital Cap Torque Tester Standard
€ 1.735,00
CAP-DTXS-40 - Digital Cap Torque Tester Standard
€ 1.735,00
CAP-DTXS-85 - Digital Cap Torque Tester Standard
€ 1.735,00

Accessories

Product name
Price
Quantity
ISO-17025 - Upgrade from 3 point NIST traceable cert to ISO-17025 Certificate
€ 182,00
CB-108 - Analog cable for CAP-DTX
€ 85,00
CB-208 - RS-232 Cable for CAP-DTX
€ 86,00
CB-308 - Digimatic SPC Cable for CAP-DTX
€ 86,00
TB-P - Urethane-Coated Pegs - 2,5 cm for CAP-DTX (Set of 4)
€ 115,00
TB-01P - Stainless Steel Pegs - 2,5 cm for CAP-DTX (Set of 4)
€ 205,00
TB-02P - Urethane-Coated Pegs - 7 cm for CAP-DTX (Set of 4)
€ 250,00
TB-04P - Urethane-Coated Pegs - 10 cm for CAP-DTX (Set of 4)
€ 250,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
