DN1 Durable tension meter for high tensions


Made in GermanyDurable tension meters for a wide range of applica-tions in the textile, fiber and wire industries.

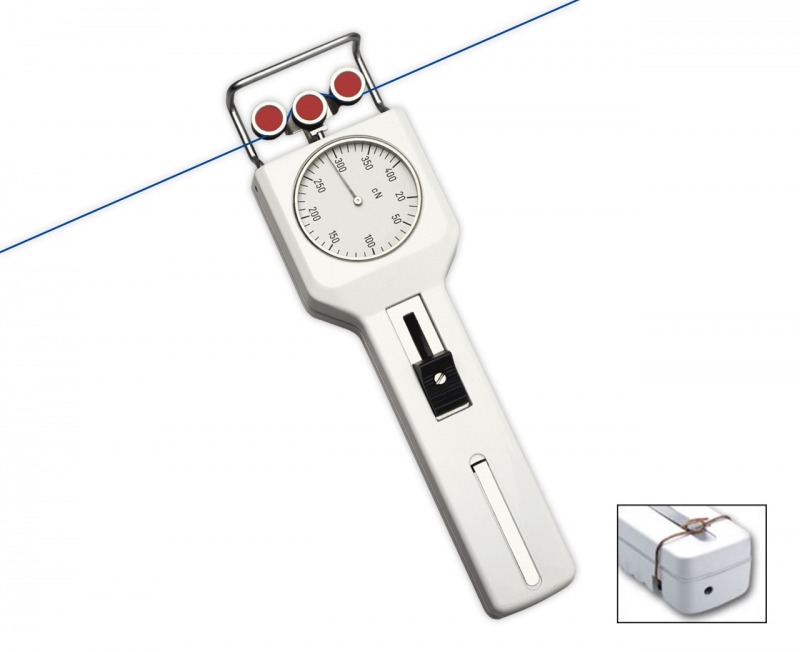

The DN1 analog tension meter shows changing and fluctuating tensions fast, itenables an optimal process adjustment .The built-in material thickness compensator compensates different material diameters for a particular range (only DN1-1000 and higher ranges). The scale (54 mm Ø) is easy to read, the linearized scale provides a clear reading. The filament guide and roller shifting mechanism ensure easy acquisition of the running material.


Features
  • Large, easy to read scale (54 mm Ø)
  • Shock-resistant movement
  • Filament guide and roller shifting mechanism ensure easy acquisition of the running material
  • Ball-bearing mounted, V-grooved guide rollers
  • Special calibration is available
  • Specific Test Report with calibration test report optionally available
  • Linearized scale provides a better reading
  • Built-in material thickness compensator improves accuracy for changing diameters on DN1-1000 and higher ranges
  • Everything in operator's view:
    - the guide rollers
    - the measured material
    - the readings
  • Each instrument is individually calibrated for highest accuracy
  • Rugged aluminium housing

Tension Ranges
ModelRanges Measuring Head Width* mm SCHMIDT Calibration Material**     MTC**
DN1-120 20-120 65 PA: 0.12 mm Ø
DN1-200 20-200 65 PA: 0.12 mm Ø
DN1-400 20-400 65 PA: 0.20 mm Ø
DN1-1000 50-1000 65 PA: 0.30 mm Ø
DN1-2000 200-2000 116 PA: 0.50 mm Ø
DN1-3500 400-3500 116 PA: 0.80 mm Ø
DN1-5000 400-5000 116 PA: 0.80 mm Ø
DN1-8000 500-8000 116 PA: 1.00 mm Ø
DN1-10K 2-10 daN 116 PA: 1.00 mm Ø
DN1-20K-L 5-20 daN 216 PA: 1.50 mm Ø
DN1-30K-L 5-30 daN 265 PA: 1.50 mm Ø
DN1-50K-L 5-50 daN 265 Steel rope:
1.50 mm Ø (7x7x0.20)

Other tension ranges and measuring head widths available on request.
Other units of measure available - g or kg.
* Depending on model, either width of filament guide or outer distance between outside guide rollers
** Suitable for 95% of applications - PA = Polyamide Monofilament
***MTC = Material Thickness Compensator

Special calibration using customer supplied samples is recommended, if process material differs significantly from the SCHMIDT calibration material in diameter, rigidity or shape. For this purpose a material sample of about 5 m should be supplied.

Rollers
CodeRoller materialLine Speed
Code: Standard Hardcoated aluminium 2000 roller
R12013 Plasma-coated aluminium
Standard for Models DN1-30K-L and DN1-50K-L only
1000 } roller
K Hardcoated aluminium 3500 } roller
H Plasma-coated aluminium 5000 } roller
T Plastic (POM) black 1000 } roller
W Nickel-plated steel 1000 } roller
ST Hardened steel 1000 } roller
B Tempered steel for tire cord 1000 } roller
CE Ceramic 1000 } roller
ASY Hardcoated aluminium , asymmetrical groove 1000 } roller
U Hardcoated aluminium (Radius R3) 2000 } roller

Options
Code A: Air DampingCode L: Special Lever

This adjustable mechanical air dashpot is recommended for applications in which great fluctuations of the measured tension occur, as in spooling and winding machines.
This assures steady tension readings on the scale.

Facilitates acquisition of the running material when measuring high tensions.
Reduces force necessary to extend outer rollers: Recommended for tension ranges of 10 daN and higher.

Air DampingSpecial Lever

Complete Kit
Delivery includes:
Tension meter with carrying case, operating instructions in English or German as requested

Note: Models DN1-30K and DN1-50K are delivered with roller R12013 as default

Dimensions
Dimensions DN1

Dimensions-2Analog Tension Meters DN1

Specifications
Calibration:According to SCHMIDT factory procedure
Accuracy:±1% full scale (FS) or ±1 graduation on scale
Scale diameter:54 mm
Temperature range:10-45ºC
Air humidity:85% RH, max.
Housing material:Die-cast aluminium
Housing dimensions:220 x 74 x 42 mm (L x W x H)
Weight, net (gross):up to DN1-10K approx. 700 g (1200 g)
DN1-20K-L and higher ranges (approx.) 900 g (2200 g)
