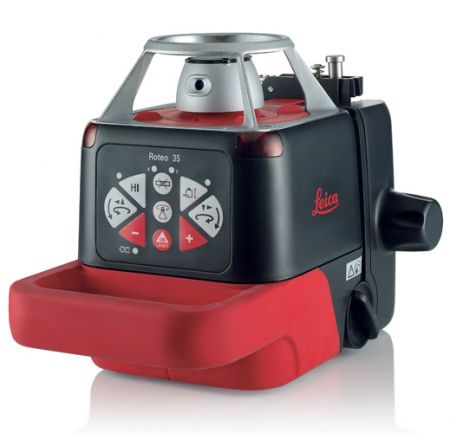

LEICA ROTEO 35 Leica Roteo 35 all-in-one Rotating Laser

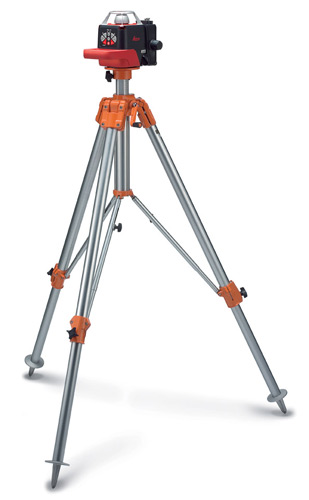

The Leica Roteo 35 is an all-round perfection for interior works. On ceilings or walls, on floors or using a tripod, the Leica Roteo 35 rotating laser is a multi-talented performer. You can use it for many tasks in interior works where levelling or aligning is required.
Strong performance on all levels:
The impressive features of the Leica Roteo 35 include: The integrated motorised wall mount makes it easy to set the working height to millimetre accuracy using the remote control. Horizontal and vertical lines or an exact 90° angle – it is no problem for the Leica Roteo 35. The rotating laser can automatically self-level for inclined set-ups of up to ± 4,5°. Scanning mode makes work easier by improving visibility in bright lighting conditions.
Features
- Simple to operate
Intuitive user interface through uniform colour coding (laser, remote control and receiver) - 90° plumb beam
For alignment over a control point and creating 90° angles - Fully automatic horizontal and vertical laser
Manual levelling during set-up is not necessary - Drop damage protection
A strong aluminium cage protects the laser head from damage - Motorised wall mount
For millimetre-accurate setting of the working height - Outstanding battery life
For working without interruption
 |

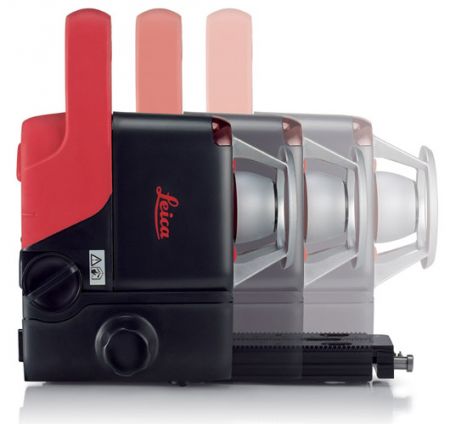

Installing ceilings and walls With its motorised wall mount, the Leica Roteo 35 can be positioned on the wall and moved effortless backwards and forwards using the remote control, allowing you to quickly erect ceilings and drywalling. |
 |

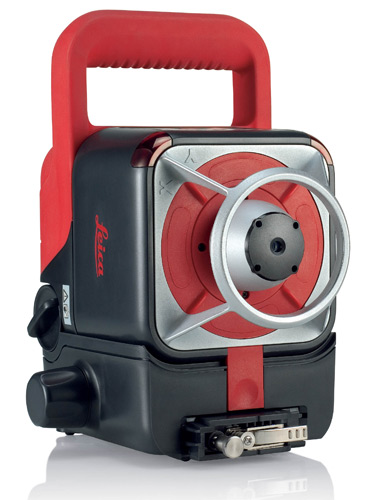

Marking out right angles The Leica Roteo 35 can also be used to good effect vertically. The combination of a vertical 360° reference plane and plumb beam simplifies layout and staking out work, allowing you to work more accurately and efficiently on interior works. |
 |

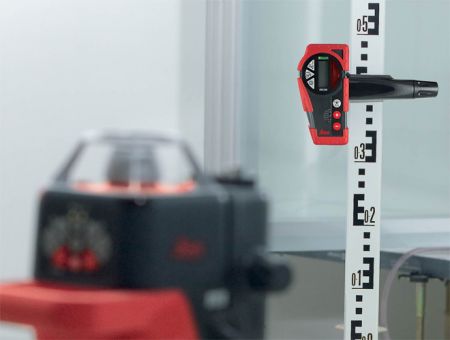

Aligning furniture and windows The Leica Roteo 35 simplifies the task of aligning furniture. The laser beam provides a good visible reference. The optional laser receiver is particularly useful for long distances and very bright lighting conditions. |
 |

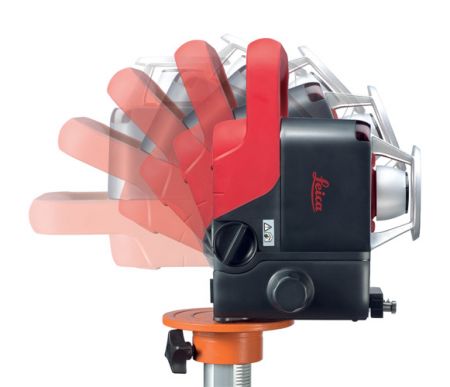

Stairs and roof pitches You can position the laser manually or with the help of the motorised wall mount at any angle between 0° and 90°, allowing you to work without any problems on stairs and roof pitches.td> |
 |

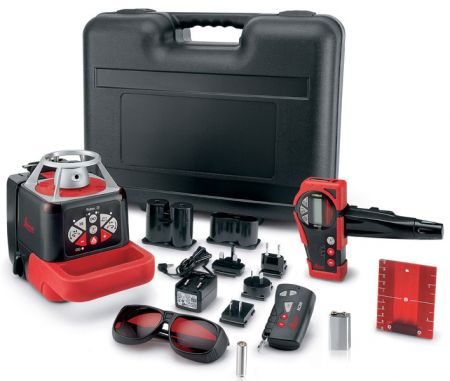

Roteo 35 Basic Kit - Leica Roteo 35 Laser - Protective Case - Red Glasses - Alcaline battery holder - Rechargeable batteries - Charger for Leica Roteo 35 - Rod Eye Classic, standard laser detector |
 |

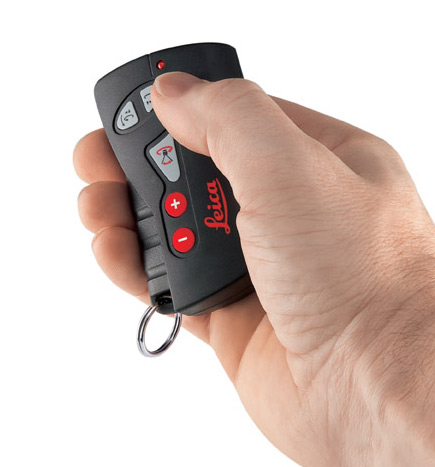

Roteo 35 Wallmount Kit - Leica Roteo 35 Laser - Motorized Wall Mount - RC350 Remote Control with battery - Rechargeable batteries - Charger for Leica Roteo 35 - Target Plate - Protective case - Red Glasses - Alcaline battery holder |
 |

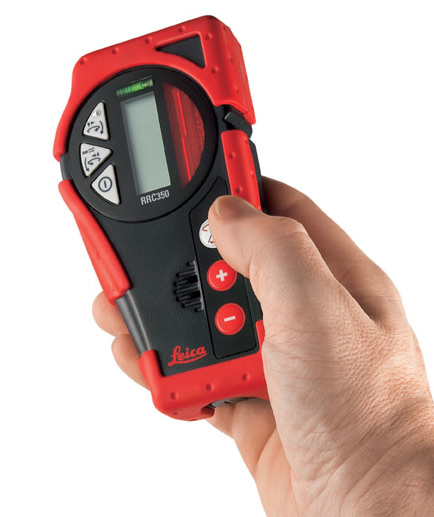

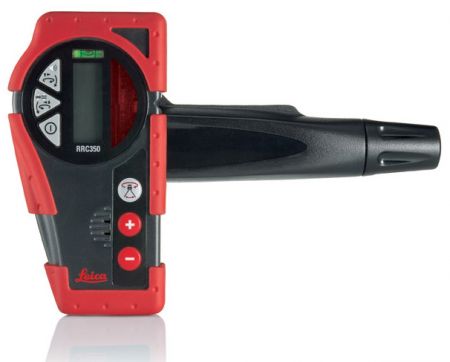

Roteo 35 Wallmount Kit Premium - Leica Roteo 35 Laser - Motorized Wall Mount - RC350 Receiver/Remote Combo with batteries and clamp - Rechargeable batteries - Charger for Leica Roteo 35 - Target Plate - Protective case - Red Glasses - Alcaline battery holder |
Accessories
Leica CLR290 Clamp rod
- For stepless positioning of lasers at different heights up to 2.90m
- Universal mounting platform for Leica Lino and Roteo lasers.
Lino: P3, P5, L2, L2+, L2P5, L360
Roteo: 20HV, 35, 35G - Platform adaptable for 5/8 and 1/4 threads
More details
Specifications
| Range: | up to 300m (1000ft) dia. with laser receiver |
| Range remote: | 30 m |
| Self-levelling accuracy: | 3 mm at 30 m |
| Self-levelling range: | ± 4.5° |
| Rotation speed: | Variable (5 speeds) |
| Scanning angle: | 2° to 36° |
| Battery life: | 50 hours (rechargeable) up to 160 hours with alkaline batteries |
| Battery types: | D-cell (mono), 2 x 1.5 V or rechargeable battery pack |
| Protection class: | IP 54, dust- and splash-proof |
