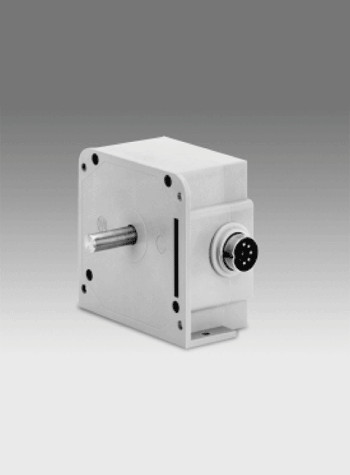

G-305 Incremental Encoder with 1 or 2 pulse tracks
The G 305 is a compact, mechanically driven rotary encoder. It uses optic electronics to convert the rotary movements into pulses. The G-305 has two tracks. Features
- For axial or radial mounting
- Simple encoder with low resolution
- Drive shaft also protruding on both sides
Signals with clockwise rotation when looking at the flange.
| Plug | Cable color | Assignment |
|---|---|---|
| Pin 1 | brown | UB |
| Pin 2 | blue | GND |
| Pin 3 | black | Track A |
| Pin 4 | beige | Track B (2 impulse tracks ) n.c. (1 impulse track ) |
Dimensions
Specifications
| Operating voltage | 10...30 VDC |
| Current consumption | Max. 40 mA (without load) |
| Resolution | Up to 120 pulses |
| Scanning frequency | Max. 10 kHz with 1 pulse track Max. 6 kHz with 2 pulse tracks |
| Output stages | Push-pull |
| Speed | Max. 6000 rpm |
| Torque | < 0.002 Nm |
| axial | < 5 N |
| radial | < 10 N |
| Flange/housing | Glass-fiber reinforced plastic |
| Weight | Approx. 130 g |
| Operating temperature | 0...+60 °C |
| with housing plug | IP 30 |
| PG with cable | IP 52 |
| Humidity | Max. relative humidity 95 %, non-condensing |
