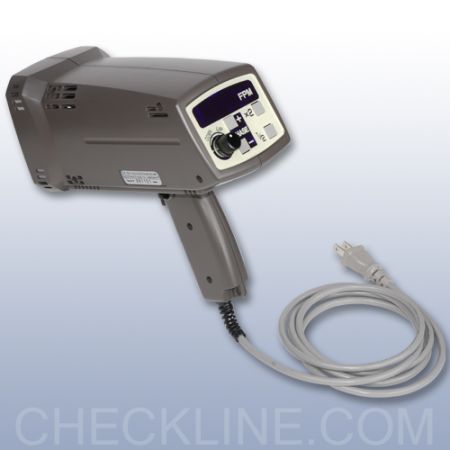

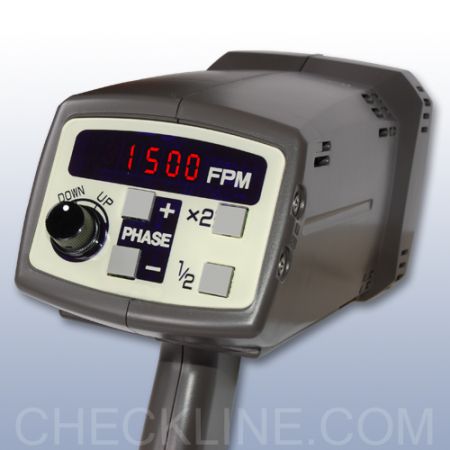

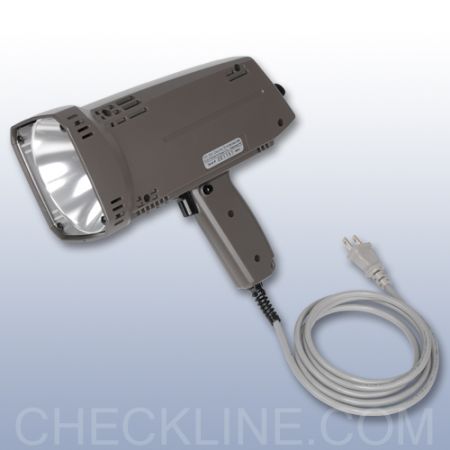

DT-721 Low Cost Digital Stroboscope - AC Powered
The DT-721 Low Cost Digital Stroboscope - AC Powered is no longer available and has been replaced by DT-311D.
Click here to see the DT-311D.
The DT-721 is no longer available.
Flash Range: 40-12.500 RPM/FPM
Our Digital Stroboscope DT-721 is a highly stable, industrial-quality measuring instrument. The DT-721 is a perfect AC-powered instrument for non-contact RPM measurement as well as for inspection and observation of moving parts by "freezing" or "slowing down" the action.

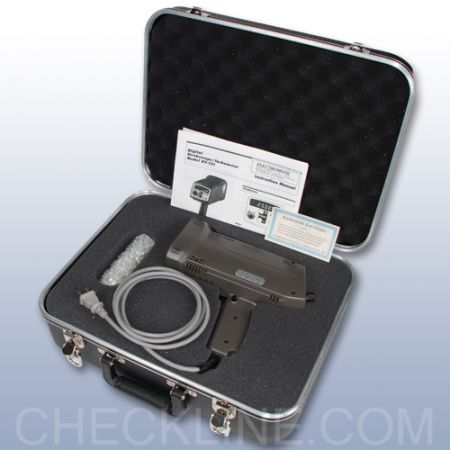

Optional, a "Kit" is available for this model which includes a carrying case and spare flash tube at minimal additional cost.
Features
- Highly accurate speed control with drift-free operation
- Instant double (2x) and half-rate (÷2) flash selection
- Easy-to-use controls with bright LED display
- Accepts input from sensor for external flash triggering
- Extremely lightweight and rugged
- Phase shift adjustment permits movement of objects to desired position for convenient observation
- Without CE Certification
Optional Complete Kit is offered which also includes a carrying case and spare flash tube at minimal additional cost.
A) 12 - 24 V DC through a 3-wire NPN sensor (requires external power supply)
B) 12 V DC through a 2-wire proximity sensor (Leakage Current 1 mA max. Load current 8 mA min.)
C) Switch or Relay Contact
B) 12 V DC through a 2-wire proximity sensor (Leakage Current 1 mA max. Load current 8 mA min.)
C) Switch or Relay Contact

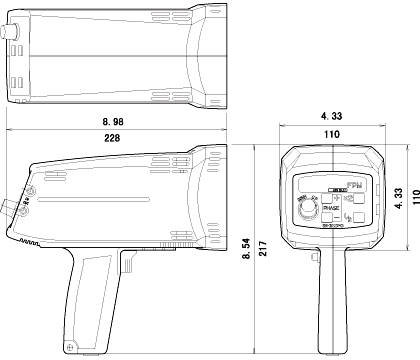

Dimensions
Related Products
Cic-Strobe Stroboscope Calibration
- Easy planning of calibration
- Short turnaround
- Exclusively using a standard which is traceable to British national standards and International standards ISO/IEC 17025
More details
Accessories
Specifications
| Flash Range | 40.0 - 12,500 FPM |
| Resolution | (0.1) 40.0 - 4,999.9 (0.2) 5,000.0 - 7,999.8 (0.5) 8,000.0 - 9,999.5 (1.0) 10,000.0 - 12,500.0 |
| Accuracy | ± 0.02% of reading |
| Display | 5-Digit LED, 8 mm high |
| Flash Tube | Xenon, 10 watt |
| Flash Duration | 10 - 15 µs |
| Tube Life | 100 million flashes |
| Signal Output | NPN Open Collector, 24 VDC max. |
| Phase Shift | 0 - 359° (Internal Mode) |
| Operating Temperature | 0 to 40° C |
| Weight | 680 g (1.50 lbs. ) |
| Power Requirements | 115 / 230 VAC ± 10%, 50/60 Hz |
| Warranty | 1 year |
