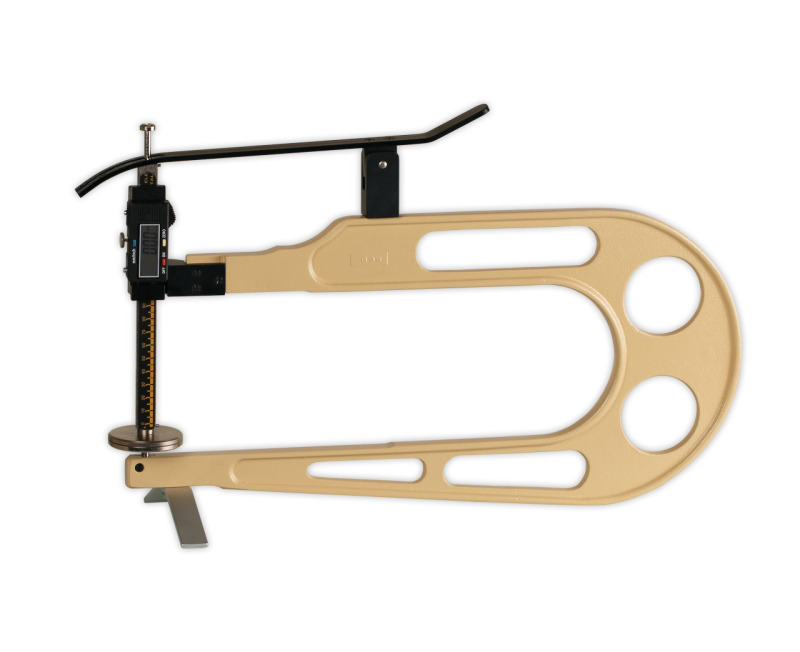

BDTG-350-75 Digital Thickness Gauge
The BDTG-350-75 digital thickness gauge is engineered for applications requiring greater measuring capacity and deeper sample access. Suitable for leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood and plastics, it delivers a stable 0.01 mm resolution across the full 0–75 mm range. Its extended 350 mm jaw depth allows precise measurement of large or wide-format materials while maintaining consistent accuracy.
Key Features:
- RS-232 Output: Enables direct data transfer to PCs, printers or quality-control systems.
- Spring-Force Measurement (2 N): Uniform measuring pressure ideal for sensitive or flexible materials.
- Zero Setting Button: Fast calibration before each measurement cycle.
- Selectable Units: Display readings in millimetres or inches.
Key Benefits:
- Designed for Thicker Materials: Extended 0–75 mm range covers applications beyond standard gauges.
- Deep Jaw Access: 350 mm reach allows measurement of large, wide or difficult-to-access samples.
- High Accuracy & Repeatability: Self-closing mechanism ensures stable, consistent readings.
- Industrial Versatility: Suitable for QC labs, production environments and incoming-goods inspection.
Contact us for assistance selecting the right configuration or to request a quotation.
Features
- Lever-Operated Opening: Easy sample handling with automatic closing for consistent pressure.
- Calibration Certificate Included: The gauge is delivered verified and ready for use.
| Model | Range | Resolution | Jaw Depth |
|---|---|---|---|
| BDTG-200-50 | 0 - 50 mm | 0.01 mm | 200 mm |
| BDTG-300-50 | 0 - 50 mm | 0.01 mm | 300 mm |
| BDTG-350-75 | 0 - 75 mm | 0.01 mm | 350 mm |
| BDTG-400-100 | 0 - 100 mm | 0.01 mm | 400 mm |
To place the order, please specify the desired feeler, for example: BDTG-350-75-B for a gauge with feeler B. This means that NOT all feelers are included in the package!
 |
Feeler: A For hard leather, glass, metal sheets. |
 |
Feeler: B For wood, rubber, soft leather, foil, etc. |
 |
Feeler: C For soft rubber, felt, fleece. |
 |
Feeler: D For rubber rings, round materials. |
 |
Feeler: E For paper, cardboard, chipboard and fiberboard, and plywood. |
 |
Feeler: F For metal sheets, glass, round materials. |
 |
Feeler: G For very rigid materials. |
 |
Feeler: H For foams and insulating materials. |
 |
Feeler: I For very soft foams and insulating materials. |
 |
Feeler: M For rubber sheets, felt, soft materials. |
Specifications
| Resolution: | 0.01 mm |
| Measuring range: | 75 mm |
| Jaw depth: | 350 mm |
| Measuring pressure: | 2 N |
| Measuring principle: | Self closing |
| Feeler shape: | A/B/C/D/E/F/G/H/I/M |
| Display: | LCD 7 mm high |
| Measuring system: | Sylvac |
| Weight, net (gross): | 1250 g (1300 g) |
Buy Now
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
