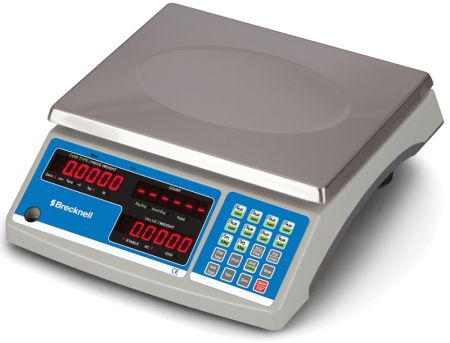

B140 Counting Scales
The B140 is an advanced, higher accuracy counting/coin scale with increments for good resolution on counted parts. The 30 kg/60 lb capacity functions either as a counting or coin counter. Operates on either US/UK/EU power supplies or rechargeable battery. Three bright LED displays with three brightness levels. Rugged ABS plastic base with stainless steel weight platter. Comes standard with Plu's (Price look-up codes), time and date, upper and lower count limits, accumulation and preset tare with RS-232 function.
Features

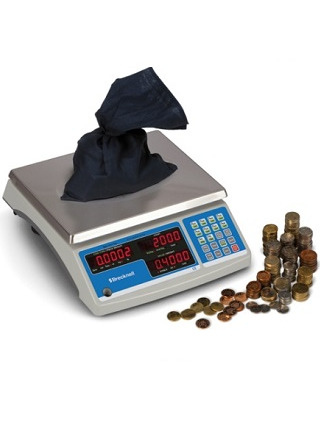

- Currency Feature Added (30 kg / 60 lb only) - US Dollars, GB Pounds and Euros with big and small bag selection
- Additional Features - PLU's, Piece Weight Entry, Upper and Lower Count Limits, Accumulation and Preset Tare
- Power - AC adapter with rechargeable battery at 20 hours battery life between charges
- High Quality and Easy to Operate
- Configurable RS-232
- Capacity - 6 kg x 0.2 g / 12 lb x 0.0005 lb - 15 kg x 0.5 g / 30 lb x 0.001 lb - *30 kg x 1 g / 60 lb x 0.002 lb
- Accuracy - Within ±3 divisions at full load
- High Performance - 30,000 divisions
- Construction - Rugged ABS plastic base, stainless steel weight platter
- Large Stainless Steel Top - 292 mm (W) x 222 mm (L) x 13 mm (H) - 11.5" W x 8.75" L x 0.5" H
- Configurable Scale ID
| Model | Capacity x Resultion | Display resolution | Minimum Piece Weight | |
| B140-12 | 6 kg x 0.2 g 12 x 0.0005 lb | 24.000 | 0.0001 lb / 0.05 g | |
| B140-30 | 15 kg x 0.5 g 30 x 0.001 lb | 30.000 | 0.0002 lb / 0.1 g | |
| B140-60 | 30 kg x 1 g 60 x 0.002 lb | 30.000 | 0.0005 lb / 0.2 g |
Specifications
| Capacity: | 6 kg x 0.2 g; 15 kg x 0.5 g; 30 kg x 1 g |
| Display: | Three six digit 14.2 mm / 0.56" high seven segment red LED display with three brightness levels |
| Operating Temperature: | -10° C to 40° C / 14° F to 104° F |
| Power: | Internal rechargeable battery |
| Average Working Current: | < 300mA |
| Battery: | : 6V4A/Hr rechargeable lead-acid battery |
| Auto off: | Selectable between 1 and 30 minutes or off |
| Platform Material: | Stainless steel |
| Weight Platter: | : 292 mm (W) x 222 mm (L) x 13 mm (H) |
| Function Keys: | : On/Off; Clear; Enter; Zero; Tare; Total; kg/lb; Piece Weight; PLU; Print; *Currency; Upper Limit; Lower Limit and 0 – 9 for data entry. |
| Annunciators: | : Zero; Tare; AC Mains Connected; Battery Charging; Stable; Big Bag; Small Bag; kg and lb |
| Approvals: | CE, UL and WEEE directive |
| Keyboard Functionality: | 0-9– Used for keyboard entry of piece weight, sample size, and upper and lower limit settings |
| Units/Currency: | Units used to switch displayed weights between kg and lb. Currency used to switch betweencurrency type (available in 30 kg/60 lb capacity only). |
| Zero: | Return displayed weight and count to zero for accurate weighing and counting. Zero range capability is 5% of scale capacity |
| Enter/Pcwt: | Enter used to confirm or save entered data from keyboard. Pcwt used for keyboard entry of a known average piece weight |
| Tare: | Used to zero off (up to 100% of capacity) an empty container or weight, not required in the calculation of an average piece weight. Use of tare will reduce the scales maximum weight capacity by value stored |
| Total: | Ability to add the display to an accumulator (Memory +) and only accumulate when there is a percentage of weight change |
| Clear/Hi/Lo: | : Clear to erase a keyed in value from the display if an error has been made. Hi/Lo is to set the upper and lower limits. |
| Upper: | Used to set an upper limit quantity for count check feature |
| Lower: | Used to set lower limit quantity for count check feature |
| On/Off: | Used to turn off display for extended battery life or reset the scale to normal weighing mode |
| Print: | Output to RS-232 communications |
| Shipping Weight: | 4.5 kg / 10 lb |
