B 160 IVO Time Meter
IVO operating time counters are used in all those instances where costs need to be made transparent, where maintenance intervals are to be kept, where guarantee periods need to be assessed or operating hours are to be captured.
Cutout sizes
Cutout sizes

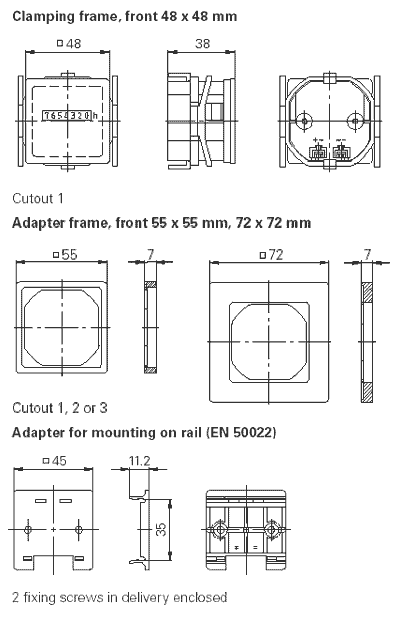

Dimensions
Optional available for counter HK46
Z 118.037 Adapter frame, front 55x55 mm
Z 118.038 Adapter frame, front 72x72 mm
Z 118.039 Adapter for mounting on rail (EN 50022)
Z 118.037 Adapter frame, front 55x55 mm
Z 118.038 Adapter frame, front 72x72 mm
Z 118.039 Adapter for mounting on rail (EN 50022)
Specifications
| Display: | 7-digit roller-type counter, 4 mm high, red decimal display With running display (AC) Without reset |
| Counting capacity: | AC: 99 999,99 h DC: 999 999,9 h |
| Reading accuracy: | AC: 1/100 h = 36 s DC: 1/10 h = 6 min |
| Front dimensions: | 48 x 48 mm |
| Type of mounting: | Built in counter with clamping frame or adapter for mounting on rail. EN 50022 |
| Weight: | Approximately 110 g |
| Housing material: | Plastic black |
| Supply voltage: | - 24, 230 VAC ±10 %, 50 Hz - 110 ±10 % VAC, 60 Hz - 10...80 VDC |
| Power consumption: | AC 0.1...1.5 VA DC 0.1...1.5 W |
| Running accuracy: | AC: synchronous to supply net, synchronous motor DC: <1s / 24 h, stepping motor |
| E-connection: | Screw terminal or flat-cable plug (combined) 6.3 x 0.8 mm |
| Ambient temperature: | -20...+70 °C |
| Storage temperature: | -40...+80 °C |
| Relative humidity: | Max. relative humidity 80 %, at 25 °C, non-condensing |
| Protection: | Front IP 40 |
| General rating: | IEC 61010-1 |
| Emitted interference: | EN 55014-1 |
| Interference immunity: | EN 55014-2 |
