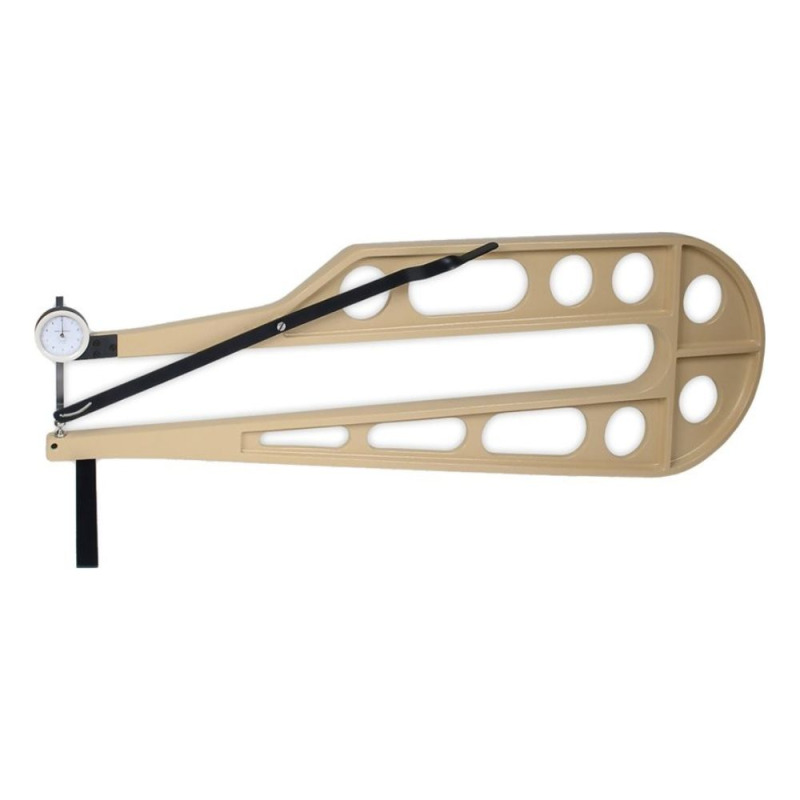

ATG-650 Analogue Thickness Gauge
The ATG-650 analogue thickness gauge is designed for accurately determining the thickness of a wide range of materials such as leather, textiles, cardboard, felt, rubber, sheet metal, foils, plywood, plastics, and more. Thanks to its large-frame structure and automatic closing mechanism, this model is ideal for large-format samples requiring consistent and reliable measurements.
Key Features:
- Lever-operated opening: Ergonomic lifting mechanism for easy handling, even during repetitive use.
- Automatic closing mechanism: Keeps the gauge closed when not in use, reducing variations due to handling.
- Spring force measurement: Applies constant pressure for repeatable and reliable results.
- Extended jaw depth: 650 mm depth allows access to areas far from the sample edge.
Main Benefits:
- High accuracy: 0.1 mm resolution, suitable for demanding industrial applications.
- Versatile use: Compatible with a wide variety of soft and semi-rigid materials.
- Robust construction: Cast aluminium frame for maximum durability and strength.
Contact us for more information or personalised advice on how the ATG-650 can meet your thickness measurement needs.
Features
- Measuring range: 0 – 50 mm.
- Jaw depth: 650 mm, ideal for large-sized samples.
| Model | Range | Resolution | Jaw Depth |
|---|---|---|---|
| ATG-200 | 0 - 25 mm | 0.01 mm | 200 mm |
| ATG-200-50 | 0 - 50 mm | 0.01 mm | 200 mm |
| ATG-300 | 0 - 25 mm | 0.01 mm | 300 mm |
| ATG-300-50 | 0 - 50 mm | 0.01 mm | 300 mm |
| ATG-350 | 0 - 75 mm | 0.01 mm | 350 mm |
| ATG-400 | 0 - 100 mm | 0.01 mm | 400 mm |
| ATG-500 | 0 - 25 mm | 0.01 mm | 500 mm |
| ATG-500-50 | 0 - 50 mm | 0.01 mm | 500 mm |
| ATG-650 | 0 - 50 mm | 0.01 mm | 650 mm |
To place the order, please specify the desired feeler, for example: ATG-650-B for a gauge with feeler B. This means that NOT all feelers are included in the package!
 |
Feeler: A For hard leather, glass, metal sheets. |
 |
Feeler: B For wood, rubber, soft leather, foil, etc. |
 |
Feeler: C For soft rubber, felt, fleece. |
 |
Feeler: D For rubber rings, round materials. |
 |
Feeler: E For paper, cardboard, chipboard and fiberboard, and plywood. |
 |
Feeler: F For metal sheets, glass, round materials. |
 |
Feeler: G For very rigid materials. |
 |
Feeler: H For foams and insulating materials. |
 |
Feeler: I For very soft foams and insulating materials. |
 |
Feeler: M For rubber sheets, felt, soft materials. |
Specifications
| Resolution: | 0.1 mm |
| Measuring range: | 0 - 50 mm |
| Jaw depth: | 50 mm |
| Measuring pressure: | 2 N |
| Measuring principle: | Self closing |
| Feeler shape: | A/B/C/D/E/F/G/H/I/M |
| Net weight (gross): | 1850 g (1950 g) |
