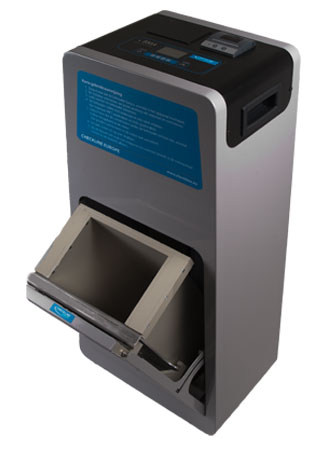

BMA Moisture meter for determining the water content of biomass


Professional moisture meter for determining the water content of biomass with optional display of bulk density and bone dry weight (tons/m³). For measuring wood chips, barks, wooden pellets, elephant grass, wood shavings, sawdust and corn cobs.

The BMA for measurements within seconds without prior treatment of samples, with manual saving of results, datalog for 10,000 logs with measuring point report.
Also available with the option: BMA-ATRO - Display of bulk density and bone dry weight (tons/m³)

Only the exact determination of water content of biomass allows fair payment for producers, suppliers and end customers. The water content determines the fuel value of biomass. This makes quality control in the manufacturing and supplying of biomass increasingly important. Using a high quality biomass moisture meter you can prevent machine problems and avoid paying the high product price only for water.


Features
  • High measuring range up to 70% water content
  • Available option for displaying of bulk density and ATRO tons/m³
  • Manual saving of results, datalog for 10.000 logs with measuring point report
  • Bulk density compensation by integrated scale
  • Measurement within seconds without prior treatment of samples
  • Robust housing
  • Resolution: 0.1% water content
  • Infrared sample temperature measurement

Specifications
Measuring range
5% to 70% water content, depending on the material
Resolution
0.1% water content
Calibration Accuracy
+/- 1.0%
Measurement Technique
Capacitance, Click for more info
Sample volume
12 liter
Menu languages
English, German, French, Italian, Spanish and Russian
Housing
Robust housing
Data logger
10,000 moisture measurements plus date, batch & temperature
Display
128x64 matrix display lighted
Bulk Density Compensation
By integrated scale
Temperature Compensation
Automatic in °C or °F
Temperature sensor
Infrared (non-contact)
Data Interface
Optional: USB (supplied with data transfer cable & software)
Operating Temp
0°C to 50 °C
Power
100-240 VAC, 1 A, 50-60 Hz
Plug
Schuko plug as per CEE 7/7
Dimensions
432 x 282 x 862 mm
Weight
approx. 26 kg
Degree of protection
IP 40
Warranty
2 years

Complete Kit

The BMA is delivered as a complete kit including:
- BMA gauge,
- BMA measuring box (12 litre),
- Power supply unit 12 VDC, 4 A,

The BMA - USB is delivered as a complete kit including:
- BMA gauge,
- BMA measuring box (12 litre),
- Power supply unit 12 VDC, 4 A,
- USB data output connection,
- Software & USB cable.

*Both versions are available with BMA-ATRO: display of bulk density and bone dry weight (tons/m³) The data printer is only available for the BMA-USB.
(these options are only available for delivery ex factory)


Buy Now
Products

Product name
Price
Quantity
BMA Biomass moisture meter
€ 3.400,00
BMA-USB - Biomass moisture meter with usb output
€ 3.690,00

Accessories

Product name
Price
Quantity
BMA-ATRO option for displaying of bulk density and ATRO tons/m³
€ 390,00
PRINT-ROLL 5 rolls of paper for BMA-Printer
€ 10,00
BMA-BP Rechargeable External Battery Pack for BMA Moisture Meter
€ 180,00
BMA-USB-BT Bluetooth Module for BMA-USB only!
€ 340,00
BM-ISO - ISO measuring device check
€ 115,00
BMA-INT-PRINT Integrated Printer for BMA Moisture Meter
€ 330,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
