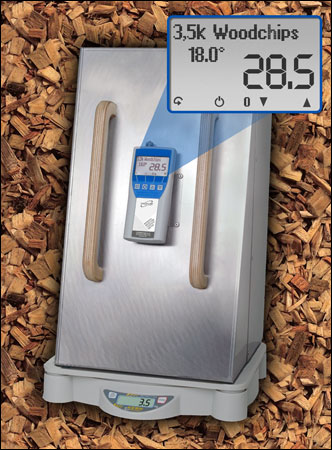

BM2 Biomass Moisture Meter with USB Output & Software


The BM2 Biomass Moisture Meter with USB Output & Software is no longer available and has been replaced by HGF.
Click here to see the HGF.


2 Models Available:



- BM2 - with USB Data Output
- BM2-KIT - BM2 bundled with digital scale

BM2 is equipped with USB data output and calibration function for self-calibration on non-standard material.

Model BM2 for testing the moisture content of most types of biomass materials.

Highly accurate moisture meter with automatic bulk density compensation for quick determination of water content of wood chips, barks, wooden pellets, elephant grass, wood shavings and sawdust.

The entire measurement procedure is extremely easy & only takes seconds. Simply turn on the gauge, collect the desired Biomass test sample and pour into storage bin and view the water content (%-moisture) on the large backlit LCD display.

The BM2 includes built-in memory for 10,000 values with serial output downloading data to external printer, PC-Software or 3rd-Party accounting programs for automatic calculation of price or payment. Additionally, the BM2 is supplied with PC Software and USB Data Transfer Cable.


Features
  • Rugged stainless steel Storage Bin is integrated with gauge providing an all-in-one measuring system
  • Gauge menus in English, German, French, Italian, Spanish and Russian
  • BM2 includes datalogger for data transfer to PC or Printer documenting moisture measurements, date, batch & temperature
  • Automatic self-calibration and built-in temperature compensation assures highest possible accuracy
  • 2 Year Warranty
  • Take measurement in seconds without prior treatment of samples
  • Bulk density compensation by using a precision electronic balance (scale)
  • Large Backlit LCD Display with over-sized numbers makes for easy viewing
  • Supplied with 13 liter plastic bucket for collection of testing sample

Complete Kit

The BM2 biomass moisture meter is delivered as a complete kit including:
- BM2 biomass moisture meter
- plastic bucket
- batteries
- user manual
- data transfer cable
- USB converter
- software
- manufacturer certificate

Delivery of the digital scale (supplied in BM2-KIT) includes the following:
- digital scale; 10,000 gram
- 230 VAC power supply unit
- manufacturer certificate


Dimensions
Dimensions BM2


Built-In Material Calibrations
Name Of Calibration Curve Material Under Test Filing Quantity Measuring
Range
Limit
2.0kg WoodchipsWoodchips according to P162.00kg28%
2.4kg WoodchipsWoodchips according to P162.40kg35%
2.8kg WoodchipsWoodchips according to P162.80kg40%
3.5kg WoodchipsWoodchips according to P163.50kg50%
4.5kg WoodchipsWoodchips according to P164.50kg60%
2.8kg Coarse WCWoodchips according to P452.80kg50%
3.5kg Coarse WCWoodchips according to P453.50kg50%
2.8kg Fresh WCFresh woodchips2.80kg50%
3.5kg Fresh WCFresh woodchips3.50kg50%
2.4kg BarksBarks2.40kg35%
2.8kg BarksBarks2.80kg50%
5.0kg PelletsPellets made of wood5.00kg14%
1.0kg ShavingsShavings1.00kg20%
1.3kg SawdustSawdust1.30kg28%
2.0kg SawdustSawdust2.00kg50%
1.0kg MiscanthusMiscanthus chopped
Elephant Grass
1.00kg25%
ReferenceTo test the BM
Not for use of measuring the moisture!
Empty 1For customer calibration
Empty 2For customer calibration
Empty 3For customer calibration
Empty 4For customer calibration

Related Products

BM Biomass Moisture Meter


  • Rugged stainless steel Storage Bin is integrated with gauge providing an all-in-one measuring system
  • Large Backlit LCD Display with over-sized numbers makes for easy viewing

More details

BM Biomass Moisture Meter

BP1 Wood Pellets Moisture Meter


  • Measurement within seconds without prior treatment of samples

More details

BP1 Wood Pellets Moisture Meter

BLL Moisture Meter with 1 meter insertion probe


  • Directly mounted insertion probe
  • Conversion of wood moisture into water content

More details

BLL Moisture Meter with 1 meter insertion probe

Cic-Moisture Moisturemeters Calibration


  • Easy planning of calibration
  • Short turnaround
  • Exclusively in accordance with ASTM 2219-98
  • Possibility to adjust and repair

More details

Cic-Moisture Moisturemeters Calibration

Specifications
Measuring range 5 to 60% water content depending on material
Resolution 0.5% water content (0.5 °C or °F)
Calibration accuracy +/- 1.5%
Measurement TechniqueCapacitance, Click for more info
Sample volume13 liter
Menu languagesEnglish, German, French, Italian, Spanish and Russian
HousingGauge: Plastic with IP40 rating
Storage Bin: Stainless Steel
Data logger10.000 logs with measuring point report
DisplayGraphic LCD display with backlight (128 x 64 pixel)
Bulk Density CompensationWith Digital Precision Scale
Temperature CompensationAutomatic in °C or °F
Data InterfaceUSB (supplied with data transfer cable & software)
Custom Material Calibrationyes, can be calibrated by user
Operating Temp–20 °C to 60 °C (–4 °F to 140 °F)
Storage Temp–20 °C to 60 °C (–4 °F to 140 °F)
Power4 x 1.5 Volt AA Alkaline batteries
Battery Life900 measurements, with auto-off after 6 minutes of non-use
Dimensions490 x 290 x 300 mm (19.3" x 11.4 x 11.8)
Weight5.3 kg (11.60 lbs) including batteries
Warranty2 years
