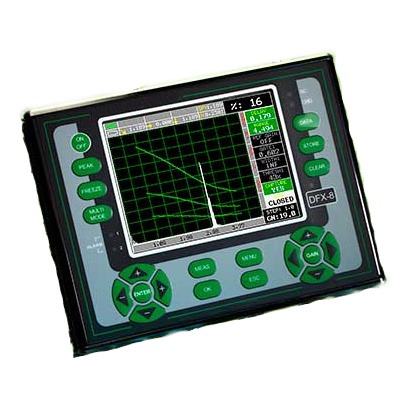

DFX8 Flaw detector & thickness gauge


Made in the USAThe new DFX-8 combines all features of a flaw detector and thickness gauge – just in one gauge! It is developed for a wide range of measurement applications on coated and uncoated materials, like thickness measurements by the professional Pulse-Echo mode, Echo-Echo mode and other advanced measurement modes. For flaw professionals it includes DAC, AWS, TCG, DGS sizing toolkits.

All measurement results are presented on the large QVGA display with 60 Hz refresh rate and can be stored in the internal memory with 4 GB capacity. Data can be transferred by the USB output or a SD card.

Thickness Gauge Features:
The DFX-8 functions as a professional thickness gauge with many features to address a number of applications. The automatic measurement functions include probe zero, probe recognition and temperature compensation with high speed scan option for up to 50 readings per second. To enhance the user comfort, an audible alarm signalizes the hi/lo limits and 64 setup configurations can be set up. The measurement modes (for dual element probes) are:
  • Pulse-Echo Mode (P-E): (Pit & Flaw Detection) measures from 0.63mm to 3048 cm
  • Pulse-Echo Coating Mode (PECT): (Material, Coating, Pit & Flaw Detection) measures materials from 0.63mm to 3048 cm and coatings from 0.01 to 2.54 millimeters
  • Pulse-Echo Temp Comp Mode (PETP): (Pit & Flaw Detection) Auto temperature compensation -measures from 0.63 mm to 3048 cm
  • Echo-Echo Mode (E-E) - (Thru Paint & Coatings) measures from 1.27 to 102 millimeters. Will vary based on coating.
  • Echo-Echo Verify (E-EV) - (Thru Paint & Coatings) measures from 1.27 to 25.4 millimeters. Will vary based on coating.
  • Coating Only Mode (CT) - (Coating Thickness) Measures from 0.0127 to 2.54 millimeters. Range will vary +/- depending on the coating. One and two point calibration option for material & coating, or selection of basic material types.

Flaw Detector Features:
The DFX-8 can also be used as professional flaw detector. The numerous functions include:
  • TRIG: Trigonometric display of beam path, depth, surface distance, and curved surface correction. Used with angle beam transducers.
  • DAC: Up to 8 points may be entered and used to digitally draw a DAC curve. Reference -2, -6, -10, (-6/-12), (-6/-14), (-2/-6/-10) dB. Amplitude displayed in %DAC, dB, or %FSH.
  • AWS: Automatic defect sizing in accordance with AWS D1.1 structural welding code.
  • AVG/DGS: Automatic defect sizing using probe data. Stores up to 64 custom setups.
  • TCG: Time corrected gain. 50 dB dynamic range, 20 dB per microsecond, up to 8 points for curve definition. Measurement Mode: Pulse-Echo (P-E) measures from 0.025 in to 100 ft. (0.63mm to 3048 cm).
  • Auto-Cal: Provides automatic calibration with two reference points.
  • Detection Modes: Zero Crossing, Flank and Peak.
  • Display Freeze: Holds current waveform on screen.
  • Peak Memory: Captures peak signal amplitude.
  • Auto Interface Gate - DFX-8+ Automatic adjustment of interface gate for immersion testing (water path).

Features
  • Different transducers available (delay line, pencil, contact, dual)
  • 2 year warranty
  • Various measurement functions for both thickness and flaw measurements
  • Battery operated
  • 4GB internal memory + up to 64 GB external SD memory
  • 64 custom setups
  • USB, RS232, Alarm, analog outputs & transducer connectors

Specifications
Size
216 x 165 x 70mm
Weight
2.04 kgs incl. batteries
Case
Extruded aluminum body with nickel plated aluminum end caps (gasket sealed).
Display
Blanview sunlight readable QVGA TFT color display (320 x 240 pixels). Viewable area 4.54 x 3.40 in (115.2 x 86.4 mm), or 5.7 in (144.78 mm) diagonal. 16 color pallete, multiple color options and variable brightness.
Screen Refresh Rate
60Hz
Display Views
Flaw Detector: Full wave, +/- Rectified, or RF. Thickness Gauge: Digits, +/- Rectified, RF, or B-Scan
Timing
Precision TCXO timing with single shot 100 MHz 8 bit ultra low power digitizer
Measurement Gates
Two independent gates (Flaw), and three gates (thickness). Start & width adjustable over full range. Amplitude 5-95%, 1% steps. Positive or negative triggering for each gate with audible and visual alarms.
Operating Temperature
-10C to 60C
Environmental
Meets IP65 requirements
PULSER
Pulser Type
Two adjustable square wave pulsers
P.R.F.
8 to 2000Hz in selectable steps (8, 16, 32, 66, 125, 250, 333, 1000, 2000 Hz)
Pulser Voltage
100 - 200 volt peak amplitude, rise/fall time < 10ns into 50ohm
Pulse Width
40 to 400 ns. Selectable step options 40, 80 & 400 ns (labeled spike, thin & wide
RECEIVERS
Gain
0 to 110dB with 0.2dB resolution. Manual and AGC control.
Damping
50, 75, 100, 300, 600, & 1500 ohms.
Frequency Bands
Broadband 1.8 - 19 MHz (-3dB). Four narrow bands at 1MHz, 2MHz, 5MHz, 10MHz
Horizontal Linearity
+/- 0.4% FSW
Vertical Linearity
+/- 1% FSH
Amplifier Linearity
+/- 1 dB
Amplitude Measurement
0 to 100% FSH, with 1% resolution
Delay
0 - 999in (25,375mm) at steel velocity.
CALIBRATION
Automatic Calibration
Longitudinal (straight), or Shear (angle)
Probe Types
Single Contact, Dual, Delay, and Angle
Units
English (in), Metric (mm), or Time (us)
Velocity
0.0100 to .6300 in/us (256 - 16,000 m/s)
Test Range
0 to 0.076in (1.93mm) minimum, to 1200in (30,480mm) maximum at steel velocity. Continuously variable.
Zero Offset (Probe Zero):
0 - 999.999 us
Material Velocity Table
Contains longitudinal and shear velocities for a variety of material types

Buy Now
Product

Product name
Price
Quantity
DFX-8 Flaw Detector Kit
€ 4.716,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
