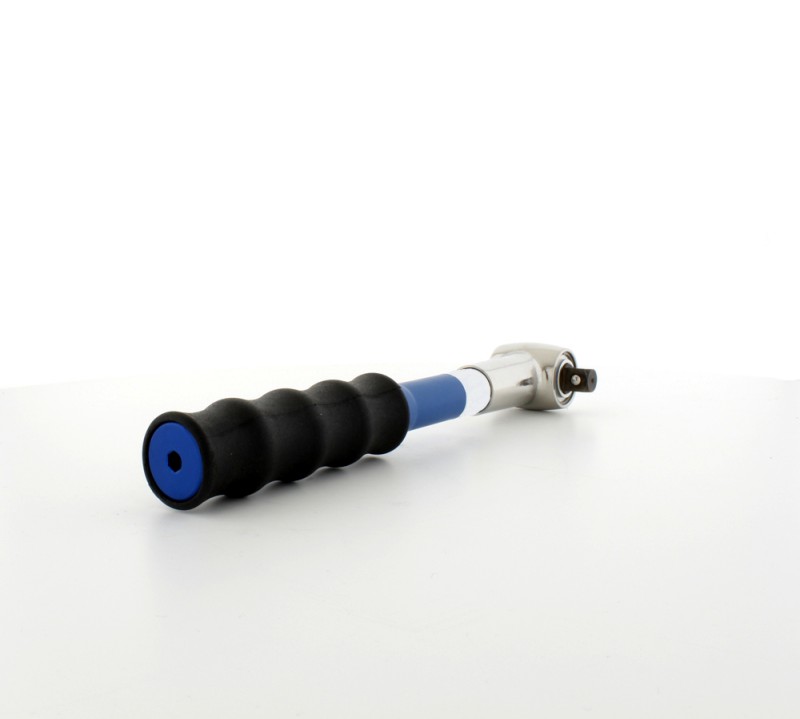

TSN Cam-Over Torque Wrench


TSN is a preset torque wrench that's ideal for maintenance and production applications where over-torque conditions are not tolerated. The use of cam-over wrenches takes the operator influence out of the torque equation and offers more accurate and repeatable results than a standard ‘click’ type wrench.


Features
  • A preset production torque wrench
  • Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer
  • Fully-supported non-strip ratchet head
  • Features the new mechanical torque adjustment locking device (M-TALD). An auto locking single key operation prevents tampering
  • Non-length dependent
  • Strong corrosion-resistant stainless steel head, protective coated handle and non-slip rubber grip
  • ESD compliant (IEC 61340-5-1:1998)
  • The wrench slips free when preset torque is reached, thus eliminating overtorquing

360 degree photo

Dimensions
Dimensions-TSN





Complete Kit

The complete kit includes:

  • Torque wrench
  • Pin for adjusting torque value
  • Certificate


Models
ModelRangeDriveLength
TSN 5/451.5 - 5 Nm1/4"185 mm
TSN 10/902 - 10 Nm 1/4"185 mm
TSN 25 D5 - 25 Nm1/4"216 mm
TSN 25 A5 - 25 Nm3/8" 216 mm
TSN 55 15 - 55 Nm3/8" 324 mm
TSN 12540 - 125 Nm1/2"460 mm

Specifications
Accuracy±6% for TSN 5/45, TSN 10/90, TSN 25 D
±4% for TSN 25 A, TSN 55, TSN 125
Warranty2 year warranty
ISO 5789 Class2C

Downloads

Buy Now
Products

Product
Price
Quantity
139055
TSN 5/45 Cam-Over Wrench - 5Nm
€ 430,00
139056
TSN 10/90 Cam-Over Wrench - 10 Nm
€ 430,00
139057
TSN25D Cam-Over Wrench - 25Nm
€ 338,00
135684
TSN25A Cam-Over Wrench - 25Nm
€ 347,00
137231
TSN55 Cam-Over Wrench - 55Nm
€ 441,00
139058
TSN125 Cam-Over Wrench - 125 Nm
€ 430,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
