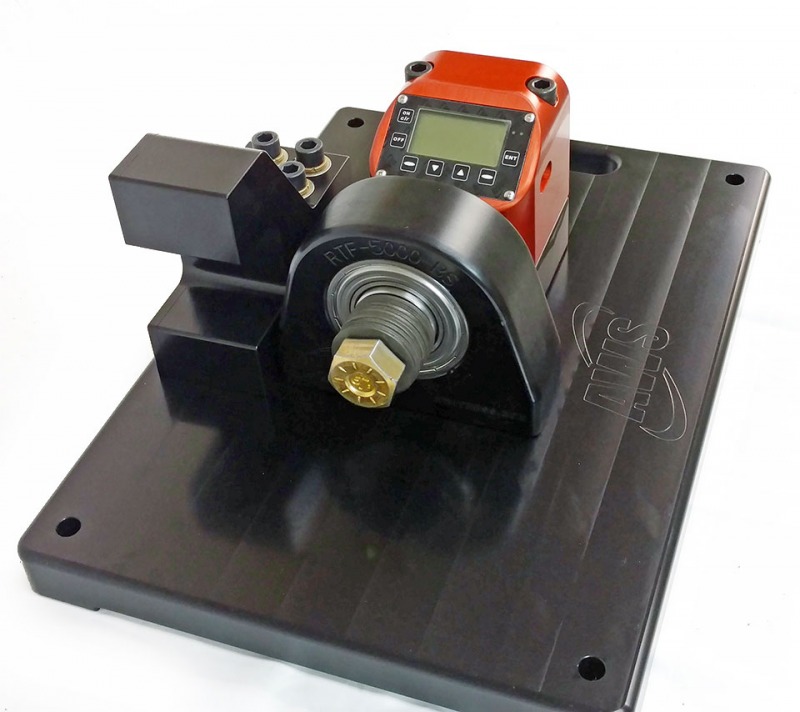

TT-QCMBS Torque Tester for Nutrunners


Made in the USAThe torque tester QCMBS for power nutrunners may be deployed  with conventional torque wrenches and other torque tools. There are 2 versions of the TT-QCMBS according to  two available measurement ranges: the TT-QCMBS-1KRD (135-1350 Nm) and the TT-QCMBS-2KRD (271-2710 Nm).

Easy and quick set up of the device is made possible through the large LCD display with its simple menu.

The TT-QCMBS offers a data storage capacity of up to 999 readings. By installating the optional software, data can also be exported to a printer, or PC. Furthermore, measurement protocols can automatically be generated through real-time data transmission to Excel.

Please note that in order to be able to test powered torque tools,a screwdriver simulator is needed. A safe testing of your tools is assured with the stable mountage of the TT-QCM torque tester and the respective screwdriver simulator. The power wrench is also supported by a storage area to absorb eventual shocks and thus prevent eventual damaging of the measuring cell.

* Not suitable for impact wrenches


Features
  • RS-232 data output
  • 2 years warranty
  • Complete test system, including test stand, screwdriver simulator and TT-QCM torque tester
  • Including NIST traceable calibration certificate
  • ± 0.5% accuracy of the displayed measured value
  • 3 measurement modes, Track, Peak and 1st Peak
  • 8 selectable measuring units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm

Torque ranges
Oz-in Lb-in Lb-ft N-m N-cm Kgf-m Kgf-cm

Model Range
TT-QCMBS-1KRD 135 - 1350 N-m
TT-QCMBS-2KRD 271 - 2710 N-m

Complete Kit

The TT-QCMBS system is delivered comes in a kit with the following included:

  •      TT-QCM torque tester
  •      Screwdriving simulator
  •      Test bench
  •      Operation manual
  •      NIST traceable calibration certificate


Specifications
Measurement range: 10 - 100% capacity, bidirectional
Accuracy: ± 0.5% of the displayed measured value (within the calibrated measuring range, bidirectional)
Resolution: 4 digits
Operating modes: Track, Peak & 1st Peak
Filter: Selectable, 125 Hz, 250 Hz, 500 Hz, 1000 Hz, 1500 Hz and 2000 Hz
Data output: RS-232 (Optional cable & software requires)
Data storage: 999 readings
Limit alarm: LEDs in the display for visual limit value display
Power supply: NiMH battery, AC adapter / charger (included)
Operating temperature: 0 - 50 °C
Guarantee: 2 years
Calibration certificate: Including NIST traceable calibration certificate

Buy Now
Products

Product
Price
Quantity
TT-QCMBS-1KRD - Torque Testsystem - 135-1350 Nm
€ 5.447,00
TT-QCMBS-2KRD - Torque Testsystem - 271-2710 Nm
€ 5.447,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
