TMG universal thickness gauge - ASTM, DIN, EN & ISO norms

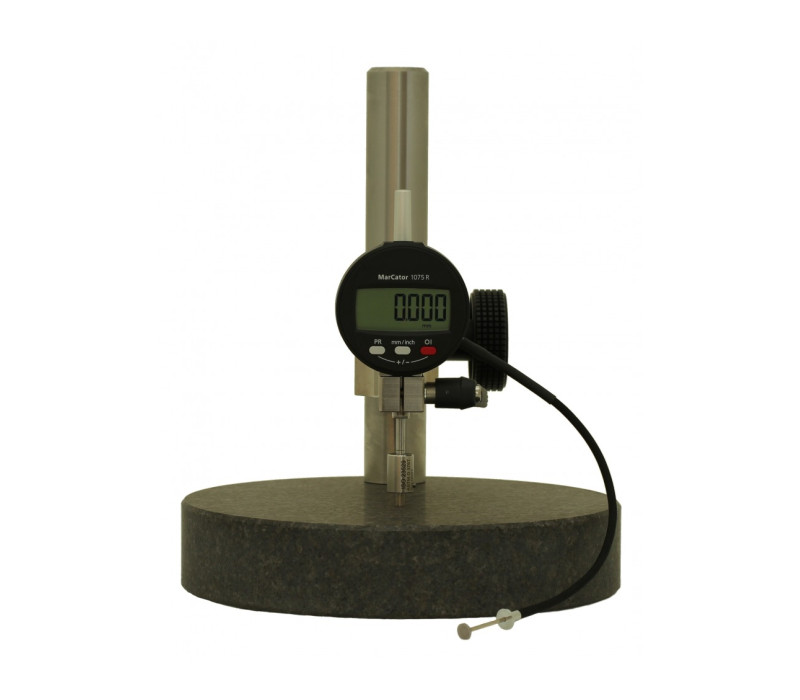

Made in GermanyThe new TMG series of thickness gauges provide highest accuracy in the measurement of material thicknesses.

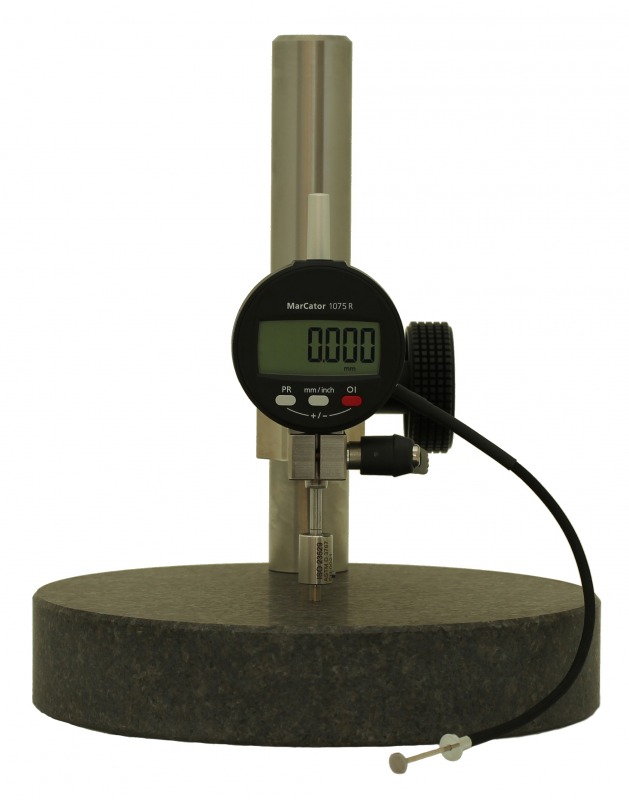

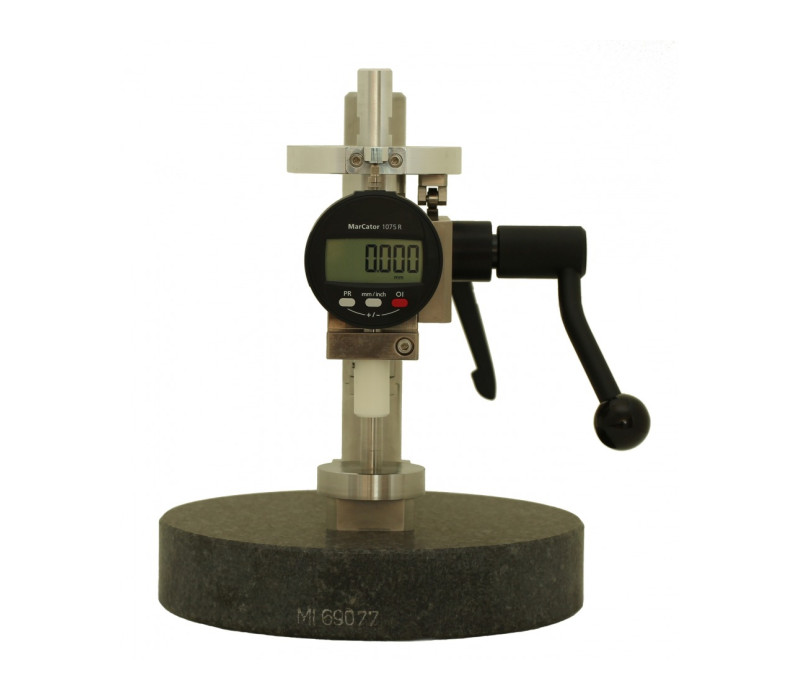

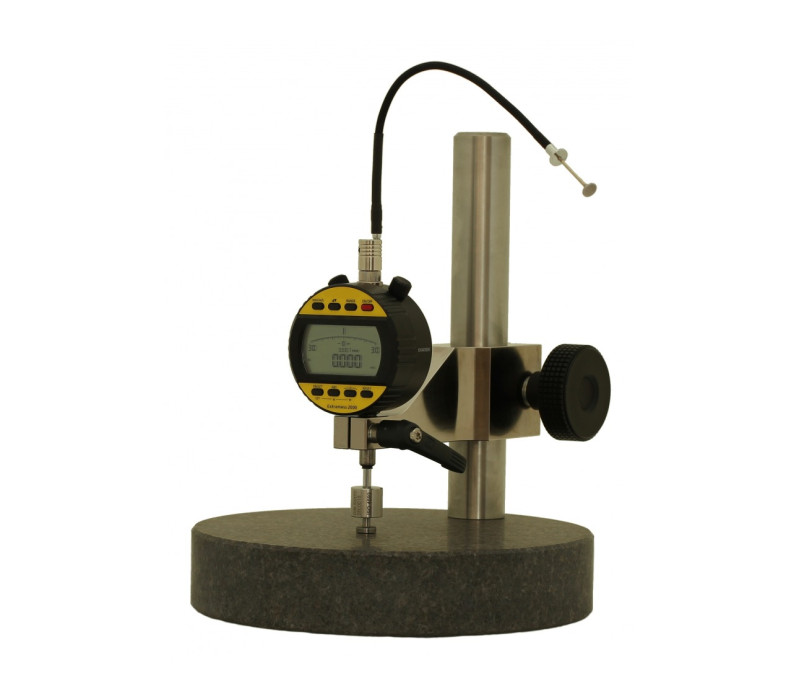

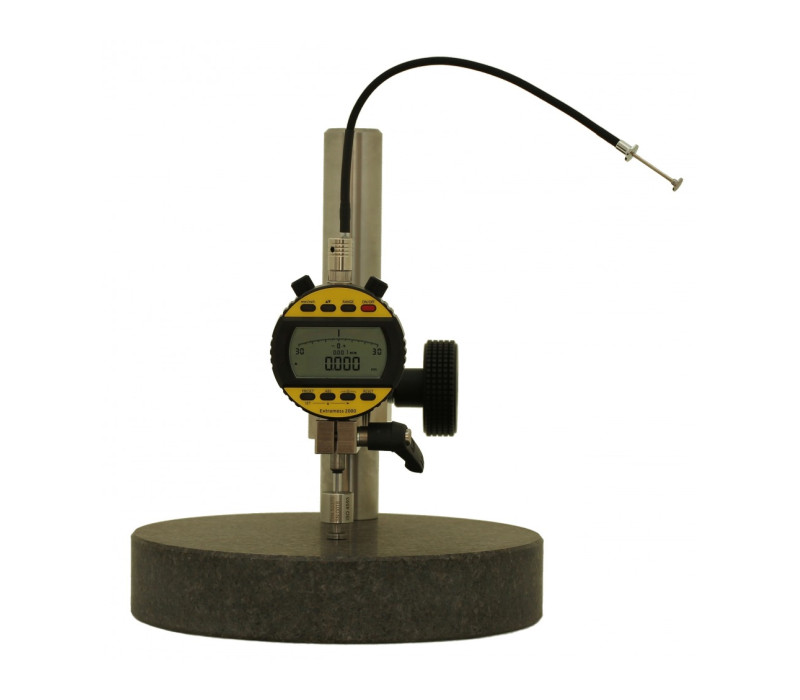

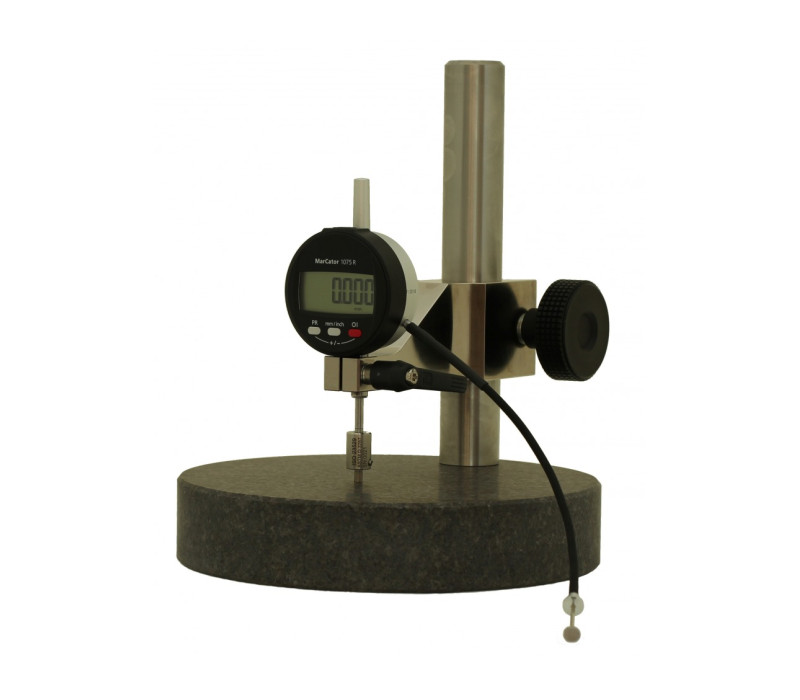

The TMG universal thickness gauges have a simple design and are easy to operate: to measure the material correctly, you only have to lift the measuring probe above the wire lift trigger and then lower it to the material to be measured, while applying the specific measuring pressure of the respective measuring standard.

Thanks to its modular system, you can adapt the three basic types TMG-1, TMG-2 and TMG-3  and a large number of ASTM, DIN, EN and ISO standards can be combined without being obliged to buy several measuring devices. Please refer to the table below for more extensive information.


Ready-made solutions for the most common materials such as elastomers, textiles, leather, nonwoven, films, rubber, fabrics, geomaterials, paper, paper towels and cardboard can be offered by us as well as customized special solutions. Please check the table below for more detailed information on all available models and feel free to contact us for an individual offer.

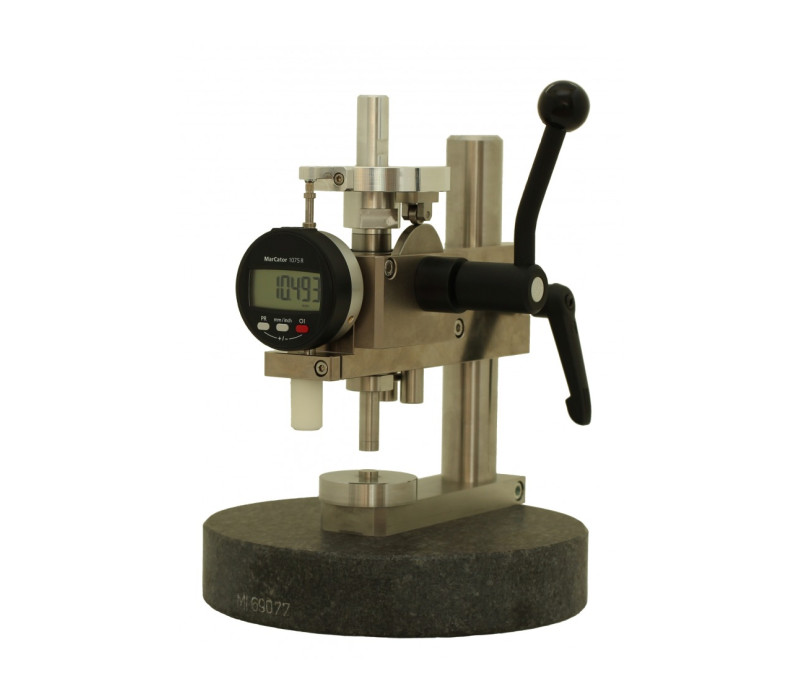

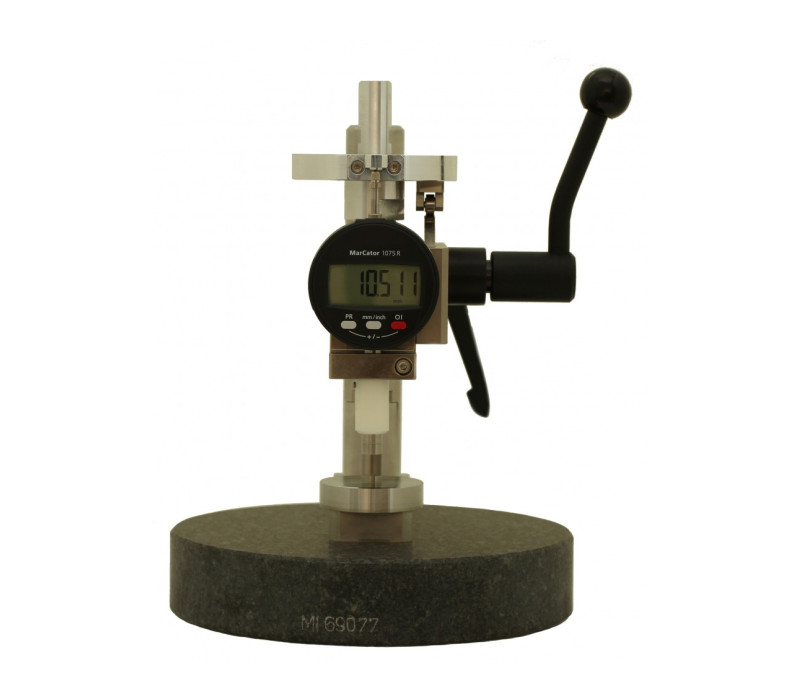

Only the most superior quality of raw materials is used in the manufacturing of the TMG thickness gauge as shown by the massive laboratory grade granite table, stainless steel column and the highest quality aluminum boom on the TMG-1 and TMG-2 stainless steel models of the TMG-3. High quality materials do not only guarantee longevity, but also high corrosion resistance even when used in very humid rooms.

To conclude, these are essential prerequisites for ensuring a constant measuring pressure over a longer period of time and thus reproducible measuring results.

List of standards for ready-made configurations:

  •     ISO-5084 for textiles
  •     ASTM D 1777 Option 2 for textiles
  •     ISO-23529 for rubber / elastomers
  •     ASTM D3767 for rubber / elastomers
  •     DIN EN ISO 12625-3 for waterproofing membranes
  •     ASTM D 1777 Option 1 for fiber fabrics, knitwear, knitwear and structural textiles
  •     ASTM D 1777 Option 5 for ceilings and pile fabrics
  •     ISO 4593 + DIN 53370 for films and films
  •     DIN EN ISO 2589 for leather
  •     ASTM D 1777 Option 3 for Films and Glass Fibers
  •     ASTM D 5199 for geosynthetics
  •     DIN EN 534 for paper and cardboard
  •     DIN EN ISO 3034 for corrugated board


For detailed information, please see the table below for the models available. If the appropriate standard is not available, please contact us for an individual solution.

Two options are available for the certification of your gauge:

1. A manufacturer calibration certificate or

2. A DAkkS calibration, which refers purely to the dial gauge.

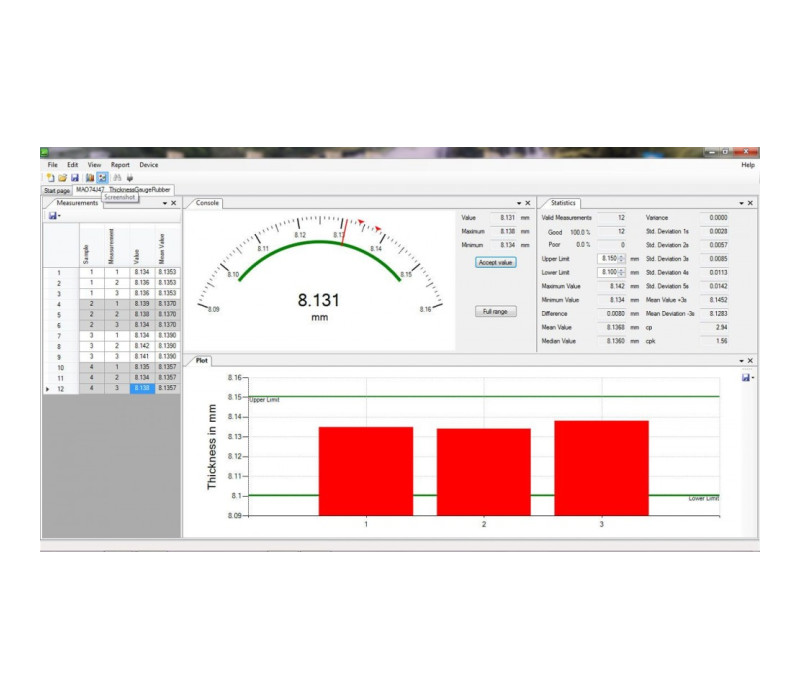

 A combination of both options is also possible to meet the highest standard. In addition optional software for processing the measurement data is available.


Features
  • Very high accuracy and excellent workmanship
  • Granite measuring bench in laboratory quality
  • Modular building block system and individual customer solutions cover every need
  • 14 preconfigured versions
  • Manufacturer calibration certificate and DAkkS calibration optional
  • Standard versions preconfigured for the most common ASTM, DIN, EN and ISO
  • Data output for processing the measurement data with the optionally available software

Available configurations
ModelBasisNormApplicationFeet Ø (mm)Weight (g) * / Measuring Pressure (kPa)
TMG-1-T TMG-1 ISO-5084Textiles50,5204,0 / 1,0
TMG-1-T1 TMG-1 ASTM D 1777 Option 2Textiles9,5169,0 / 23,4
TMG-1-G TMG-1 ISO-23529 + ASTM D 3767Rubber / Elastomers with a hardness> 35 IRHD4,028,0 / 22,0
TMG-1-G1 TMG-1 ASTM D 3767Rubber / Elastomers with a hardness < 35 IRHD16,0212,0 / 10,0
TMG-1-PT TMG-1 DIN EN ISO 12625-3Paper towels35,7204,0 / 2,0
TMG-1-AB TMG-1 DIN EN 1849-2Flexible sheets10,0160,0 / 20,0
TMG-1-FB TMG-1 ASTM D 1777 Option 1Fiber fabrics, knitwear, texture28,7273,0 / 4,14
TMG-1-FB1 TMG-1 ASTM D 1777 Option 5Blankets and pile fabrics28,746,2 / 0,7
TMG-2-F TMG-2 ISO 4593 + DIN 53370Foils and filmsR40,010 - 50 / -
TMG-3-L TMG-3 DIN EN ISO 2589Leather10,0393,0 / 49,1
TMG-3-FI TMG-3 ASTM D 1777 Option 3Films and glass fibers6,3546,0 / 172,0
TMG-3-GE TMG-3 ASTM D 5199Geosynthetics56,4509,5 / 2,0
TMG-3-P TMG-3 DIN EN 534Paper and cardboard16,02050,0 / 100,0
TMG-3-C TMG-3 DIN EN ISO 3034Corrugated cardboard35,72041,0 / 20,0
* Weight refers to the total weight of the sensor , weight and the measuring spindle. All configurations with the same device base can be combined with each other. Packages with additional accessories for adaptation to another standard are available separately. Contact us for more information.

360 degree photo

Dimensions
Dimensions TMG-1
Dimensions-Dimensions TMG-1


All sizes are in mm

Dimensions TMG-2
Dimensions-Dimensions TMG-2


All sizes are in mm

Dimensions TMG-3
Dimensions-Dimensions TMG-3


All sizes are in mm


Complete Kit

Depending on the selected configuration, the TMG thickness gauge is delivered as a complete set consisting of:

  • Granite measuring table
  • Stainless steel column guide
  • Gauge
  • Measuring insert compliant with the desired standard


In addition and optional:

  • Manufacturer Calibration Certificate
  • DAkkS Calibration Certificate (only dial gauge)
  • Software


Specifications
Measuring range:TMG-1 + TMG-3: 12.5mm
TMG-2: 0.8 / 1.8mm (depending on the resolution)
System accuracy:±4µm (or better): TMG-1-G, TMG-1-G1, TMG-1-T1, TMG-1-AB
±7µm (or better): TMG-1-T, TMG-1-PT, TMG-1-FB, TMG-1-FB1
±10µm (or better): TMG-3-L, TMG-3-FI, TMG-3-GE, TMG-3-P, TMG-3-C
Resolution:TMG-1 + TMG-3: 0.001mm
TMG-2: Switchable resolution: 0.005mm, 0.001mm and 0.0002mm (depending on measurement path)
Measuring table:∅200 mm x 40 mm made of granite
Column guide:∅30 mm made of stainless steel
Measuring system:Mahr dial gauge
Units:Optionally mm or inch
Display:LCD display
Test surface and measuring pressure:Corresponds to the respectively listed ASTM, DIN, EN and ISO standards
Battery typeCR 2032 (3V Lithium)
Output signal:RS-232C and USB
Weight:TMG-1 + TMG-2: ca. 7kg
TMG-3: ca. 8kg

Buy Now
Products

Product
Price
Quantity
136571
TMG-1-T ISO-5084 Textile Thickness Gauge
€ 2.182,00
136580
TMG-1-T1 ASTM D 1777 Option 2 Textile Thickness Gauge
€ 2.182,00
136578
TMG-1-G ISO-23529 + ASTM D 3767 Rubber Thickness Gauge
€ 1.972,00
136579
TMG-1-G1 ASTM D 3767 Rubber Thickness Gauge
€ 2.182,00
136581
TMG-1-PT DIN EN ISO 12625-3 Tissue Thickness Gauge
€ 2.182,00
136582
TMG-1-AB DIN EN 1849-2 Waterproofing Sheets Thickness Gauge
€ 2.182,00
136583
TMG-1-FB ASTM D 1777 Option 1 Fabrics Thickness Gauge
€ 2.182,00
136584
TMG-1-FB1 ASTM D 1777 Option 5 Fabrics Thickness Gauge
€ 1.893,00
136585
TMG-2-F ISO 4593, DIN 53370 Foil Thickness Gauge
€ 2.784,00
136599
TMG-3-L DIN EN ISO 2589 Leather Thickness Gauge
€ 4.075,00
136600
TMG-3-FI ASTM D 1777-Option 3 Film & Fibre Thickness Gauge
€ 3.900,00
136601
TMG-3-GE ASTM D 5199 Geosynthetics Thickness Gauge
€ 3.900,00
136602
TMG-3-P DIN EN 534 Paper & Cardboard Thickness Gauge
€ 3.791,00
136603
TMG-3-C DIN ISO 3034 Cardboard Thickness Gauge
€ 3.900,00
138189
TMG-15 ISO 2286-3 part 3 Rubber- or plastics-coated fabrics Thickness Gauge
€ 1.803,00

Accessories

Product
Price
Quantity
136576
TMG-Cert manufacturer inhouse calibration certificate for new gauge
€ 194,00
136577
TMG-DA-CERT DAkkS calibration only for the dial gauge for new gauge
€ 194,00
136605
TMG-1-SOFT Software for TMG-1 Thickness Gauge (incl. cable)
€ 384,00
136606
TMG-2-SOFT Software for TMG-2 Thickness Gauge (incl. cable)
€ 384,00
136607
TMG-3-SOFT Software for TMG-3 Thickness Gauge (incl. cable)
€ 384,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
