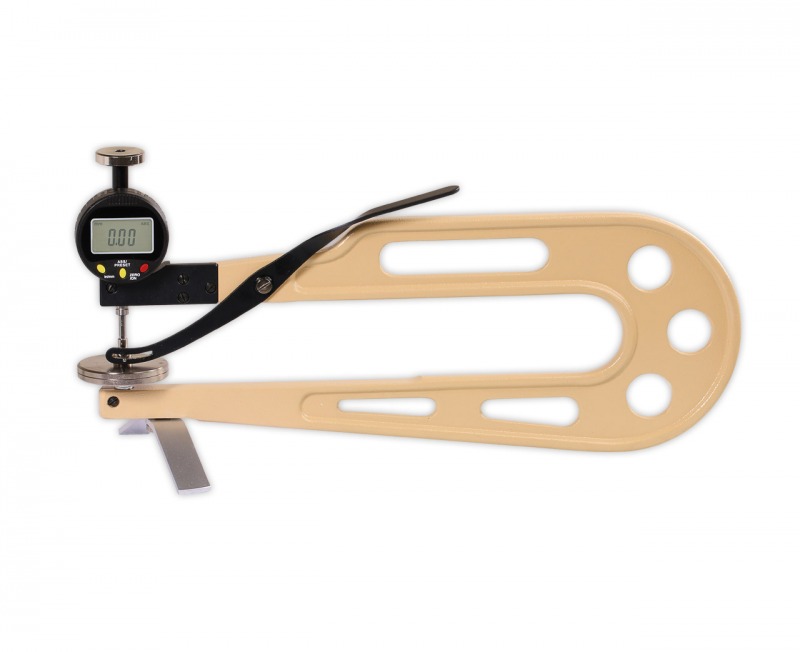

MTT Thickness Gauge


Made in GermanyThe MTT thickness gauge can be used to determine the material thickness of non-woven fabrics, textiles, felts, geomaterials, paper, floor coverings, leather, foils, etc. The instrument does not meet the DIN, EN and ISO standards. The feeler shape and the pressure are corresponding to DIN EN ISO 5084 standards. This low-cost thickness gauge is suitable for quick comparison measurements.

MTT-10-300:
measuring range: 0-10 mm
depth of jaw: 300 mm

MTT-25-300:
measuring range: 0-25 mm
depth of jaw: 300 mm


Features
  • Swing-out foot for on-table operation
  • Digital display with selectable units inch or mm
  • Measuring feeler 20 cm²
  • Zero setting by pushing a button

Available Models
Model Standard Application Feeler Ø Feeler
shape cm²
Pressure
MTT-10-300T similar to DIN EN ISO 5084 Textiles and Non-
woven textiles
50.42 20 1 kPA
MTT-10-300V similar to DIN EN ISO 9073-2 Standard fleece 56.42 25 0.5 kPA
MTT-10-300L similar to DIN 53326
(new 2589)
Leather 10 0.785 50 kPA
MTT-25-300T similar to DIN EN ISO 5084 Textiles and Non-
woven textiles
50.42 20 1 kPA
MTT-25-300V similar to DIN EN ISO 9073-2 Standard fleece 56.42 25 0.5 kPA
MTT-25-300L similar to DIN 53326
(new 2589)
Leather 10 0.785 50 kPA

Related Products

D-2000 Manual Precision Material Thickness Gauge


  • Separate measuring block, encased against outside external impacts, for highest accuracy and repeatability
  • Switch-selectable measuring units mm / inch

More details

D-2000 Manual Precision Material Thickness Gauge

Specifications
Measuring Range0-10 mm / 0-25 mm
Resolution0.01 mm
Depth of Jaws300 mm
DisplayLCD 4 Digit, 8 mm tall
Pressure1 kPa (gauge, feeler, weight)
Feeler shape50.5 mm Ø = 20 cm²
Dimensions400 x 65 x 200 (L x W x H)
Weight1245 gr

Buy Now
Products

Product
Price
Quantity
133659
MTT-10-300-L Thickness Gauge for Leather with 300 mm Jaw Depth
€ 449,00
133660
MTT-10-300-V Thickness Gauge for Fleece
€ 448,00
133661
MTT-10-300-T Thickness Gauge for Textile
€ 446,00
134029
MTT-25-300-L Thickness Gauge for Leather
€ 457,00
137010
MTT-25-300-V Thickness Gauge for Fleece (25mm measuring range)
€ 456,00
134031
MTT-25-300-T Thickness Gauge for Textile
€ 454,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
