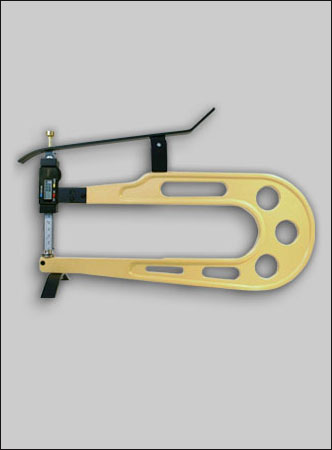

MDM-830-1 Digital Thickness Gauge | MDM-830-1

Made in GermanyThe MDM-830-1 digital thickness gauge measures the material thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, etc.

Due to its self-closing mechanism, the MDM-830-1 ensures highest accuracy and resolution of 0.01 mm throughout the measurement range from 0 to 50 mm.

  • Thickness gauge with RS-232 output
  • Opening by lever - self closing
  • Button push for zero setting
  • Spring force measurement
  • User selectable measurement units
  • Calibration certificate included

Available models
Model:Range:Resolution:Jaw depth:
MDM-815-10-50 mm0,01 mm150 mm
MDM-820-10-50 mm0,01 mm200 mm
MDM-830-10-50 mm0,01 mm300 mm
MDM-8350-75 mm0,01 mm350 mm
MDM-8400-100 mm0,01 mm400 mm

Available feelers
When ordering the MDM-830-1, please indicate your desired feeler, for example "MDM-830-1-B" for the gauge with feeler "B". Only your desired feeler shape is included.

Resolution:0.01 mm
Measuring range:50 mm
Depth of jaw:300 mm
Measuring pressure:2 N
Measuring principle:Self closing
Feeler shape:A/B/C/D/E
Display:LCD 7 mm high
Measuring system:Sylvac
Weight, net (gross):1000 g (1050 g)

Buy Now

MDM-830-1-B Thickness Gauge Range 50mm - 300mm depth (diameter feeler 10mm)
€ 418,00
MDM-830-1-C Thickness Gauge Range 50mm - 300mm depth (diameter feeler 25mm)
€ 418,00
MDM-830-1-E Thickness Gauge Range 50mm - 300mm depth (diameter feeler 16mm)
€ 418,00
MDM-830-1-G Thickness Gauge Range 50mm - 300mm depth (diameter feeler G 1.5mm)
€ 418,00
MDM-830-1-H Thickness Gauge Range 50mm - 300mm depth (diameter feeler 30mm)
€ 427,00
MDM-830-1-M Thickness Gauge Range 50mm - 300mm depth (diameter feeler 20mm)
€ 418,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
