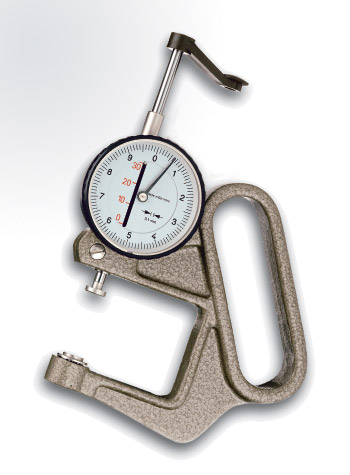

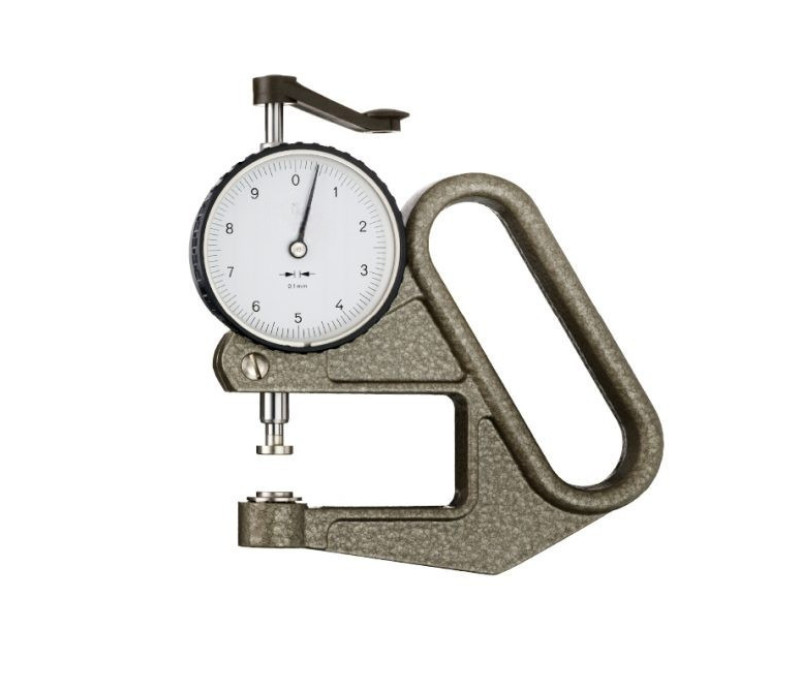

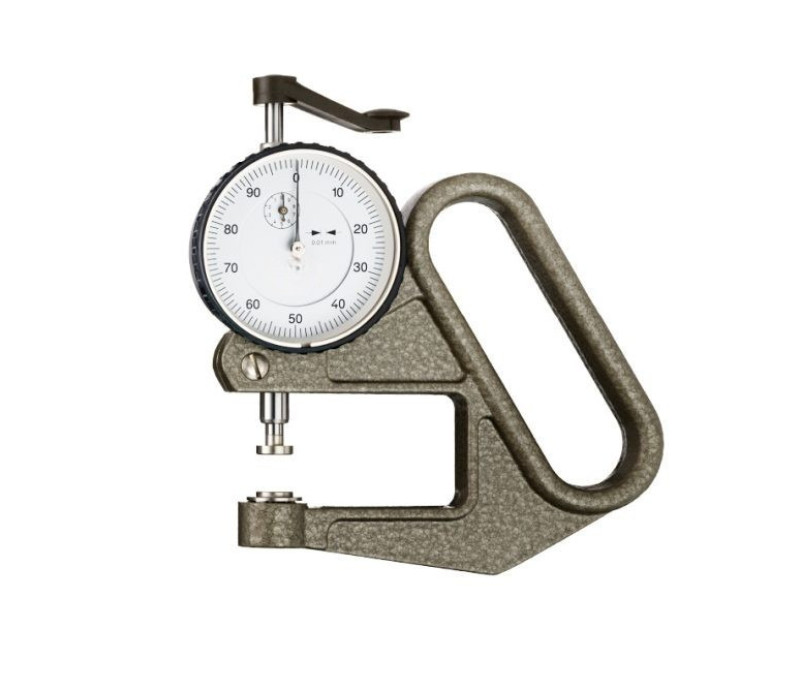

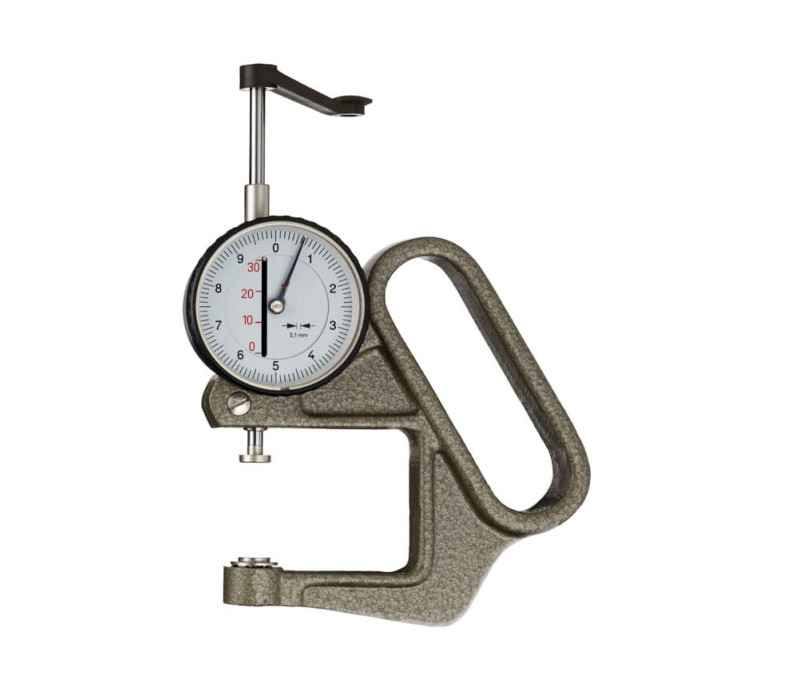

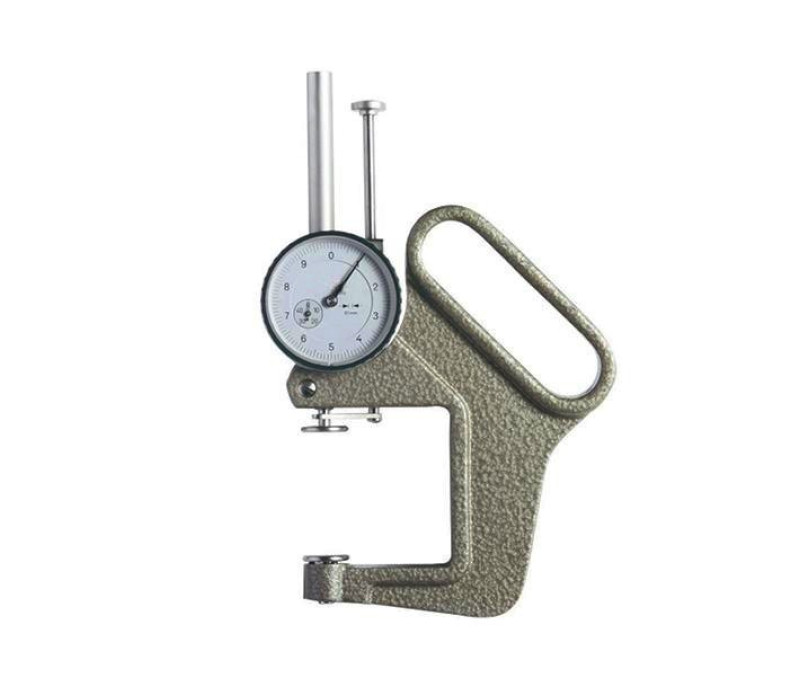

K-50 Thickness Gauge

Made in GermanyThickness gauges are used for measuring the thickness of leather, textile, cardboard, felt, rubber, sheet metal, foils, plywood, plastic parts of all kind, etc.
Depending on the application, the following points are important for selecting the best model:
- Max. resolution required
- Measuring range
- Depth of jaw
- Shape of feelers
- Measuring principle
The aluminum housing is lightweight and rugged. It can be easily zeroed by turning the outer knurled ring of the scale.

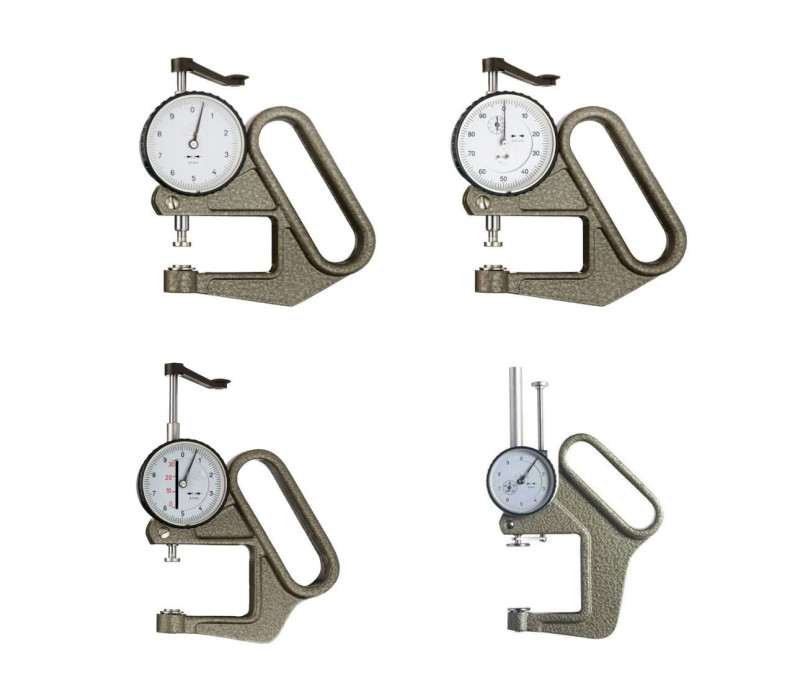

The K-50 model is available with 5 different feelers, which can be found below. Measurement by manual pressure by plunger

  • Measurement by manual pressure by plunger
  • Resolution 0.1 mm
  • Opening by spring force - self opening

Feeler Shape

To order, please indicate the desired feeler, e.g. K-50-B for gauge with feeler >b<. This means that NOT all feelers are included in the package!


Feeler: A

For rubber, felt*, soft materials*, nonwovens*, etc.

*Meets no DIN EN ISO standard Customized feeler type >a< with diameter 30 to 56 mm are available on request at extra charge
Feeler: B
For rubber, felt*, soft materials*, nonwovens*, etc.

*Meets no DIN EN ISO standard

Feeler: C

For soft leather, cardboard, paper, foils, etc.

Feeler: D

For hard leather, plywood, fiberboard, etc.


Feeler: E
For sheet metal, etc.



Resolution:0.1 mm
Measuring range:10 mm
Depth of jaw:50 mm
Scale diameter:58 mm
Feeler shape:a,b,c,d or e
Spring force:Self opening (K-50 Series)
Measuring Spring:0.5 N (KA-50 Series)
Weight, net:300 g

Buy Now

K-50-A Mechanical Thickness Gauge
€ 125,00
K-50-B Mechanical Thickness Gauge
€ 125,00
K-50-D Mechanical Thickness Gauge
€ 125,00
K-50-C Mechanical Thickness Gauge
€ 125,00
KA-50-C Mechanical Thickness Gauge With Lifting Device
€ 125,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
