Thickness gauges are used for measuring the thickness of leather, textile, cardboard, felt, rubber, sheet metal, foils, plywood, plastic parts of all kind, etc.
Depending on the application, the following points are important for selecting the best model:
- Max. resolution required
- Measuring range
- Depth of jaw
- Shape of feelers
- Measuring principle

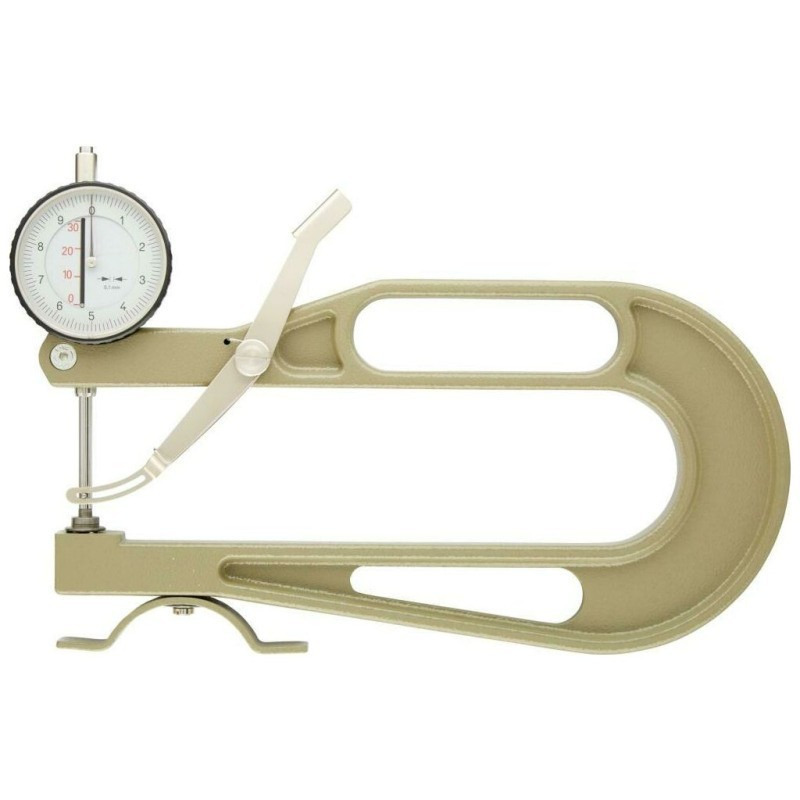

The aluminium housing is lightweight and rugged. It can be easily zeroed by turning the outer knurled ring of the scale.
The K-200 model is available with 5 different feelers, wich can be found below. Opening by lifting device (lever) - self closing.
Operating by lifting device - self closing
Resolution 0.1 mm
Swing out foot for on-table operation
To order, please indicate the desired feeler, e.g. K-200-B for gauge with feeler >b<. This means that NOT all feelers are included in the package!
For rubber, felt*, soft materials*, non wovens*, etc.
*Meets no DIN EN ISO standard Customized feeler type >a< with diameter 30 to 56 mm are available on request at extra charge Feeler: B For rubber, felt*, soft materials*, non wovens*, etc.
