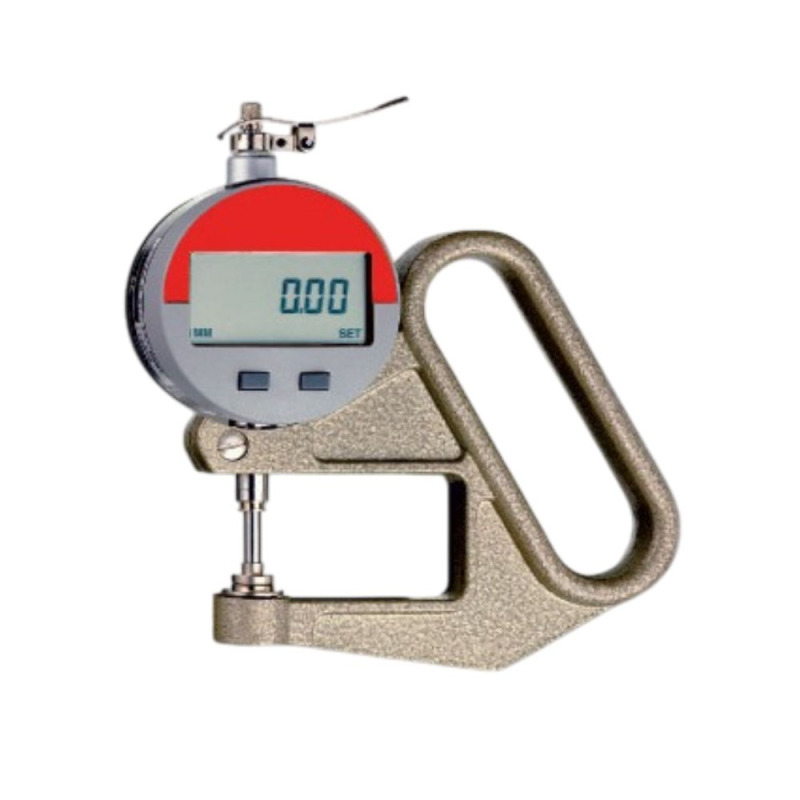

JD-50 Digital Thickness Gauge


Made in GermanyThe JD-50 digital thickness gauge combines high-precision measurement with a large, easy-to-read LCD display, making it ideal for measuring leather, textiles, foils, cardboard, felt, rubber, plastic, and more. Its lightweight aluminium frame and self-closing mechanism ensure both portability and stability during use.

The JD-50 allows users to toggle between metric and imperial units, and is available with five different feeler types to suit various applications. Measurement is performed by spring force and operated via a lifting lever.

Key Features:

  • Lever-operated opening with self-closing mechanism: Ensures convenient handling and secure positioning.
  • High-resolution accuracy: 0.01 mm (0.001 inch) for demanding applications.
  • Clear LCD display: Easy reading of measurements, even in low light environments.
  • User-selectable units: mm or inches to match your workflow.
  • RS232 data output: For digital data collection (optional cable required).
  • Dial gauge model: Sylvac S 229 integrated for reliability.



Main Benefits:

  • Lightweight and ergonomic: Ideal for handheld use in the lab or on the shop floor.
  • Adaptable: Compatible with five interchangeable feelers for versatile applications.
  • Data-ready: Enables direct output of measurements for analysis and traceability.



Contact us for more information about the JD-50 or to request personalised assistance.


Features

  • Jaw depth: 50 mm.
  • Measuring range: up to 12.5 mm.

Feeler Types

To place your order, please indicate the desired feeler, for example: JD-50-B for a gauge with feeler B. This means that NOT all feelers are included in the package!


Simple controller interface

Feeler: A

For rubber, felt*, soft materials*, non-wovens*, etc.
*Does not meet any DIN EN ISO standards. Custom type A feelers with diameters from 30 to 56 mm available on request at additional cost.

Modular

Feeler: B

For rubber, felt*, soft materials*, non-wovens*, etc.
*Does not meet any DIN EN ISO standards.

Limit switches

Feeler: C

For soft leather, cardboard, paper, films, etc.

Seamless sensor

Feeler: D

For hard leather, plywood, fibre boards, etc.

Easy to service electronics

Feeler: E

For sheet metal, etc.


Available Accessory: Table Stand for Thickness Gauges
Table stand

This table stand allows handheld thickness gauges to be converted into bench top units, improving stability and ease of use.

table stand dimensions

Dimensions in mm


Downloads

Specifications

Resolution:0.01 mm / 0.001 inch
Measuring range:0 - 10 mm / 0.4 inch
Depth of jaw:50 mm
Display:LCD 6 digit, 8.5 mm high
Measuring principle:Capacitive (Sylvac)
Measuring pressure:< 1.4 N
Feeler shape:a,b,c,d or e
Lifting device:Operating by lifting device - self closing
Data output:RS 232, optical coupling
Power supply:Battery, 3 V Lithium, CR 2032
Temperature range:10 - 45°C
Weight, net:300 g

Buy Now

Products

Product
Price
Quantity
133422
JD-50-A Thickness Gauge
€ 593,00
126025
JD-50-B Thickness Gauge
€ 593,00
126026
JD-50-C Thickness Gauge
€ 593,00
130460
JD-50-D Thickness Gauge
€ 593,00
133008
JD-50-E Thickness Gauge
€ 593,00

Accessories

Product
Price
Quantity
134582
DCPRMD-USB Cable For Dial Thickness Gauge to USB
€ 164,00
126360
FD J-CC Footpedal
€ 424,00
126836
Table Stand for Thickness Gauge
€ 81,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available: 1 - 3 days, Delivery time: 1 - 3 weeks, special order request
